FVAE2884X*B200

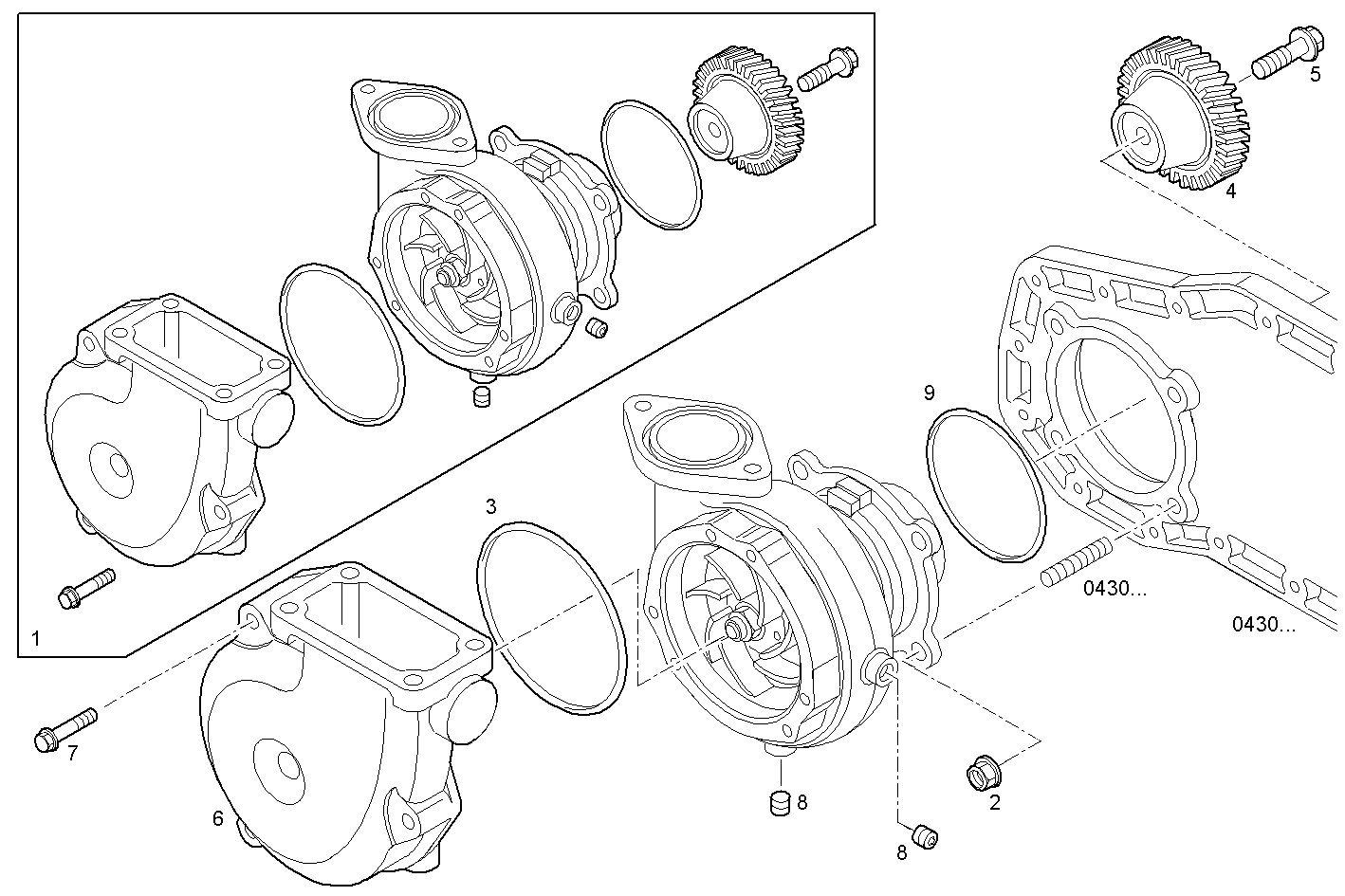

3201.016 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504116282 | WATER PUMP ASSY |
| 2 | 17965835 | HEXAGON NUT |
| 3 | 17292781 | O-RING Ø142,50X3,53 MM |
| 4 | 504103428 | GEAR |
| 5 | 504103480 | SCREW |
| 6 | 4782578 | COVER |
| 7 | 16587724 | HEXAGON BOLT M10X55 MM |
| 8 | 16997211 | LOCK PLUG M12X1,5 |
| 9 | 17292381 | O-RING Ø129,8 MM SP=3,53 MM |
