FVAE2885X*A100

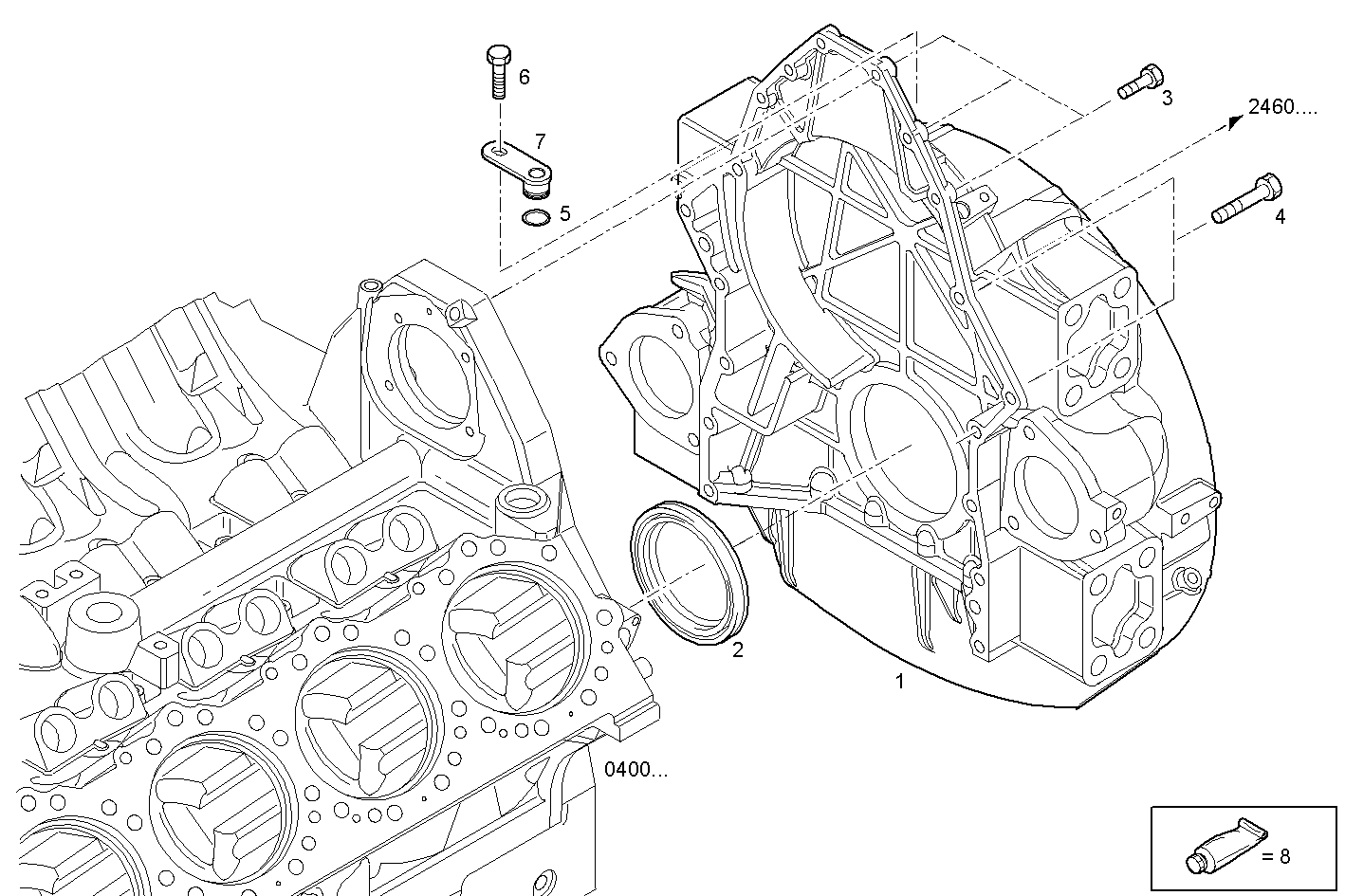

0435.018 FLYWHEEL HOUSING
| Item | Part number | Description |
|---|---|---|
| 1 | 504121828 | FLYWHEEL HOUSING |
| 2 | 504036095 | SHAFT SEAL Ø135X160X13/14 |
| 3 | 16677934 | HEXAGON BOLT M12X35 MM |
| 4 | 16681334 | HEXAGON BOLT M14X90 |
| 5 | 17288281 | O-RING Ø18,64X3,53 MM |
| 6 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 7 | 504135738 | COVER |
| 8 | 2992504 | ADHESIVE/STICKER LOCTITE |
