FVQE2883X*A200

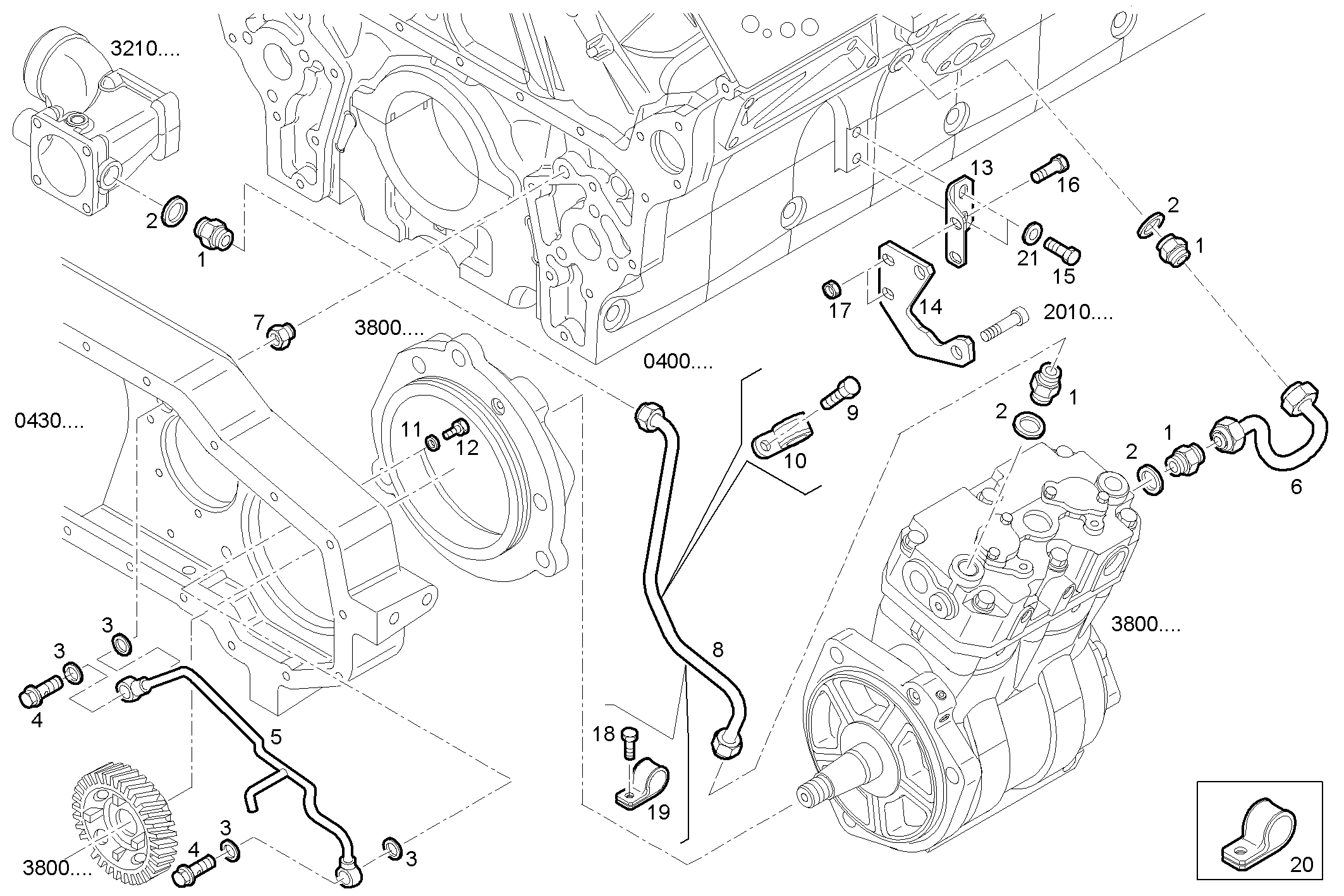

3800.033/02 AIR COMPRESSOR

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 41031571 THREADED UNION M18x1,5 - M22X1,5
2 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
3 98474305 WASHER Ø10X17 MM SP=2,3
4 4864079 SCREW CONNECTOR M10X1
5 504050100 OIL LINE
6 504051076 WATER PIPE
7 504049545 THREADED UNION M10X1,5
8 504065765 WATER PIPE
9 16597925 HEXAGON BOLT M8X14 MM
10 17316690 FASTENING BRACKET Ø20,5 MM
11 17094724 WASHER Ø6X12 MM
12 16596924 HEXAGON BOLT M6X10 MM
13 504079201 RETAINER
14 504079200 RETAINER
15 16673535 HEXAGON BOLT M8X16 MM
16 16673635 HEXAGON BOLT M8X1.25X20
17 16750235 HEXAGON NUT M8
19 17314590 RETAINER Ø6 MM
20 17316792 CLIP
21 17094924 WASHER Ø8X16 MM
