FVQE2883X*A200

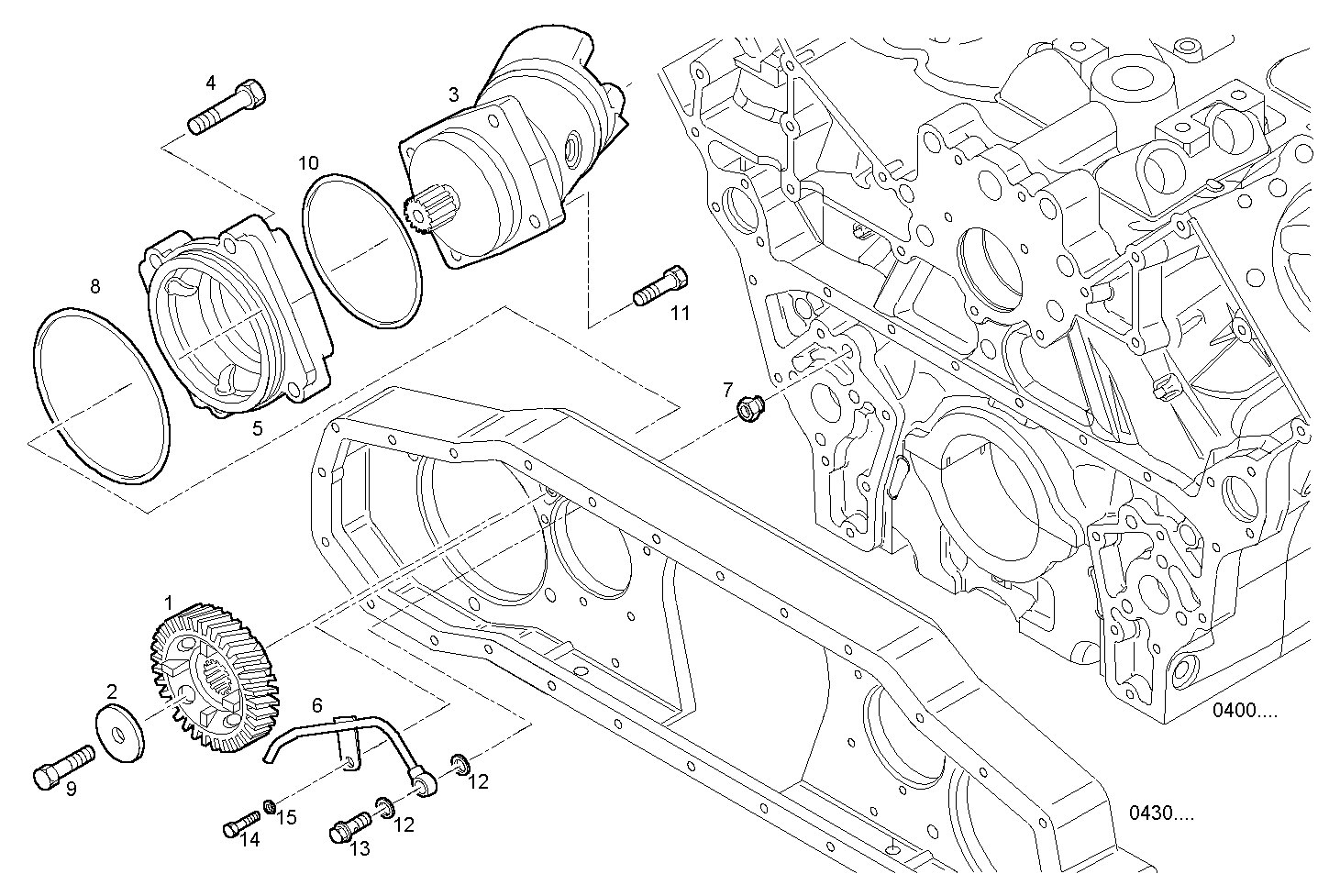

4270.000 HYDRAULIC PUMP
| Item |
Part number |
Description |
|
1 |
504040868 |
GEAR |
|
2 |
504050433 |
SPACING BAR |
|
3 |
504047128 |
HYDRAULIC PUMP |
|
4 |
16588225 |
HEXAGON BOLT M12X40 MM |
|
5 |
504060463 |
SPACING BAR |
|
6 |
504053713 |
PIPE |
|
7 |
504049545 |
THREADED UNION M10X1,5 |
|
8 |
17292581 |
O-RING Ø3,53X136,1 MM |
|
9 |
16675735 |
HEXAGON BOLT M10X25 MM |
|
10 |
17291581 |
O-RING Ø104,37X3,53 MM |
|
11 |
16587325 |
HEXAGON BOLT M10X35 MM |
|
12 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
13 |
4864079 |
SCREW CONNECTOR M10X1 |
|
14 |
16596924 |
HEXAGON BOLT M6X10 MM |
|
15 |
17094724 |
WASHER Ø6X12 MM |
