FVQE2883X*A201

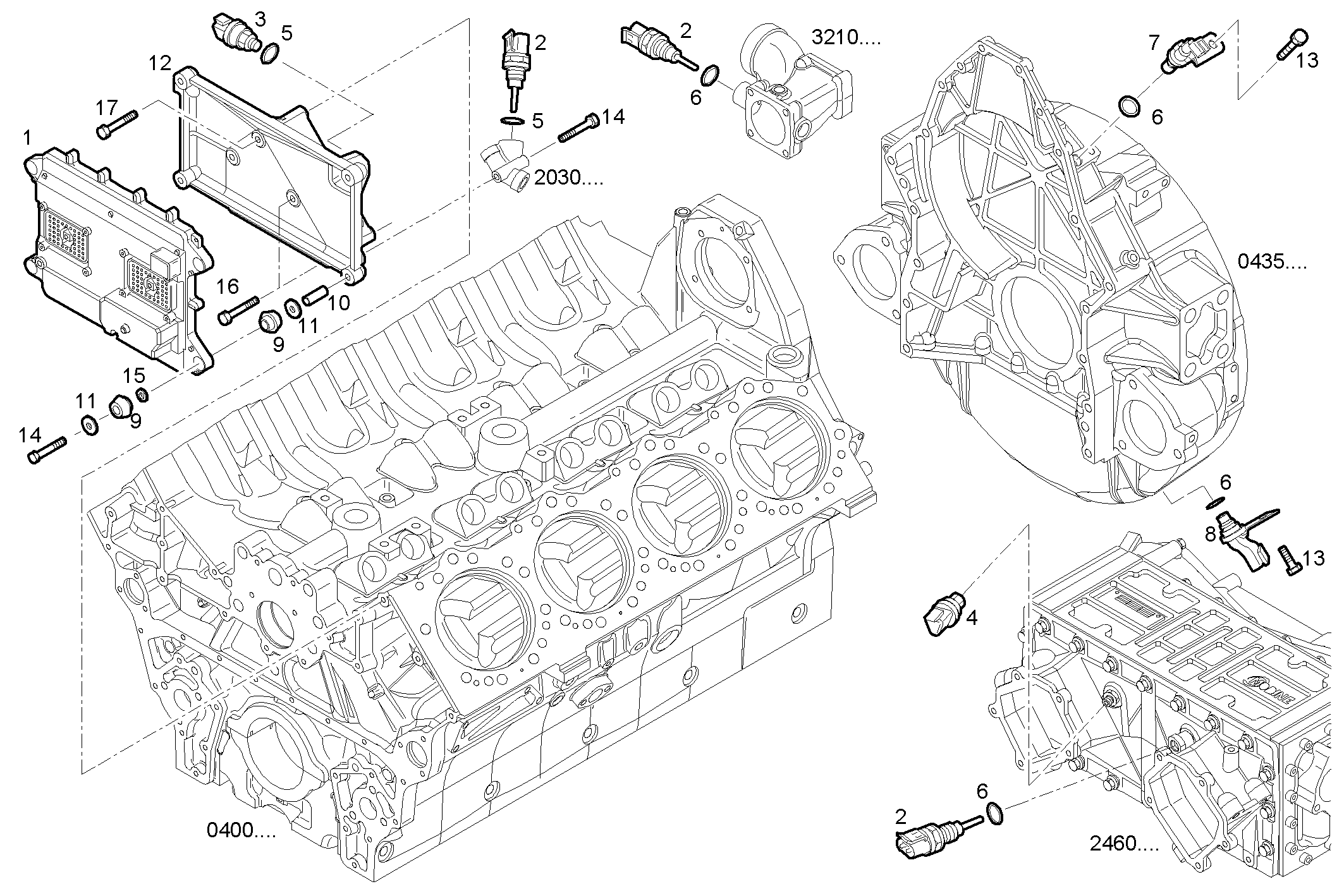

1700.012 ELECTRONIC CONTROL UNIT

Iveco/FPT ELECTRONIC CONTROL UNIT

Item Part number Description
1 504100097 ELECTR.CONTR.UNIT
2 504046224 TEMP. TRANSMITTER 3/4"
3 504046895 TRANSMITTER Atmospheric pressure
4 504046807 TRANSMITTER Air pressure
5 504047906 SEAL GASKET
6 504046225 SEAL GASKET
7 504037536 TRANSMITTER Impulse
8 504037537 TRANSMITTER Impulse
9 504050286 RUBBER PAD
10 504050285 SPACING BAR
11 504050287 WASHER
12 504065616 SUPPORT
13 16597925 HEXAGON BOLT M8X14 MM
14 16586825 HEXAGON BOLT M8X1.25X45 MM
15 17281681 O-RING Ø13,9 MM SP=2,6 MM
16 16593125 HEXAGON BOLT M10X100 MM
17 16598325 HEXAGON BOLT M8X100 MM
