Catalogue Menu
FVQE2883X*A201

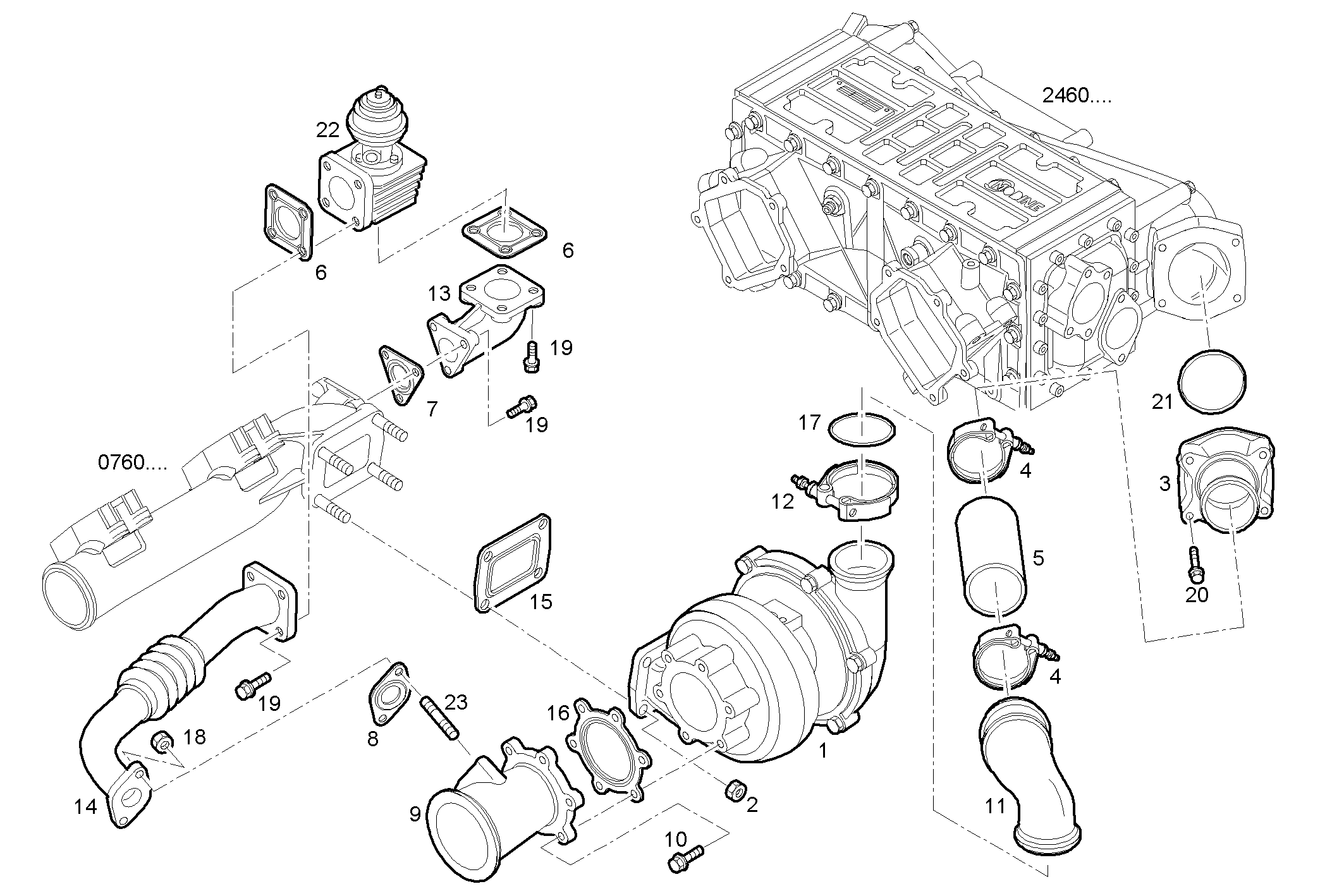

2400.192/01 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504064262 | TURBOCHARGER LEFT |
| 2 | 99463139 | HEXAGON NUT M10X1,5 |
| 3 | 504048805 | FLANGE |
| 4 | 504104715 | RUBBER SLEEVE |
| 5 | 17769091 | CLIP |
| 6 | 98428395 | FLAT ENGINE GASKET |
| 7 | 504054952 | GASKET |
| 8 | 504054953 | GASKET |
| 9 | 504061998 | EXHAUST PIPE |
| 10 | 99453959 | SCREW |
| 11 | 504089153 | AIR PIPE/DUCT |
| 12 | 4800661 | CLIP Ø 75 mm. |
| 13 | 504058241 | CONNECTION PIPE |
| 14 | 504063717 | PIPE |
| 15 | 504103435 | GASKET |
| 16 | 504056723 | GASKET |
| 17 | 17284481 | O-RING Ø58,4 MM SP=2,6 MM [from ...] |
| 18 | 16506815 | HEXAGON NUT |
| 19 | 16586477 | HEXAGON BOLT |
| 20 | 16673835 | HEXAGON BOLT M8X30 MM |
| 21 | 17291381 | O-RING Ø98,02 MM SP=3,53 MM |
| 22 | 504053228 | VALVE (WASTE GATE) |
| 23 | 16729434 | STUD M8X25 MM |
