FVQE2883X*A202

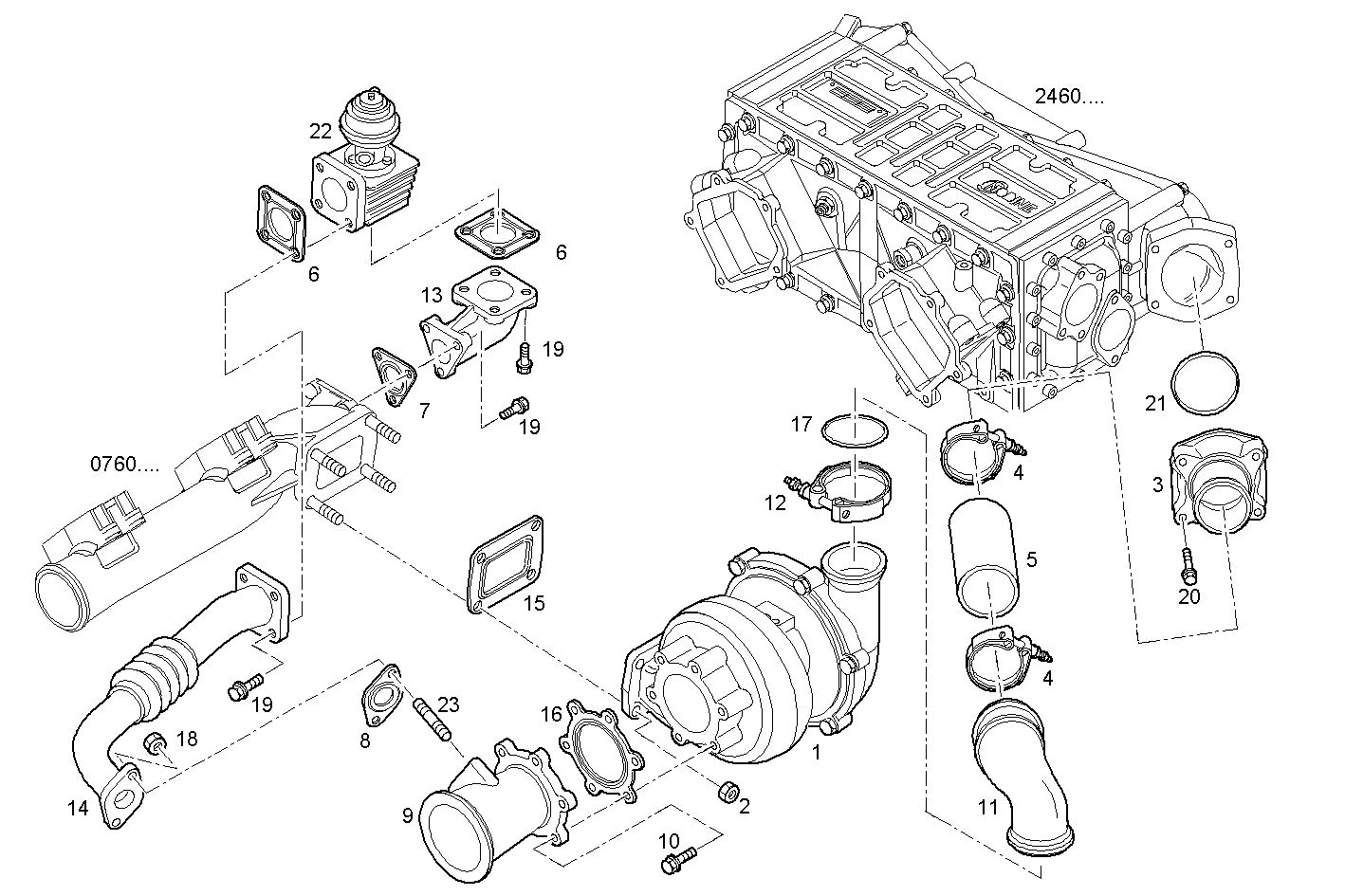

2400.264/01 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 504064262 TURBOCHARGER LEFT
2 99463139 HEXAGON NUT M10X1,5
3 504048805 FLANGE
4 504104715 RUBBER SLEEVE
5 17769091 CLIP
6 98428395 FLAT ENGINE GASKET
7 504054952 GASKET
8 504054953 GASKET
9 504061998 EXHAUST PIPE
10 99453959 SCREW
11 504089153 AIR PIPE/DUCT
12 4800661 CLIP Ø 75 mm.
13 504058241 CONNECTION PIPE
14 504063717 PIPE
15 504103435 GASKET
16 504056723 GASKET
17 17284481 O-RING Ø58,4 MM SP=2,6 MM [from ...]
18 16506815 HEXAGON NUT
19 16586477 HEXAGON BOLT
20 16586725 HEXAGON BOLT M8X1.25X40 MM
21 17291381 O-RING Ø98,02 MM SP=3,53 MM
22 504053228 VALVE (WASTE GATE)
23 16729434 STUD M8X25 MM
