FVQE2883X*A202

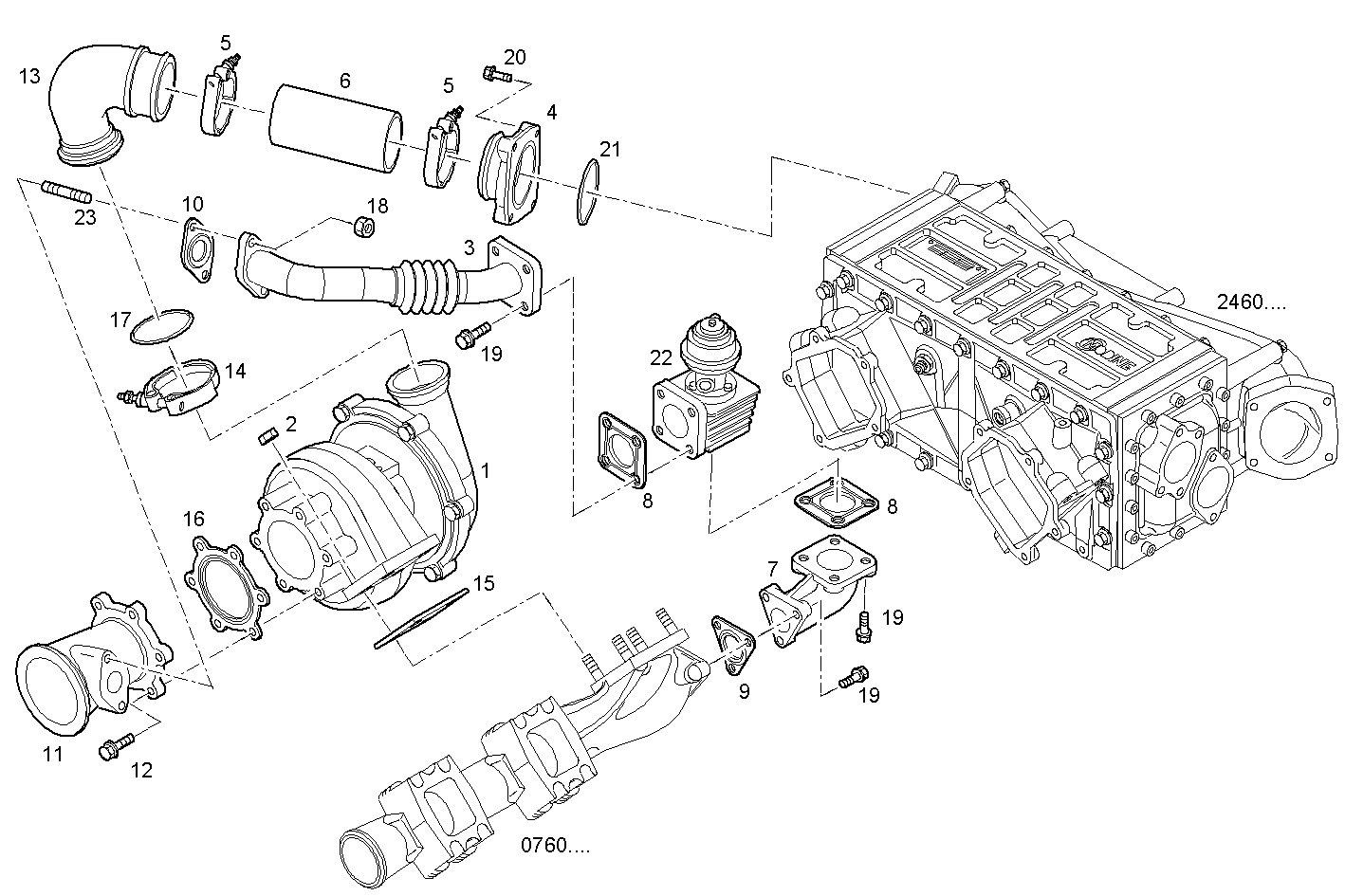

2400.264/02 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 504064263 TURBOCHARGER RIGHT
2 99463139 HEXAGON NUT M10X1,5
3 504076167 LINE
4 504048805 FLANGE
5 17769091 CLIP
6 504104715 RUBBER SLEEVE
7 504058241 CONNECTION PIPE
8 98428395 FLAT ENGINE GASKET
9 504054952 GASKET
10 504054953 GASKET
11 504061998 EXHAUST PIPE
12 99453959 SCREW
13 504089154 PIPE
14 4800661 CLIP Ø 75 mm.
15 504103435 GASKET
16 504056723 GASKET
17 17284481 O-RING Ø58,4 MM SP=2,6 MM [from ...]
18 16506815 HEXAGON NUT
19 16586477 HEXAGON BOLT
20 16586725 HEXAGON BOLT M8X1.25X40 MM
21 17291381 O-RING Ø98,02 MM SP=3,53 MM
22 504053228 VALVE (WASTE GATE)
23 16729434 STUD M8X25 MM
