FVQE2883X*A202

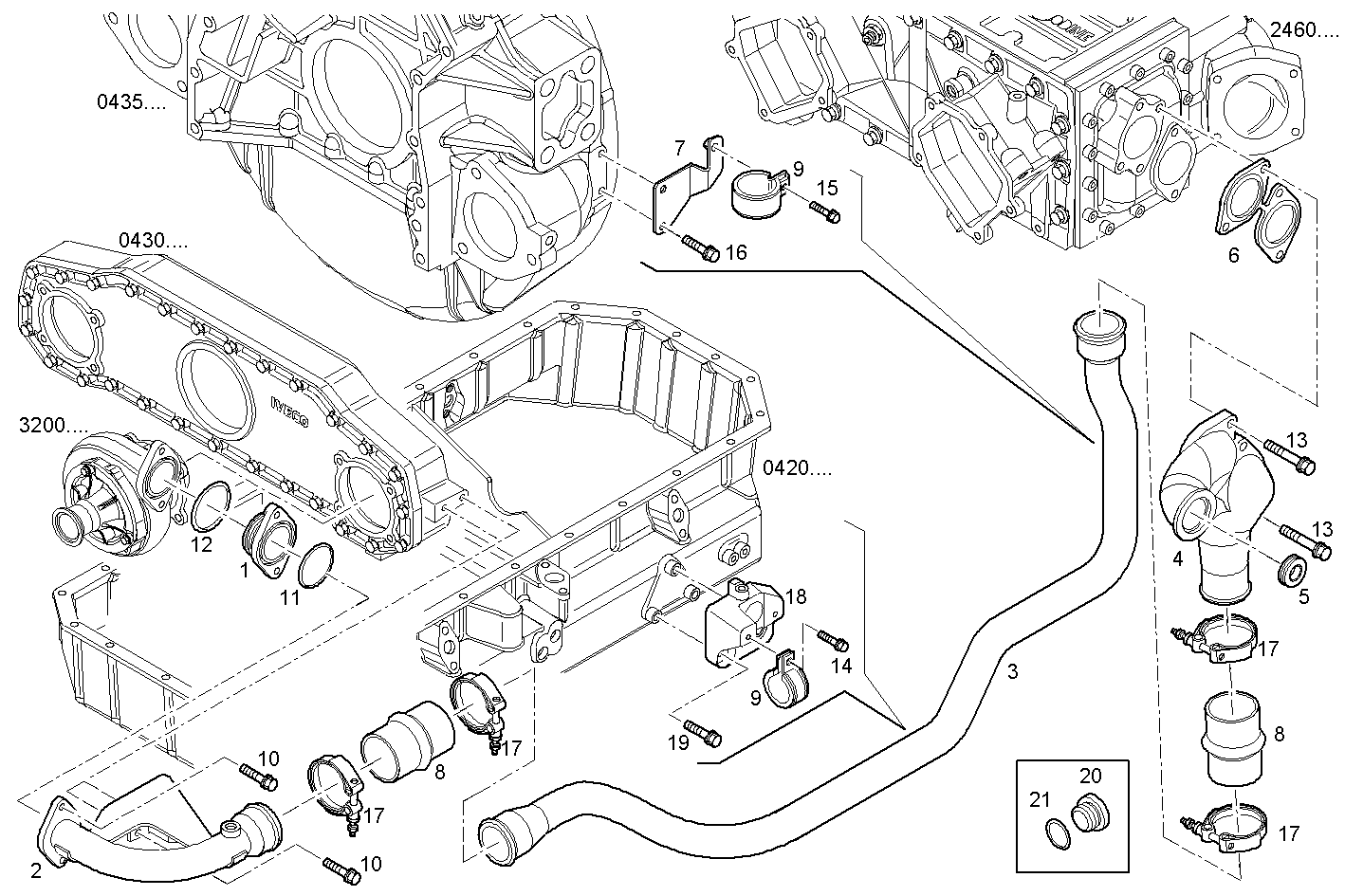

3210.293 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504055352 | WATER PIPE |
| 2 | 504092356 | WATER PIPE |
| 3 | 504077690 | WATER PIPE |
| 4 | 504092352 | WATER PIPE |
| 5 | 504050297 | THREADED PLUG M35X1,5 |
| 6 | 504074188 | FLAT ENGINE GASKET |
| 7 | 504074315 | SUPPORT |
| 8 | 93165331 | WATER HOSE Ø60 MM |
| 9 | 504112724 | PIPE CLIP |
| 10 | 16673735 | HEXAGON BOLT M8X25 MM |
| 11 | 17290581 | O-RING Ø72,63X3,53 MM |
| 12 | 17296480 | O-RING Ø5,33X69,21 MM |
| 13 | 16592925 | HEXAGON BOLT M10X80 MM |
| 14 | 16673835 | HEXAGON BOLT M8X30 MM |
| 15 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 16 | 16597925 | HEXAGON BOLT M8X14 MM |
| 17 | 41042200 | CLIP Ø50-70 MM |
| 18 | 504074381 | SUPPORT |
| 19 | 16587425 | HEXAGON BOLT M10X40 MM |
| 20 | 16992115 | THREADED PLUG M10X1 |
| 21 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
