FVQE2883Z*C200

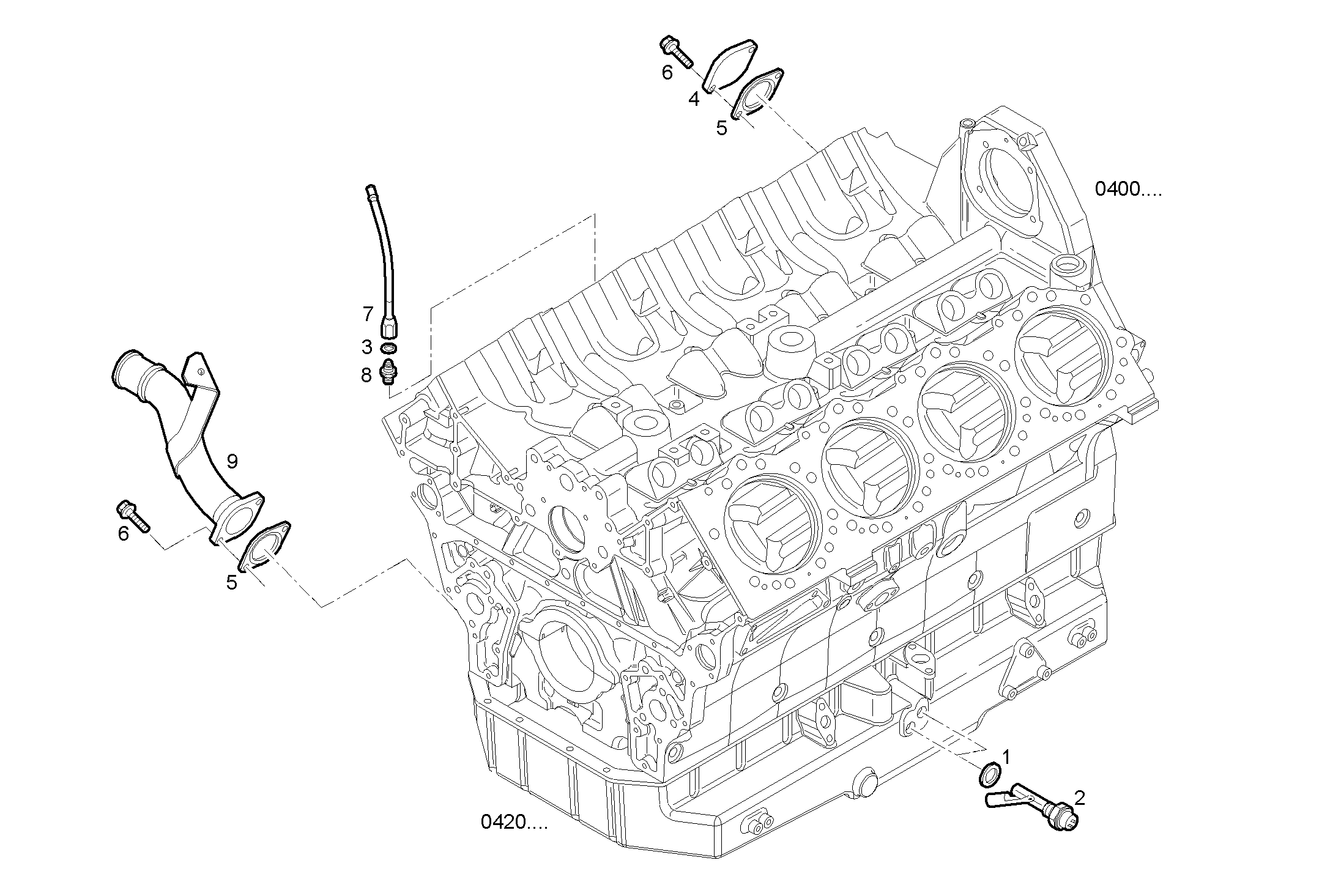

2700.070 OIL DIPSTICK & FILLER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 17281981 | O-RING Ø18,7 MM SP=2,6 MM |
| 2 | 504055244 | SENSOR |
| 3 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
| 4 | 504069978 | COVER |
| 5 | 504064628 | GASKET |
| 6 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 7 | 504101883 | OIL LEVEL TUBE |
| 8 | 504101284 | PIPE SOCKET |
| 9 | 504085911 | OIL FILLER PIPE |
