FVQE2883Z*C200

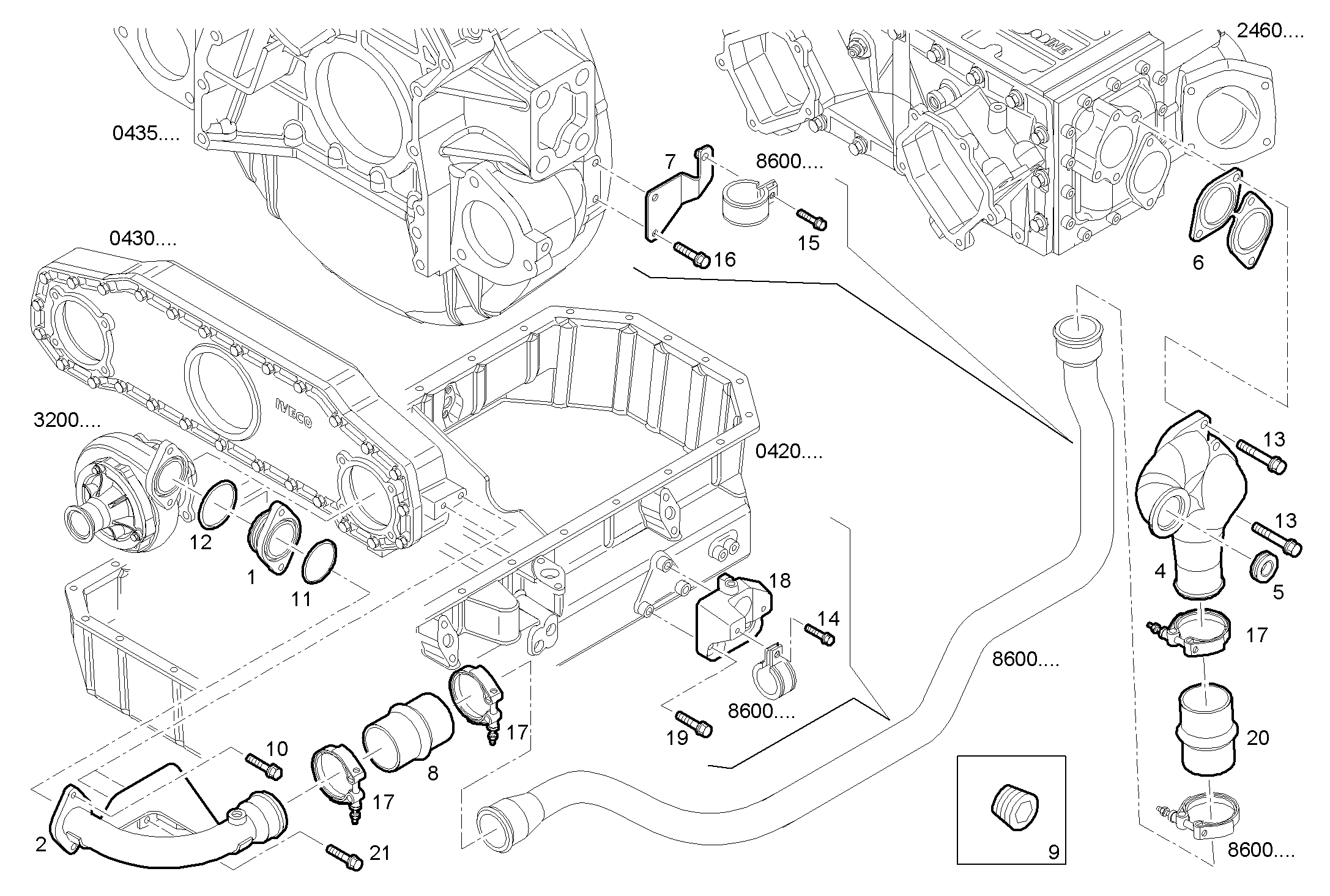

3230.070 WATER PIPE
| Item |
Part number |
Description |
|
1 |
504055352 |
WATER PIPE |
|
2 |
504092356 |
WATER PIPE |
|
3 |
2992504 |
ADHESIVE/STICKER LOCTITE |
|
4 |
504345394 |
WATER PIPE |
|
5 |
504050297 |
THREADED PLUG M35X1,5 |
|
6 |
504074188 |
FLAT ENGINE GASKET |
|
7 |
504074315 |
SUPPORT |
|
8 |
93165331 |
WATER HOSE Ø60 MM |
|
9 |
16994911 |
LOCK PLUG M24 |
|
10 |
16673835 |
HEXAGON BOLT M8X30 MM |
|
11 |
17290581 |
O-RING Ø72,63X3,53 MM |
|
12 |
17296480 |
O-RING Ø5,33X69,21 MM |
|
13 |
16592925 |
HEXAGON BOLT M10X80 MM |
|
14 |
16586424 |
HEXAGON BOLT M8X25 MM |
|
15 |
16673635 |
HEXAGON BOLT M8X1.25X20 |
|
16 |
16597925 |
HEXAGON BOLT M8X14 MM |
|
17 |
41042200 |
CLIP Ø50-70 MM |
|
18 |
504074381 |
SUPPORT |
|
19 |
16587425 |
HEXAGON BOLT M10X40 MM |
|
20 |
504266676 |
WATER HOSE |
|
21 |
16675835 |
HEXAGON BOLT M10X30 MM |
