FVQE2883Z*C200

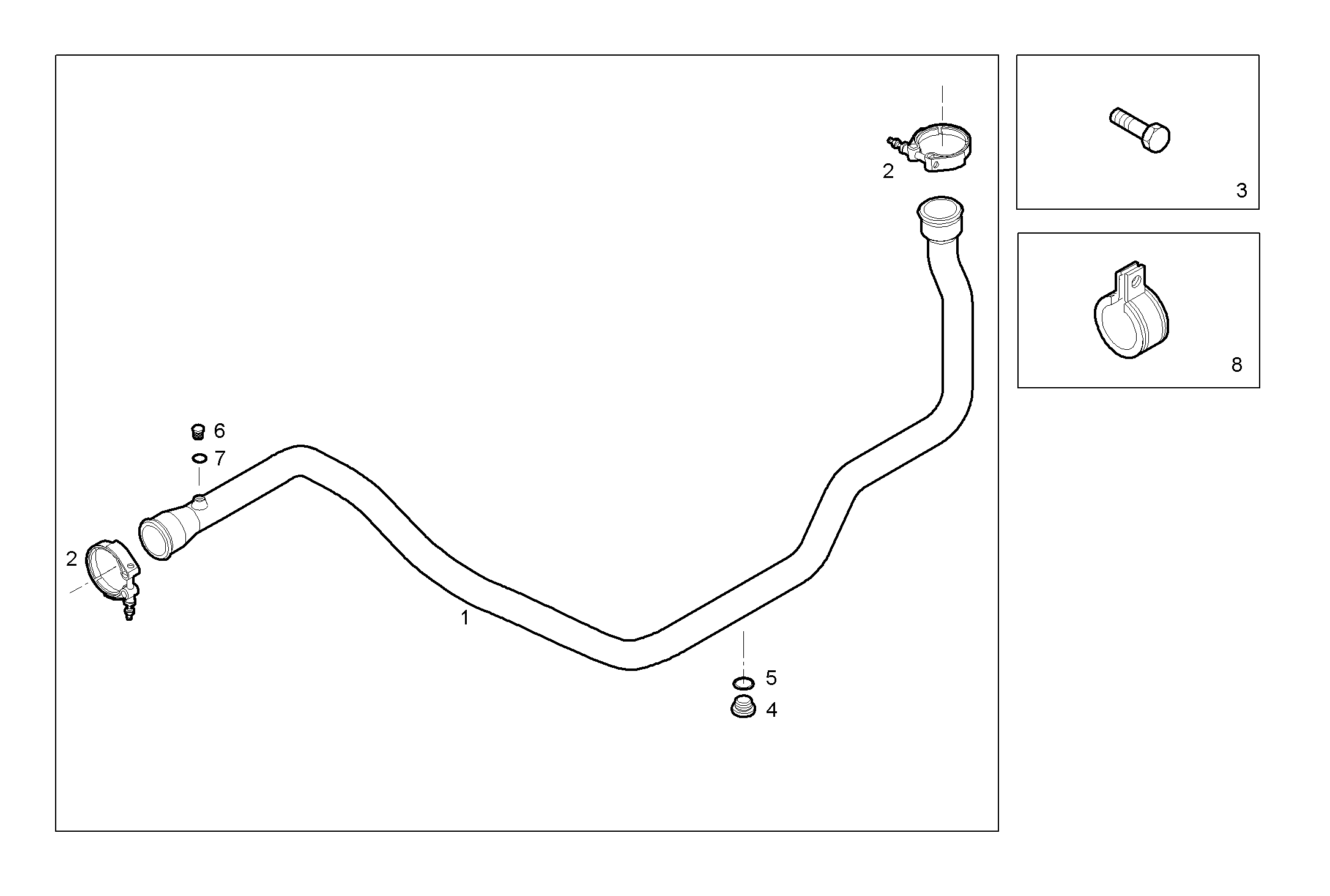

8600.127/07 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504369568 | WATER PIPE |
| 2 | 504112724 | PIPE CLIP |
| 3 | 16587325 | HEXAGON BOLT M10X35 MM |
| 4 | 16992415 | THREADED PLUG M16X1,5 |
| 5 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 6 | 16992211 | THREADED PLUG M12X1,5 |
| 7 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 8 | 41042200 | CLIP Ø50-70 MM |
