FVQE2883Z*C200

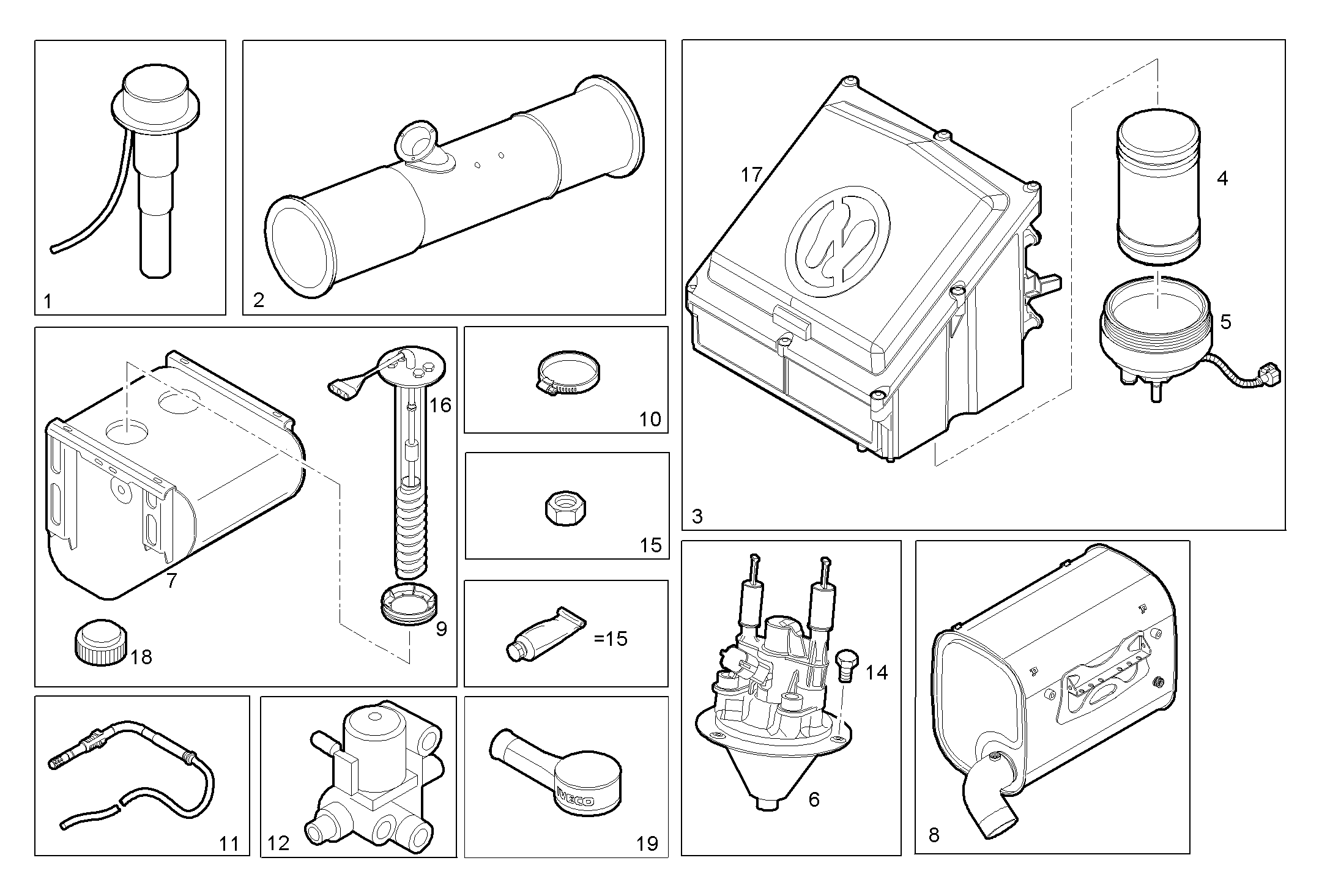

8693.003/01 AFTER TREATMENT-PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 504232725 | CONTROLL DEVICE |
| 2 | 504275365 | EXHAUST PIPE |
| 3 | 504193263 | PUMP ASSY |
| 4 | 42555073 | FILTER |
| 5 | 42556541 | FILTER COVER |
| 6 | 504193284 | GREASE METER.UNIT |
| 7 | 504267148 | TANK |
| 8 | 504340765 | SILENCER |
| 9 | 41296443 | FLANGE |
| 10 | 41201881 | CLIP ø 142 mm. |
| 11 | 504095152 | TEMP. TRANSMITTER |
| 12 | 41241093 | CONTROL VALVE |
| 13 | 2992504 | ADHESIVE/STICKER LOCTITE |
| 14 | 16689624 | HEXAGON BOLT M6X40 MM (8.8) |
| 15 | 500322677 | HEXAGON NUT M8 |
| 16 | 41299331 | INDICATOR |
| 17 | 504352774 | PUMP |
| 18 | 500025779 | LOCKABLE FUEL CAP |
| 19 | 504371875 | PROTECTION |
