GE7450Si15.05A905

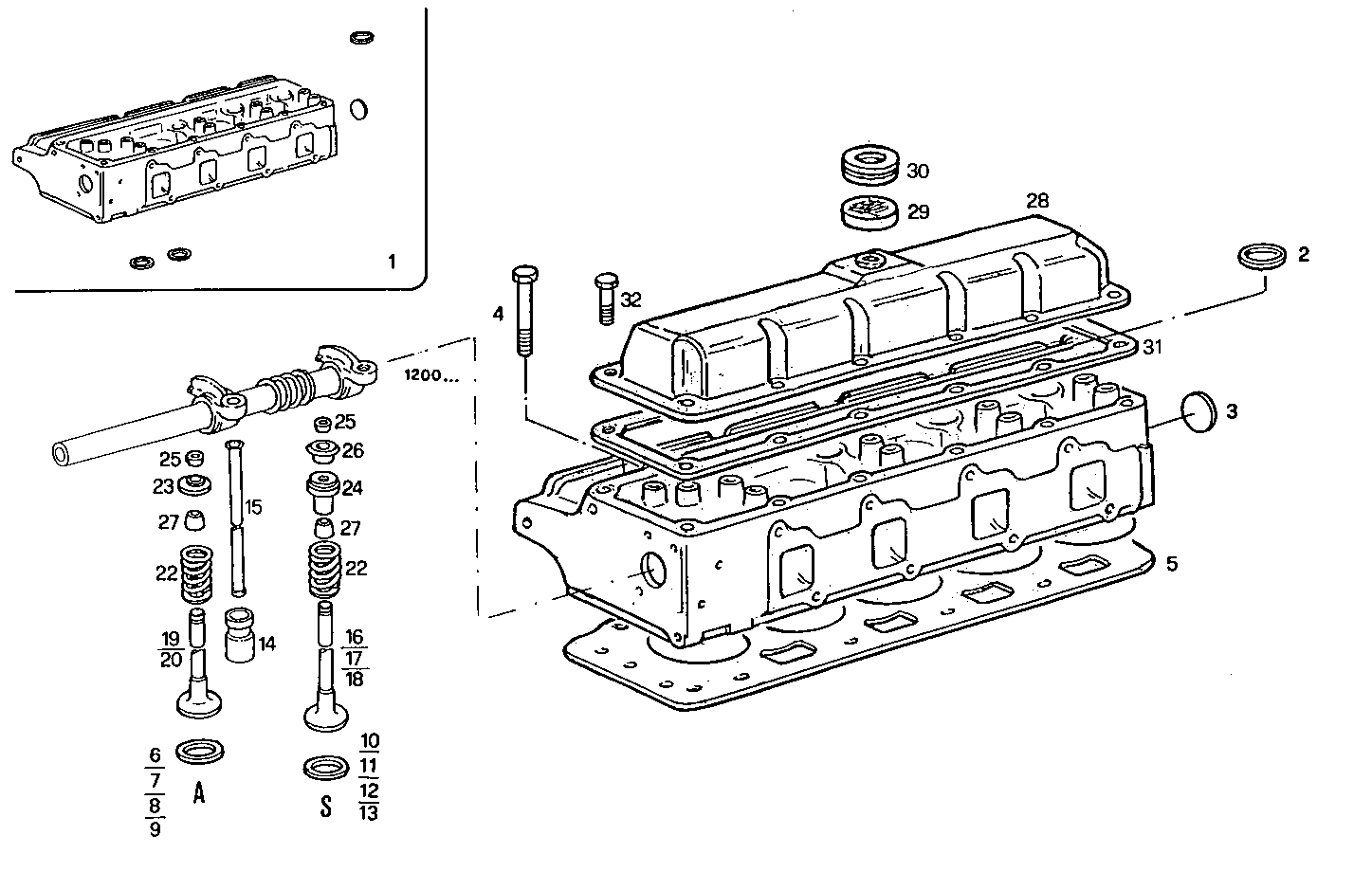

0600.055 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 81876753 CYLINDER HEAD ASSY
2 83957021 PLUG
3 83957025 PLUG
4 83948300 SCREW
5 87800517 CYL.HEAD GASKET
6 81876778 VALVE SEAT +0.76
7 81876756 VALVE SEAT STD.
8 81876763 VALVE SEAT +0.25
9 81876768 VALVE SEAT +0.51
10 81865194 VALVE SEAT STD. EXHAUST
11 81865195 VALVE SEAT +0.25 EXHAUST
12 81865196 VALVE SEAT +0.51 EXHAUST
13 81865197 VALVE SEAT +0.76 EXHAUST
14 83946434 VALVE TAPPET
15 81877890 PUSHROD
16 82850523 EXHAUST VALVE
17 82850521 EXHAUST VALVE 0,015 MM
18 81865090 EXHAUST VALVE 0,76 MM
19 82850530 INLET VALVE
20 81865094 INLET VALVE 0,76 MM
22 83999742 ENGINE VALV.SPRING
23 83958102 TAPPET INTAKE
24 83952336 TAPPET EXHAUST
25 81876796 VALVE CONE
26 83952337 CAP
27 87840154 RING
28 87800919 CYL. HEAD COVER
29 81878954 STRAINER
30 83958239 WASHER
31 83976375 HEAD COVER GASKET
32 83949109 SCREW
