GE7450Si15.05A905

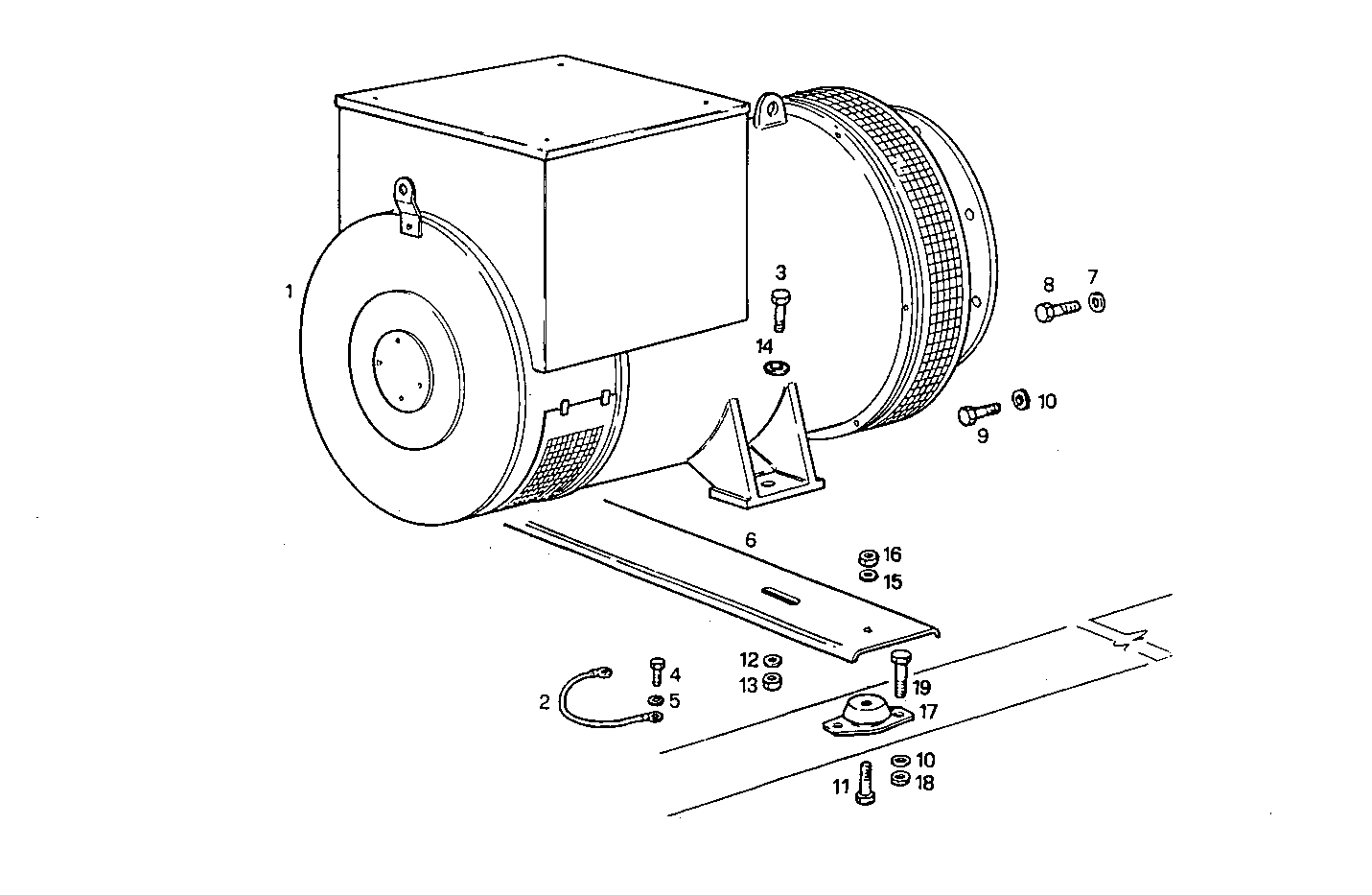

A37110063 SINGLE BEARING ELECTRIC MACHINE - LEROY

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8017432 ELECTRIC MACHINE LSA 441 H3 50-60HZ
2 8110852 EARTH WIRE
3 16614724 SCREW M16X45
4 16043124 SCREW M8X14 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 8016047 SUPPORT
7 17494934 WASHER Ø10X18,1X2,2 MM
8 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
9 16607824 HEXAGON BOLT M10X35 MM (8.8)
10 17090174 SPRING WASHER Ø10X20 MM
11 16614524 HEXAGON BOLT M16X35 MM
12 17093174 WASHER Ø24X46X5,4 MM
13 17038921 NUT M16X2
14 4929369 WASHER
15 17092374 SPRING WASHER Ø16X34X3,6 MM
16 17039721 HEXAGON NUT M24
17 8016784 RUBBER PAD
18 17038121 HEXAGON NUT M10
19 16607624 SCREW M10X25
