GE7450Si15.05A905

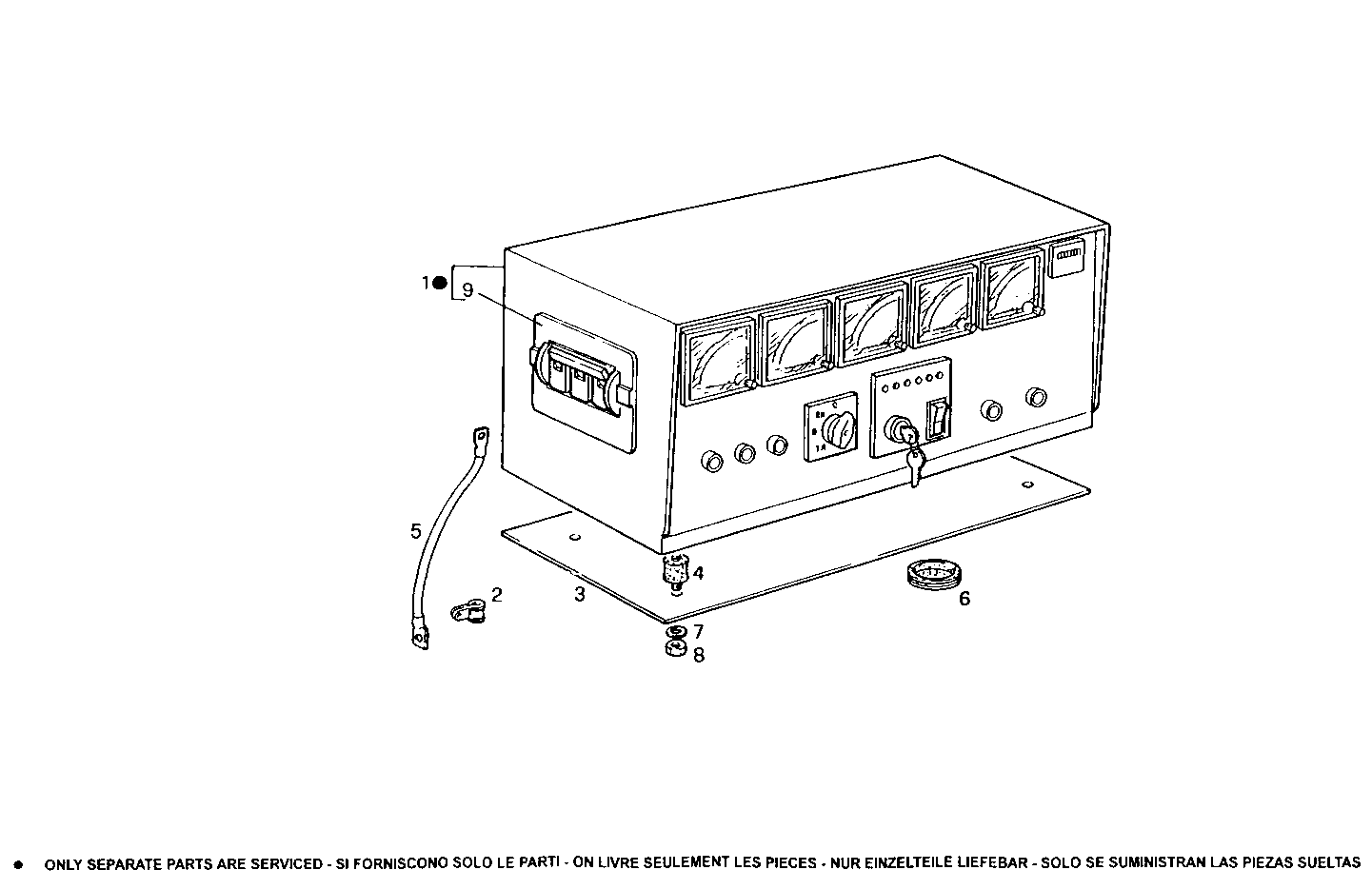

A60120023 MANUAL CONTROL BOARD FOR ELECT. MACHINE - LEROY
| Item | Part number | Description |
|---|---|---|
| 1 | 8018836 | CONTROL BOARD ASSY 220V/380V 50-60HZ |
| 2 | 17314990 | FASTENING BRACKET |
| 3 | 8019183 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8006993 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037721 | NUT M5X0,8 |
| 9 | 8110803 | SWITCH |
