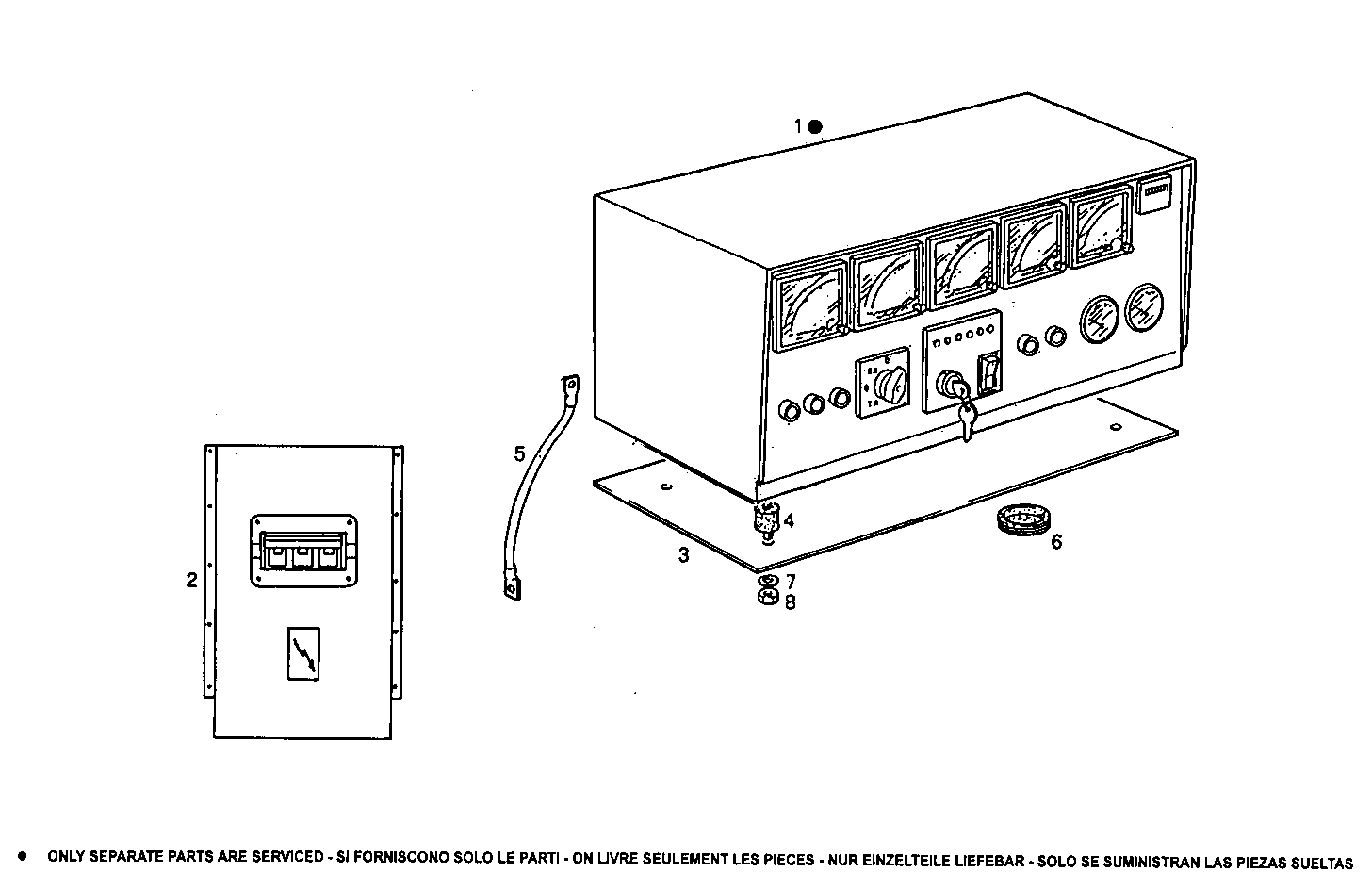

A60120024 MANUAL CONTROL BOARD FOR ELECT. MACHINE - LEROY

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8018867 CONTROL BOARD ASSY 220V/380V 50-60HZ
2 8110909 SWITCH 200A
3 8019183 COVER
4 8104155 DOWEL
5 8110852 EARTH WIRE
6 8113214 INSULATING RING
7 17088474 WASHER Ø6X12 MM
8 17037821 HEXAGON NUT M6X1
