GE7450Si16.05A905

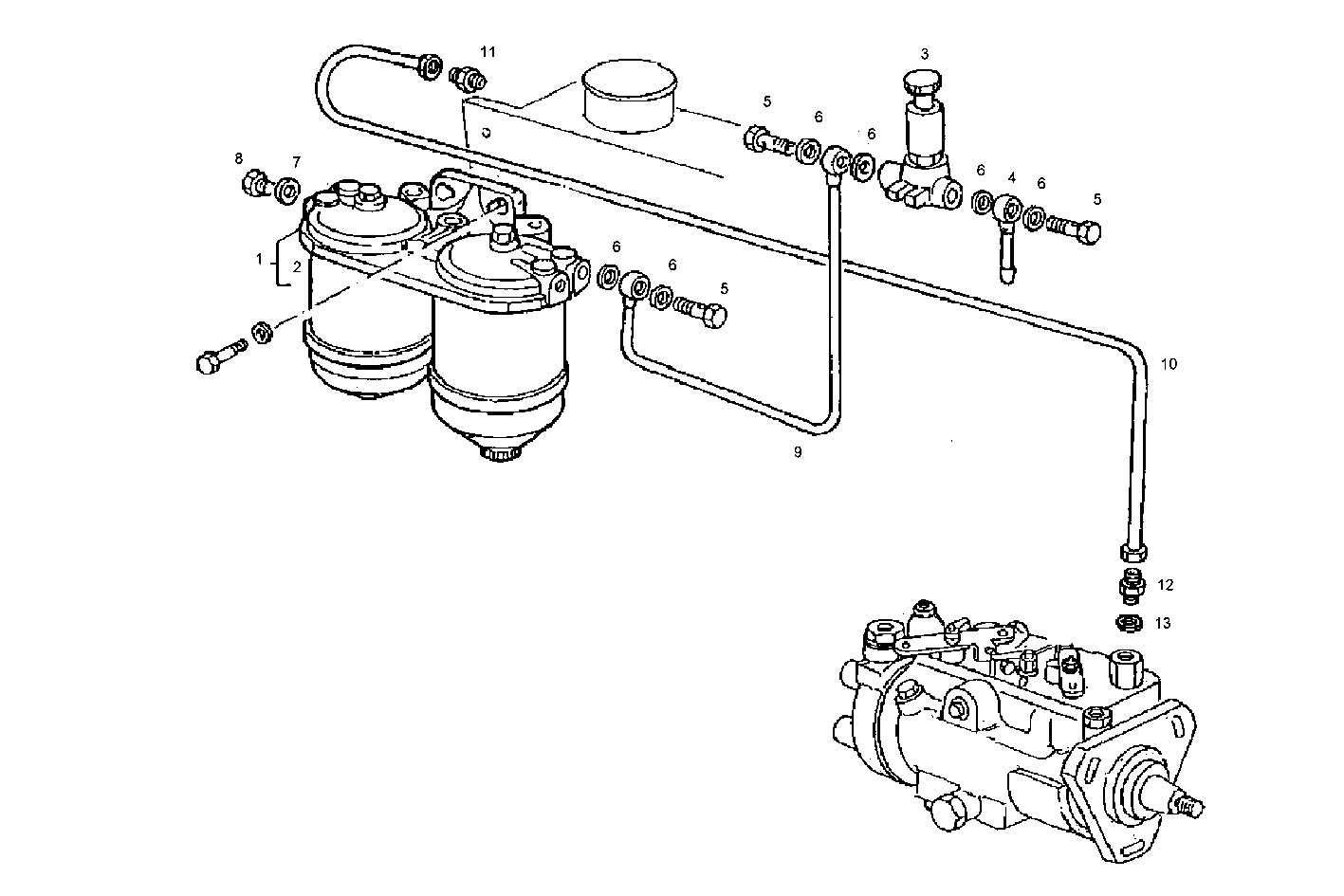

2030.087 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98416659 | FUEL FILTER ASSY |
| 2 | 1901929 | FUEL FILTER ELEM. |
| 3 | 4797319 | HAND PUMP ASSY |
| 4 | 98404882 | PIPE SOCKET Ø8 MM |
| 5 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 6 | 98474308 | SEAL GASKET Ø14X22 MM |
| 7 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 8 | 16992311 | LOCK PLUG M14X1,5 |
| 9 | 8014056 | FUEL LINE |
| 10 | 8016057 | FUEL LINE |
| 11 | 8016056 | THERMO-STARTER |
| 12 | 8014066 | PIPE SOCKET |
| 13 | 17278081 | O-RING Ø10,82X1,78 MM |
