GE7450Si16.05A905

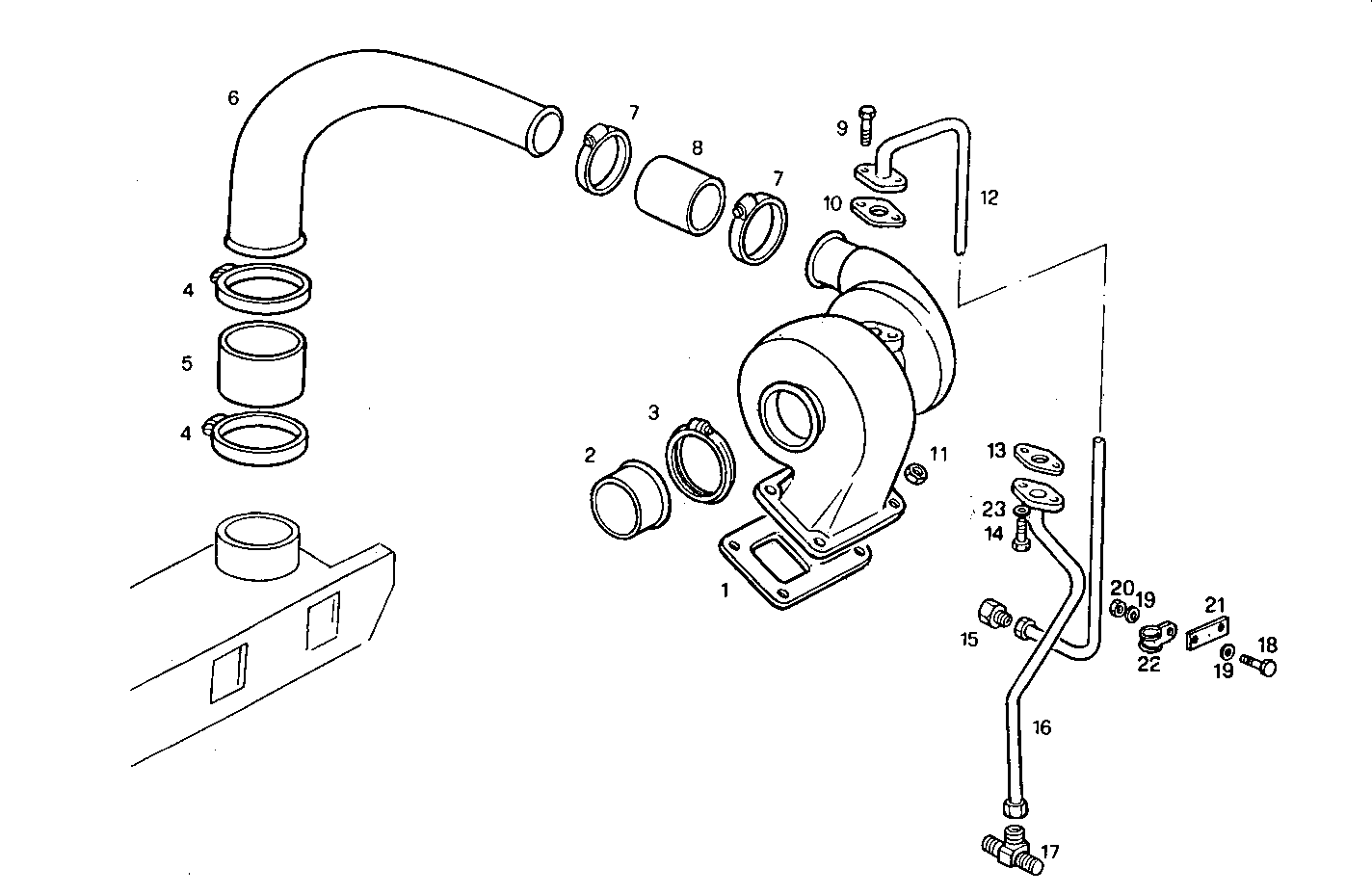

2420.101 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 83911642 | GASKET |
| 2 | 8014613 | FLANGE |
| 3 | 8015368 | CLIP 150 KVA |
| 4 | 17765091 | CLIP Ø60/80 MM |
| 5 | 8109365 | RUBBER SLEEVE |
| 6 | 81868455 | INTAKE ELBOW |
| 7 | 17764891 | CLIP Ø40/60 MM |
| 8 | 98448211 | TURBOCHARGER HOSE M16X55 MM |
| 9 | 81879213 | SCREW |
| 10 | 83959841 | GASKET |
| 11 | 83993005 | NUT |
| 12 | 81868534 | OIL LINE |
| 13 | 81862805 | GASKET |
| 14 | 82880843 | SCREW |
| 15 | 81865543 | PIPE SOCKET |
| 16 | 87800859 | OIL LINE |
| 17 | 81869032 | PIPE SOCKET |
| 18 | 16603721 | HEXAGON BOLT M6X20 MM |
| 19 | 17088474 | WASHER Ø6X12 MM |
| 20 | 17037821 | HEXAGON NUT M6X1 |
| 21 | 8017675 | RETAINER |
| 22 | 17314790 | FASTENING BRACKET Ø8 MM |
| 23 | 85700656 | WASHER |
