GE7450Si16.05A905

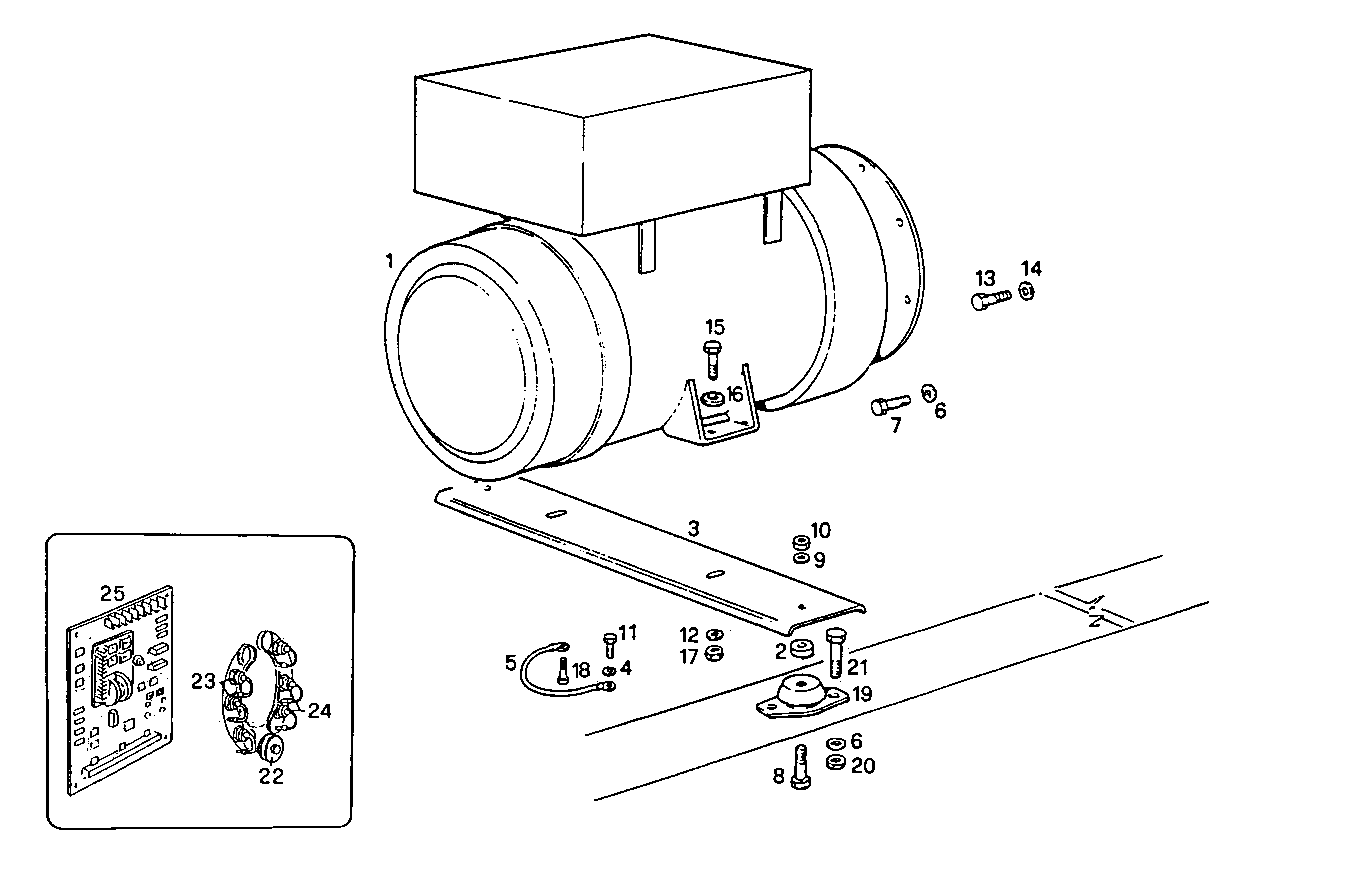

A37210082 SINGLE BEARING ELECTRIC MACHINE - MARELLI

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8009779 ELECTRIC MACHINE M7B 200 MC/4 50-60HZ
2 8016064 SPACING BAR
3 8016047 SUPPORT
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 8110852 EARTH WIRE
6 17090174 SPRING WASHER Ø10X20 MM
7 16607824 HEXAGON BOLT M10X35 MM (8.8)
8 16604924 SCREW
9 17092374 SPRING WASHER Ø16X34X3,6 MM
10 17038921 NUT M16X2
11 16043124 SCREW M8X14 MM
13 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
14 17494934 WASHER Ø10X18,1X2,2 MM
15 16614724 SCREW M16X45
16 4929369 WASHER
18 16603724 HEXAGON BOLT M6X20 MM (8.8)
19 8016784 RUBBER PAD
20 17038121 HEXAGON NUT M10
21 16607624 SCREW M10X25
22 8106490 SUPPRESSOR MARELLI
23 8106477 EL.MACHINE DIODE MARELLI - REVERSE
24 8106476 EL.MACHINE DIODE MARELLI - FORWARD
25 8091773 EL.MACHINE VOLTAGE REGUL.
