GE7675G86.05A70E

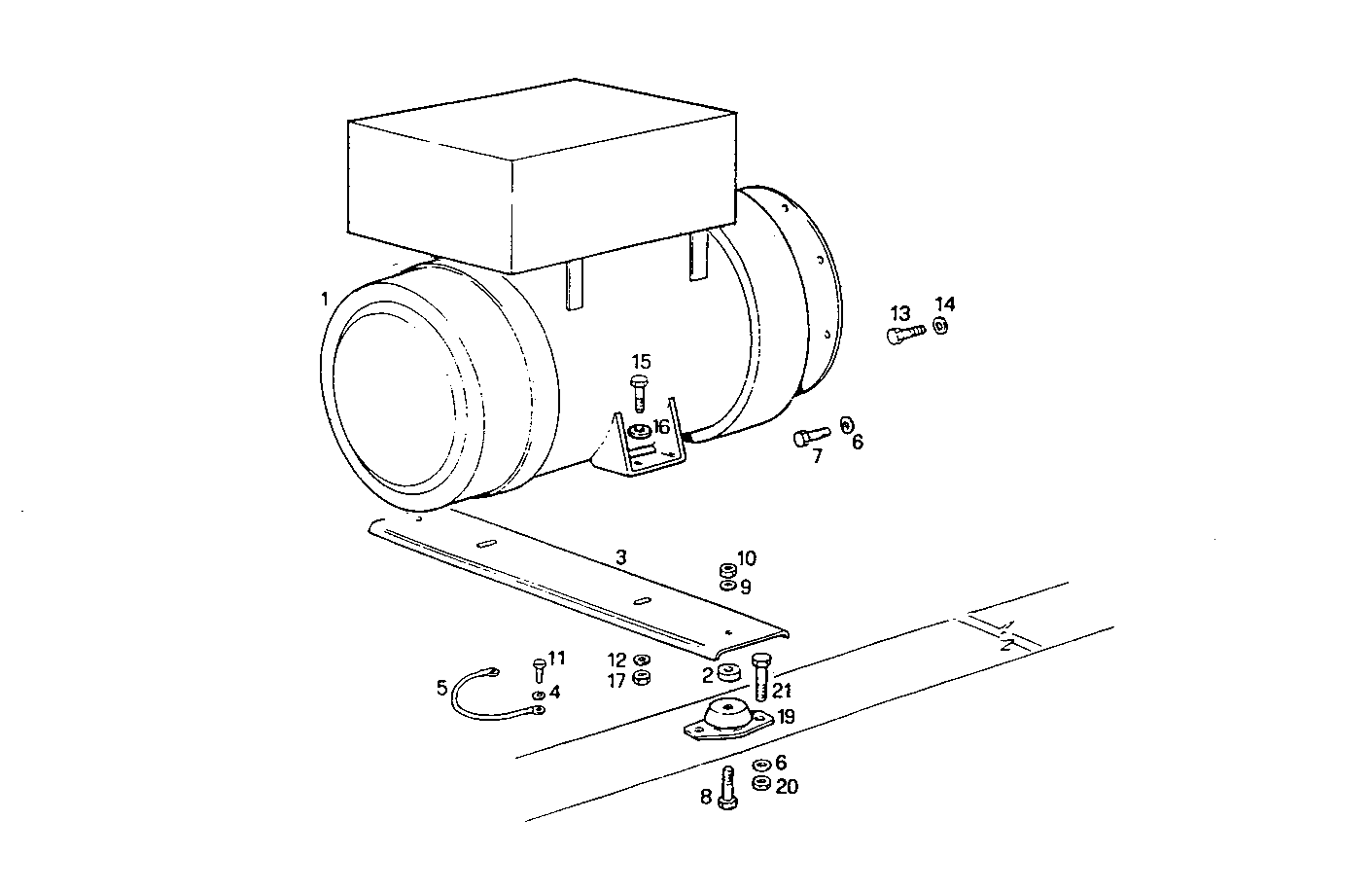

A37210083 SINGLE BEARING ELECTRIC MACHINE - MARELLI

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8017430 ELECTRIC MACHINE M7B 200 MB/4 50-60HZ
2 8015190 SPACING BAR
3 8015167 SUPPORT
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 8104358 EARTH WIRE
6 17090174 SPRING WASHER Ø10X20 MM
7 16607824 HEXAGON BOLT M10X35 MM (8.8)
8 16620924 SCREW M24X160
9 17093174 WASHER Ø24X46X5,4 MM
10 17037931 HEXAGON NUT M8X1,25
11 16043124 SCREW M8X14 MM
12 17092174 SPRING WASHER Ø16X32X3,4
13 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
14 17494934 WASHER Ø10X18,1X2,2 MM
15 16614724 SCREW M16X45
16 4929369 WASHER
17 17038921 NUT M16X2
19 8016784 RUBBER PAD
20 17038121 HEXAGON NUT M10
21 16607624 SCREW M10X25
