GE7675i15.05A905

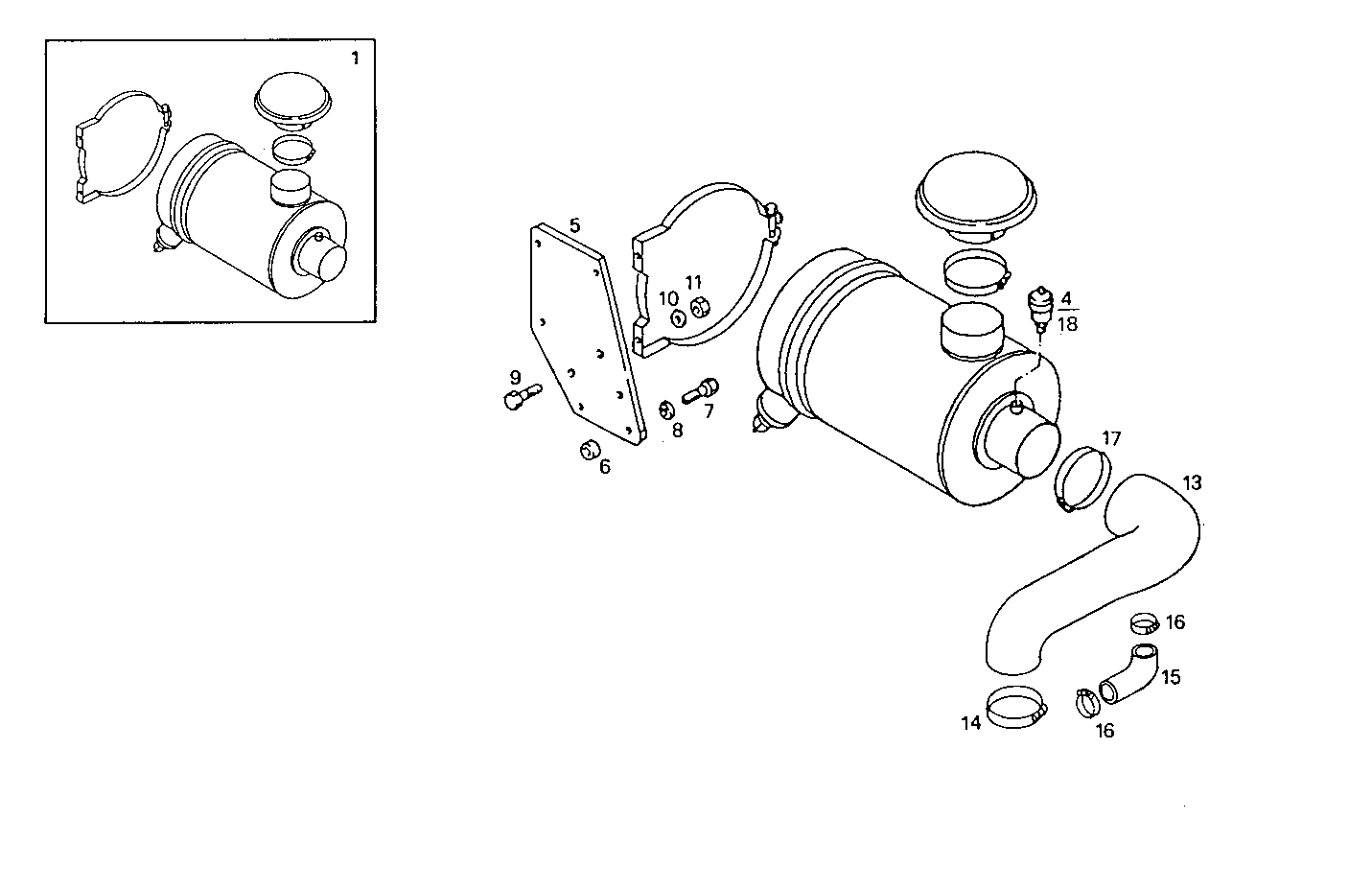

A21210008 DRY AIR CLEANER - with mechanical clogging gauge - genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8013302 | AIR CLEANER ASSY |
| 4 | 4936137 | CHOCKED FILTER INDIC. MECHANICAL |
| 5 | 8014491 | PLATE |
| 6 | 8014162 | SPACING BAR |
| 7 | 8114495 | SCREW |
| 8 | 17091074 | WASHER Ø12X24X2,8 MM |
| 9 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
| 13 | 8015246 | RUBBER SLEEVE |
| 14 | 17765291 | CLIP Ø80/100 MM |
| 15 | 8013466 | WATER HOSE [up to 03-97] |
| 16 | 17764592 | CLIP Ø20/32 MM |
| 17 | 17765391 | CLIP Ø90/110 MM |
| 18 | 8022540 | CHOCKED FILTER INDIC. MECHANICAL |
