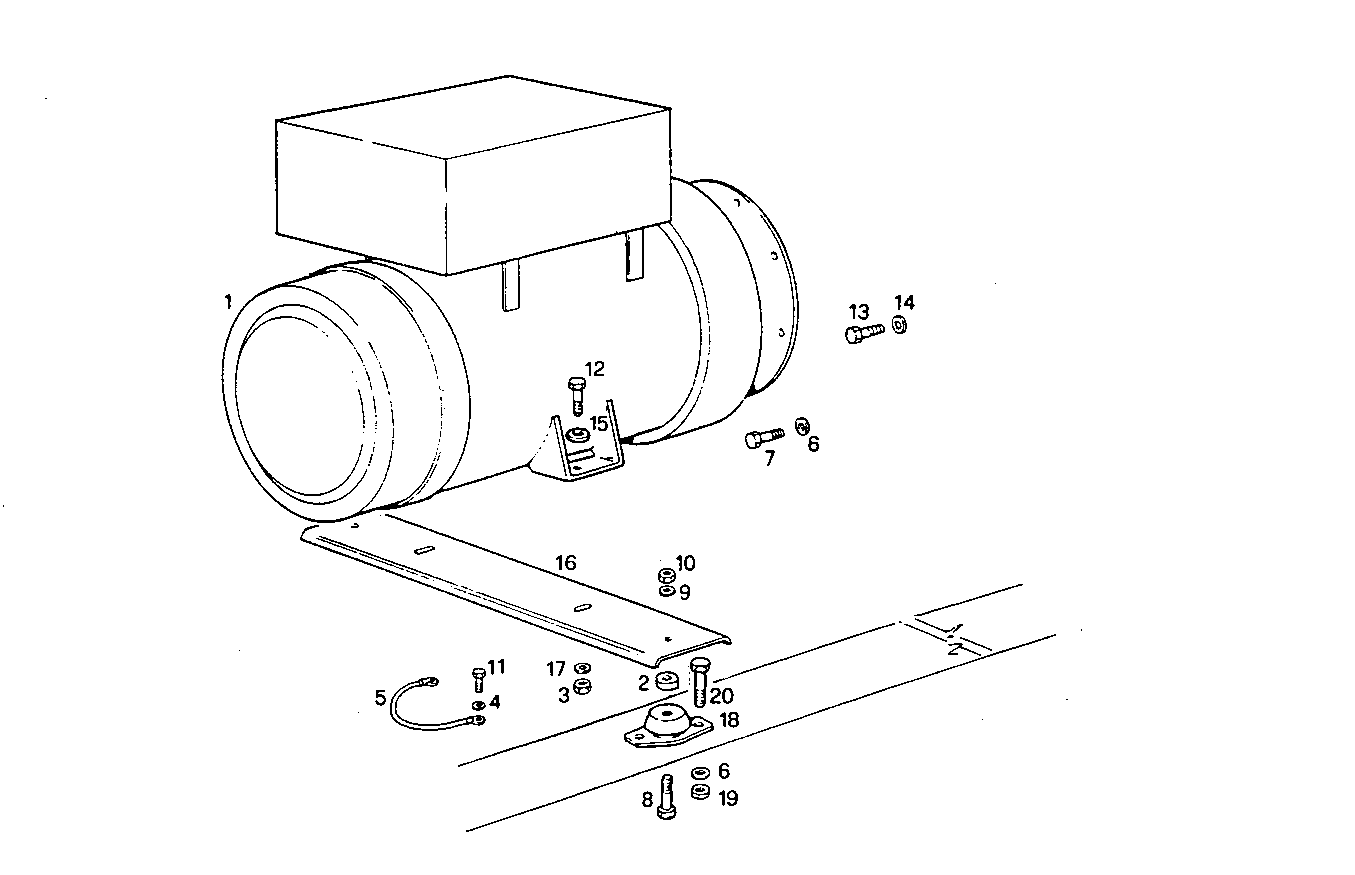

| Item |
Part number |
Description |
|
1 |
8009779 |
ELECTRIC MACHINE M7B 200 MC/4 50-60HZ |
|
2 |
8015190 |
SPACING BAR |
|
3 |
17038921 |
NUT M16X2 |
|
4 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
5 |
8110852 |
EARTH WIRE |
|
6 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
7 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
|
8 |
16620924 |
SCREW M24X160 |
|
9 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
10 |
17039721 |
HEXAGON NUT M24 |
|
11 |
16043124 |
SCREW M8X14 MM |
|
12 |
16614724 |
SCREW M16X45 |
|
13 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
14 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
15 |
4929369 |
WASHER |
|
16 |
8015167 |
SUPPORT |
|
17 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
|
18 |
8016784 |
RUBBER PAD |
|
19 |
17038121 |
HEXAGON NUT M10 |
|
20 |
16607624 |
SCREW M10X25 |
