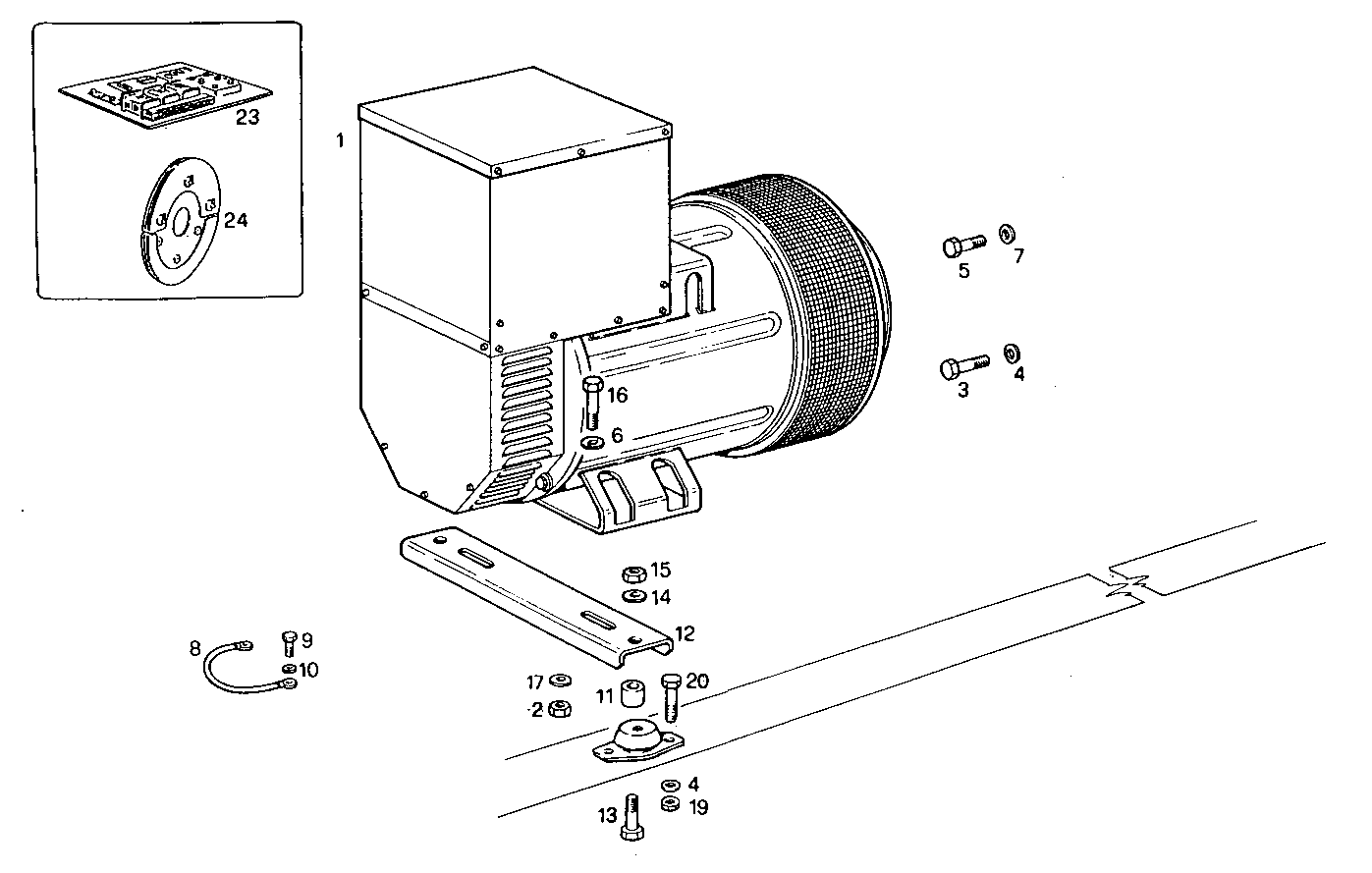

| Item |
Part number |
Description |
|
1 |
8015001 |
ELECTRIC MACHINE ECN 34 LA/4 50-60HZ |
|
2 |
17039321 |
NUT M20X2,5 |
|
3 |
16608024 |
HEXAGON BOLT M10X1,25X45 MM |
|
4 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
5 |
16607624 |
SCREW M10X25 |
|
6 |
4279447 |
WASHER |
|
7 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
8 |
8104707 |
WIRE/CABLE |
|
9 |
16043124 |
SCREW M8X14 MM |
|
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
11 |
8015985 |
SPACING BAR |
|
12 |
8015167 |
SUPPORT |
|
13 |
16620424 |
HEXAGON BOLT M24X110 MM |
|
14 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
15 |
17039721 |
HEXAGON NUT M24 |
|
16 |
16617324 |
SCREW M20X55 |
|
17 |
17092774 |
WASHER Ø20X38X4,6 MM |
|
18 |
8016784 |
RUBBER PAD |
|
19 |
17038121 |
HEXAGON NUT M10 |
|
23 |
8091776 |
EL.MACHINE VOLTAGE REGUL. MECC-ALTE |
|
24 |
8090799 |
EL.MACHINE DIODE MECC-ALTE |
