GE7675Si15.05A905

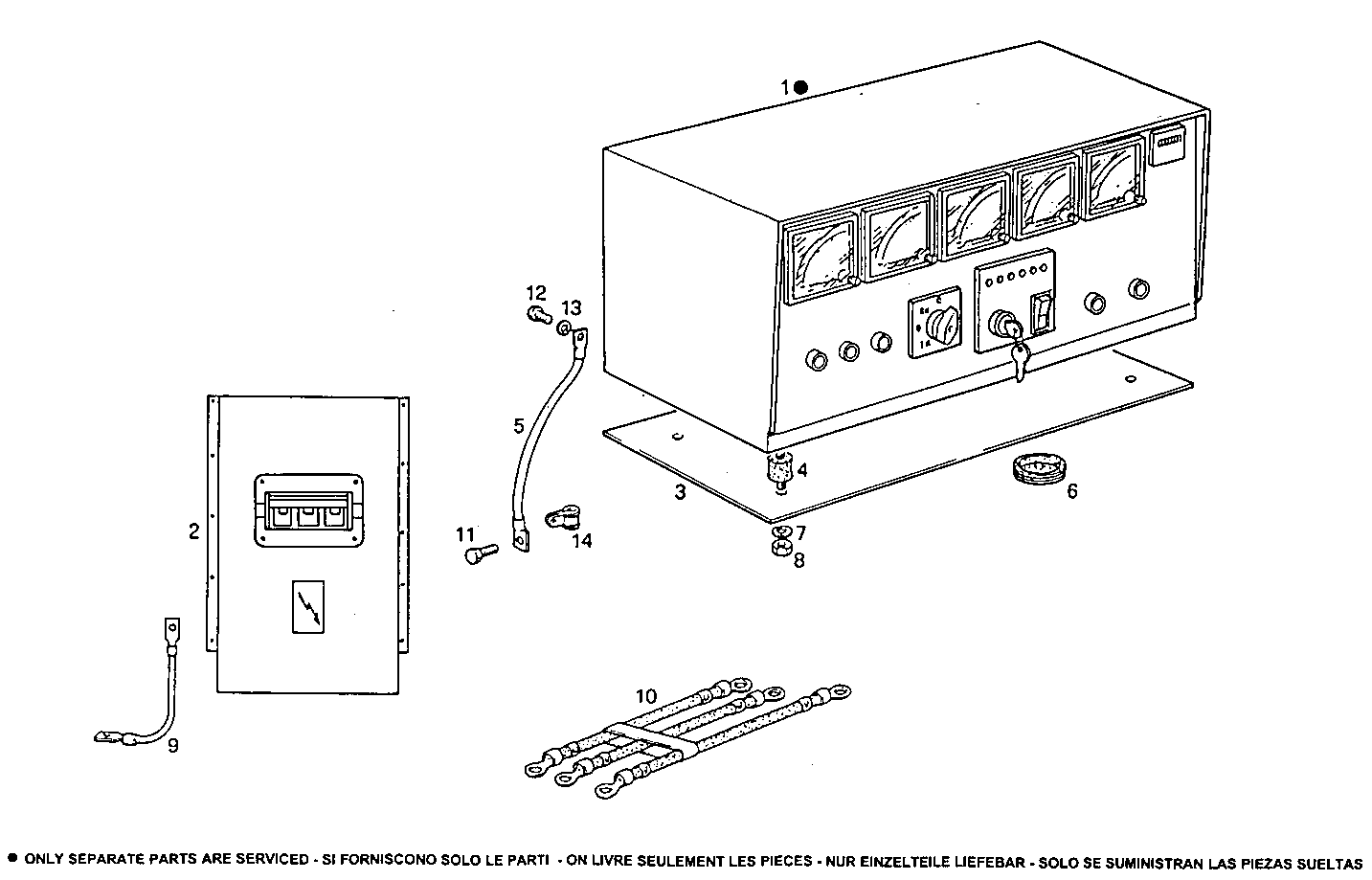

A60140009 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MECC-ALTE
| Item | Part number | Description |
|---|---|---|
| 1 | 8018931 | CONTROL BOARD ASSY 220V 50-60Hz |
| 2 | 8015859 | SWITCH 320A |
| 3 | 8019189 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8006993 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 8104707 | WIRE/CABLE |
| 10 | 8006430 | ENGINE HARNESS |
| 11 | 16605524 | HEXAGON BOLT M8X20 MM |
| 14 | 17314990 | FASTENING BRACKET |
