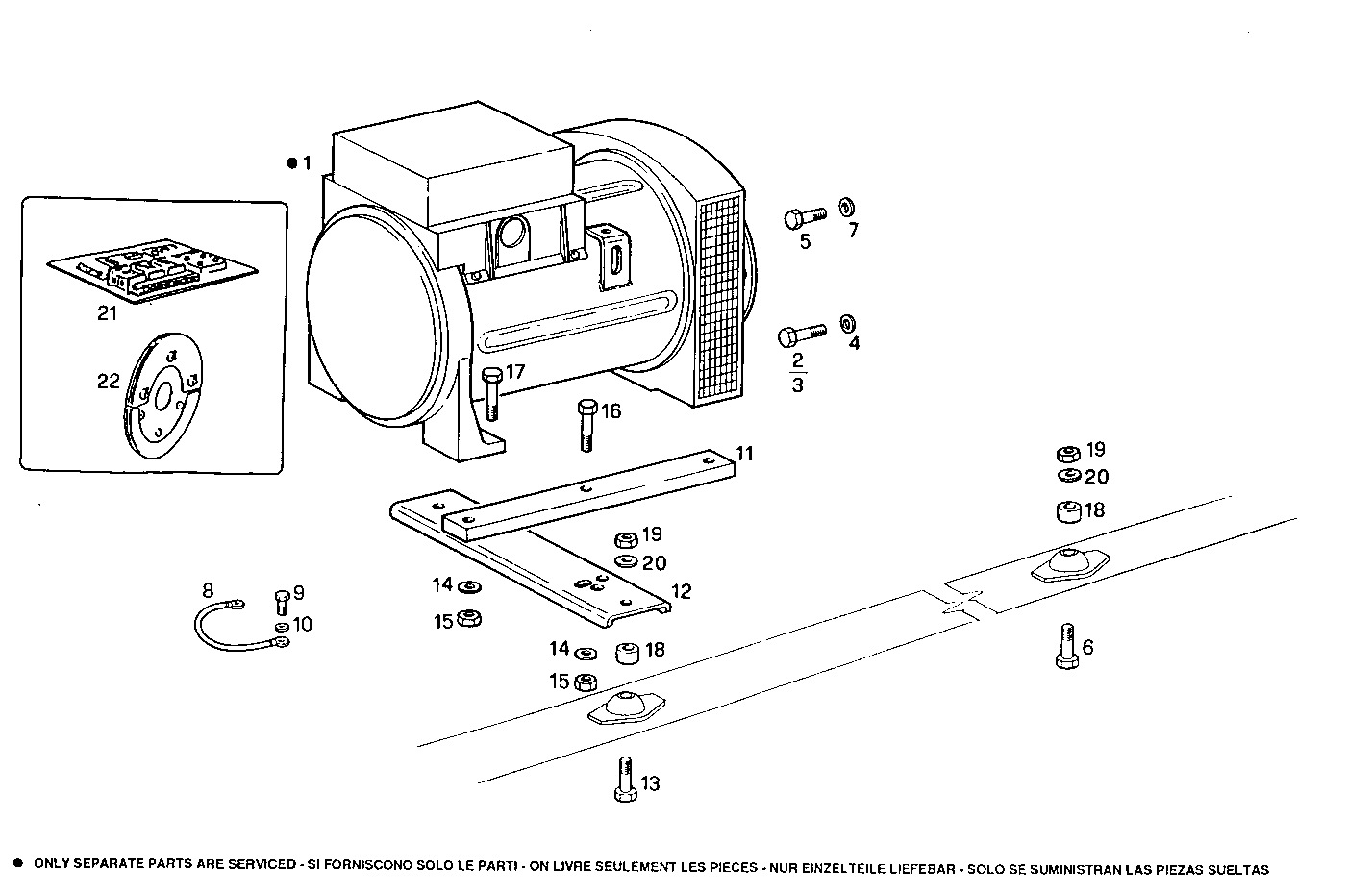

| Item |
Part number |
Description |
|
1 |
8014997 |
ELECTRIC MACHINE EC 31 SB/4 50-60HZ |
|
2 |
11306921 |
SCREW M10X1,25X30 |
|
3 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
4 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
5 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
6 |
15542121 |
HEXAGON BOLT M12X1,25X150 |
|
7 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
8 |
8006999 |
EARTH WIRE |
|
9 |
16605424 |
SCREW M8X16 MM (8.8) |
|
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
11 |
8015392 |
SUPPORT |
|
12 |
8109131 |
SUPPORT |
|
13 |
15541621 |
HEXAGON BOLT M12X1,25X100 MM |
|
14 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
|
15 |
17038921 |
NUT M16X2 |
|
16 |
16614824 |
SCREW M16X50 |
|
17 |
16615024 |
SCREW M16 |
|
18 |
8109422 |
SPACING BAR |
|
19 |
17038621 |
NUT M12 |
|
20 |
17091374 |
SPRING WASHER Ø12X30X3,0 MM |
|
21 |
8091775 |
EL.MACHINE DIODE ASSY |
|
22 |
8091776 |
EL.MACHINE VOLTAGE REGUL. MECC-ALTE |
