GE8031i05.05A905

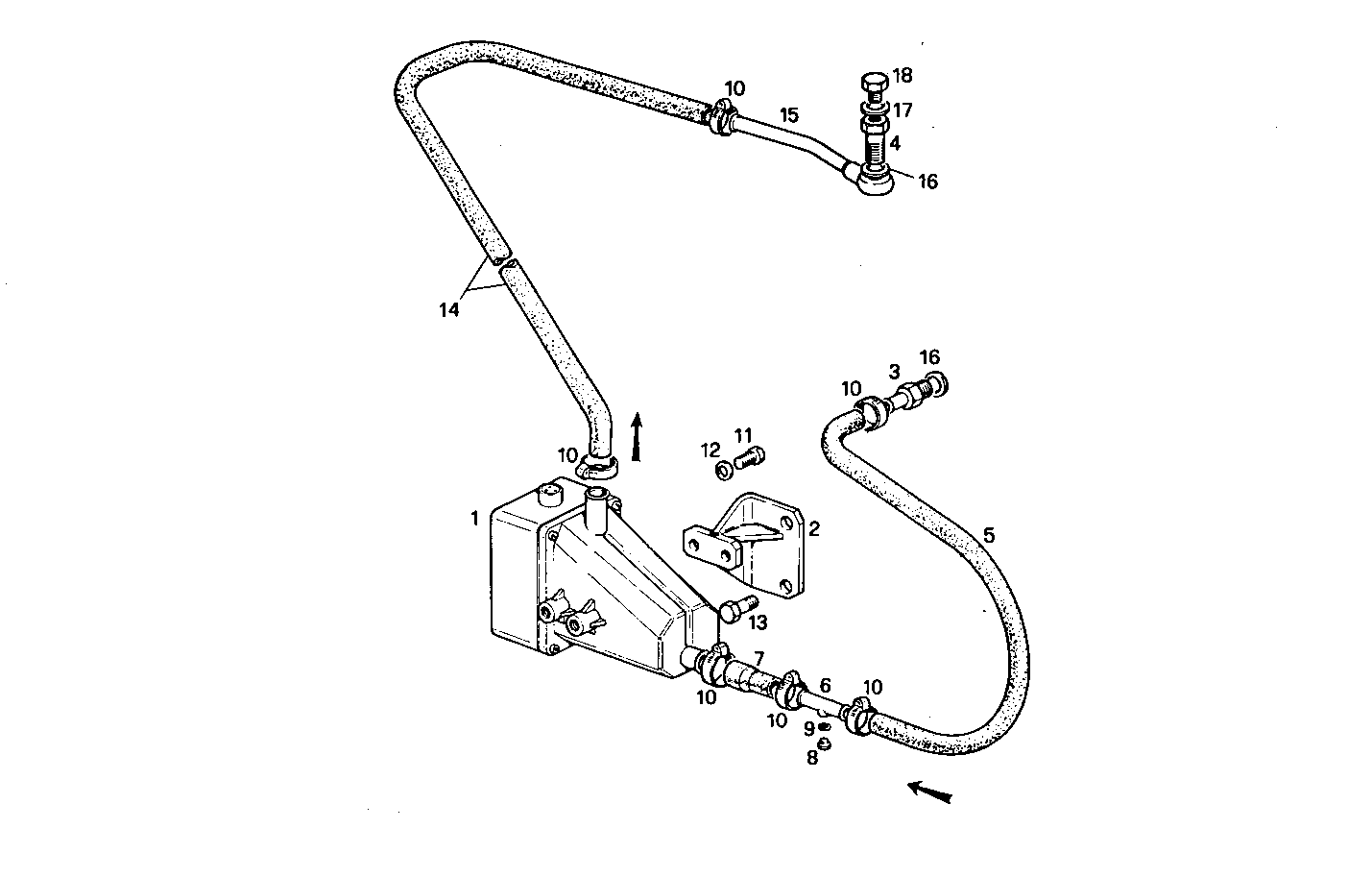

A20040001 WATER PREHEATER DEVICE - 220V
| Item | Part number | Description |
|---|---|---|
| 1 | 8111832 | HEATER |
| 2 | 8112531 | SUPPORT |
| 3 | 8112804 | PIPE SOCKET |
| 4 | 4928361 | SCREW CONNECTOR |
| 5 | 8111907 | WATER HOSE |
| 6 | 8111818 | WATER PIPE |
| 7 | 8111817 | RUBBER SLEEVE |
| 8 | 10300211 | THREADED PLUG |
| 9 | 10297760 | SEAL GASKET �6,2 MM |
| 10 | 17764492 | CLIP �16-25 MM |
| 11 | 10902121 | HEXAGON BOLT M6X14 MM |
| 12 | 11197779 | SPRING WASHER �6X12 MM |
| 13 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 14 | 8112243 | WATER HOSE |
| 15 | 8112239 | WATER PIPE |
| 16 | 10263460 | WASHER �22X28X1,5 MM |
| 17 | 10278660 | SEAL GASKET �16X22 MM SP=1 MM |
| 18 | 10300711 | LOCK PLUG M16 |
