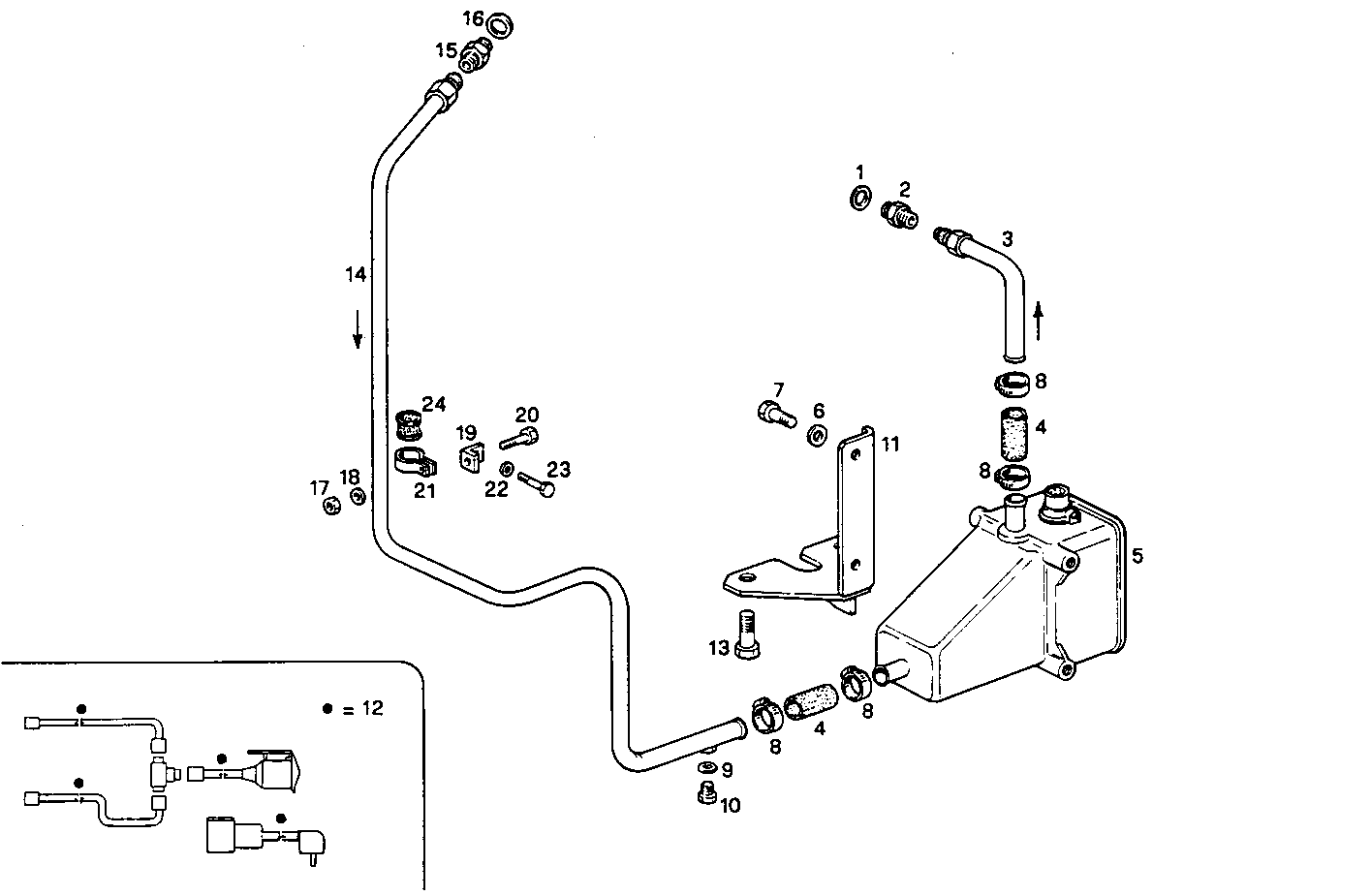

A20040035 WATER PREHEATER DEVICE - 220V

Iveco/FPT WATER PREHEATER DEVICE - 220V

Item Part number Description
1 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
2 4741602 THREADED UNION LEFT
3 8014775 WATER PIPE
4 8109346 RUBBER SLEEVE
5 8008375 HEATER 700W
6 17088474 WASHER Ø6X12 MM
7 10902121 HEXAGON BOLT M6X14 MM
8 17764592 CLIP Ø20/32 MM
9 4858605 WASHER Ø8X12 MM
10 10300911 PLUG M8
11 8015431 SUPPORT
12 8009376 WIRE/CABLE ASSY
13 11234721 HEXAGON BOLT M10X1,25X45 MM
14 8014787 WATER PIPE
15 8012712 PIPE SOCKET M22X1,5/M22X1,5
16 10263460 WASHER Ø22X28X1,5 MM
17 17037931 HEXAGON NUT M8X1,25
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 8100819 RETAINER
20 16605524 HEXAGON BOLT M8X20 MM
21 4763804 FASTENING BRACKET
22 17091074 WASHER Ø12X24X2,8 MM
23 16609824 HEXAGON BOLT M12X1,75X25 MM
24 4757122 RUBBER PAD
