GE8031i05.05A905

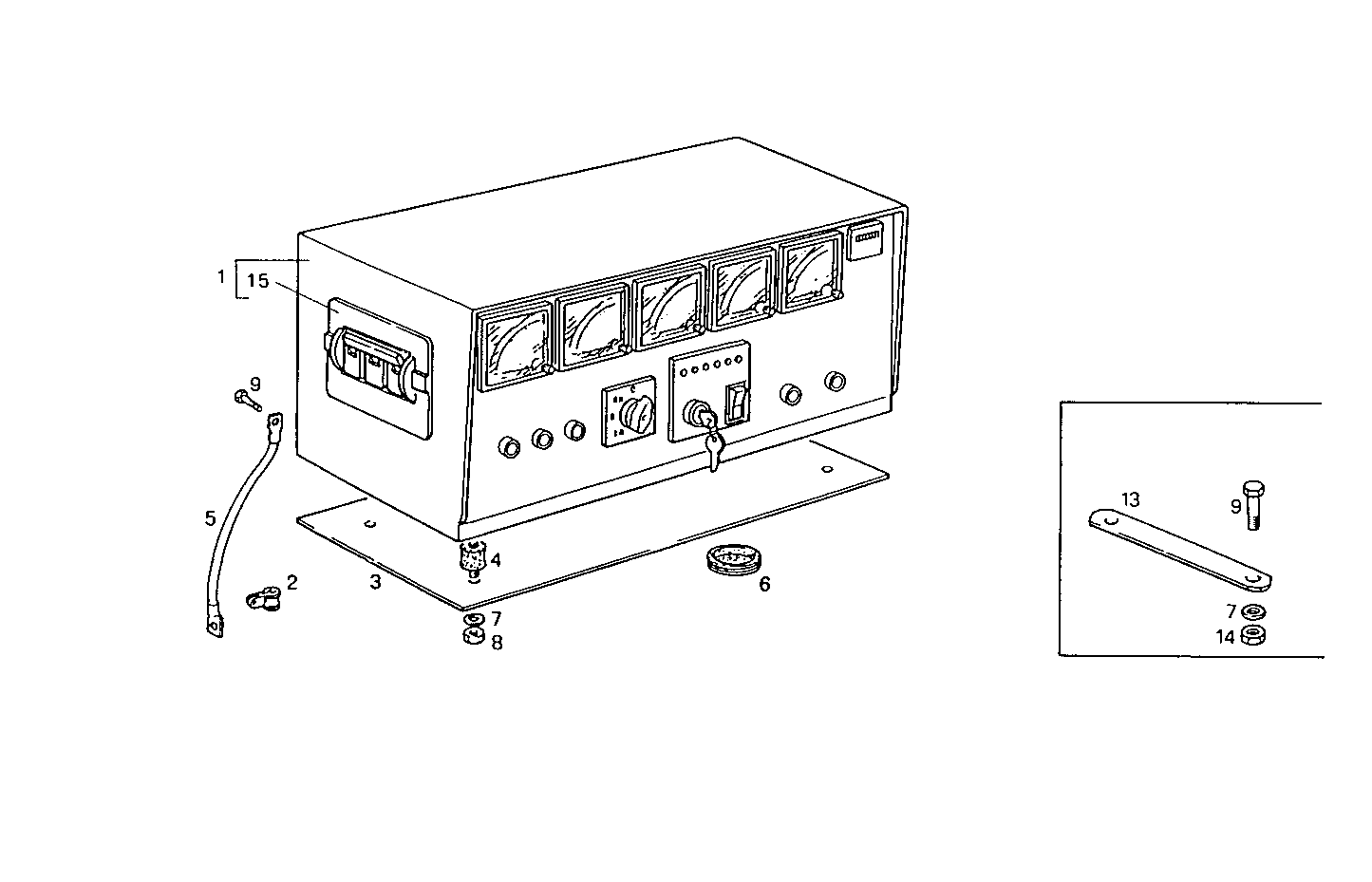

A60130031 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI
| Item | Part number | Description |
|---|---|---|
| 1 | 8018836 | CONTROL BOARD ASSY 220V/380V 50-60HZ |
| 2 | 17314990 | FASTENING BRACKET |
| 3 | 8019126 | COVER |
| 4 | 8018462 | RUBBER PAD |
| 5 | 8110852 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037721 | NUT M5X0,8 |
| 9 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 13 | 8015022 | SUPPORT |
| 14 | 17037821 | HEXAGON NUT M6X1 |
| 15 | 8110803 | SWITCH |
