GE8031i05.05A906

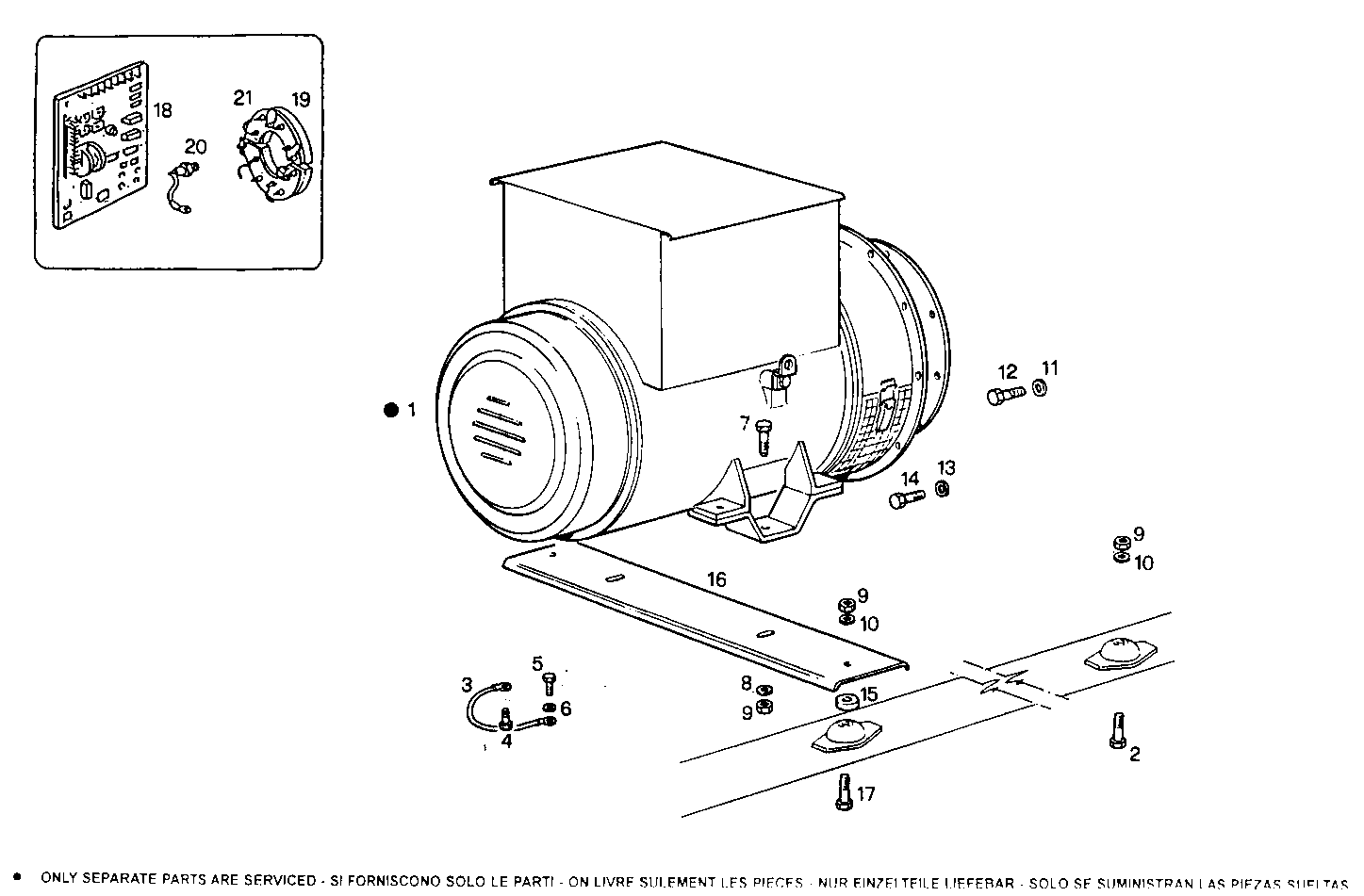

A37010015 SINGLE BEARING ELECTRIC MACHINE - STAMFORD

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8109289 ELECTRIC MACHINE PC 164 E1 50-60HZ
2 15541721 HEXAGON BOLT M12X1,25X110 MM
3 8006999 EARTH WIRE
4 10902421 HEXAGON BOLT M6X20 MM
5 16043124 SCREW M8X14 MM
6 11193879 SPRING WASHER Ø8X16 MM
7 15540621 HEXAGON BOLT M12X40 MM
8 11190779 SPRING WASHER Ø12X24 SP=2,8 MM
9 16101511 HEXAGON NUT M12X1,25
10 11198779 SPRING WASHER Ø13 MM
11 10516879 WASHER Ø10X18X2 MM
12 15970521 HEXAGON BOLT M10X20 MM
13 11198379 SPRING WASHER Ø10X20 MM SP=2,6
14 11306921 SCREW M10X1,25X30
15 8109422 SPACING BAR
16 8109281 SUPPORT
17 15541821 HEXAGON BOLT M12X1,25X120 MM [up to 565948]
18 8106757 EL.MACHINE VOLTAGE REGUL. Stamford
19 8106749 EL.MACHINE DIODE -
20 8106750 EL.MACHINE DIODE +
21 8106734 SUPPRESSOR Stamford
