GE8031i05.05A906

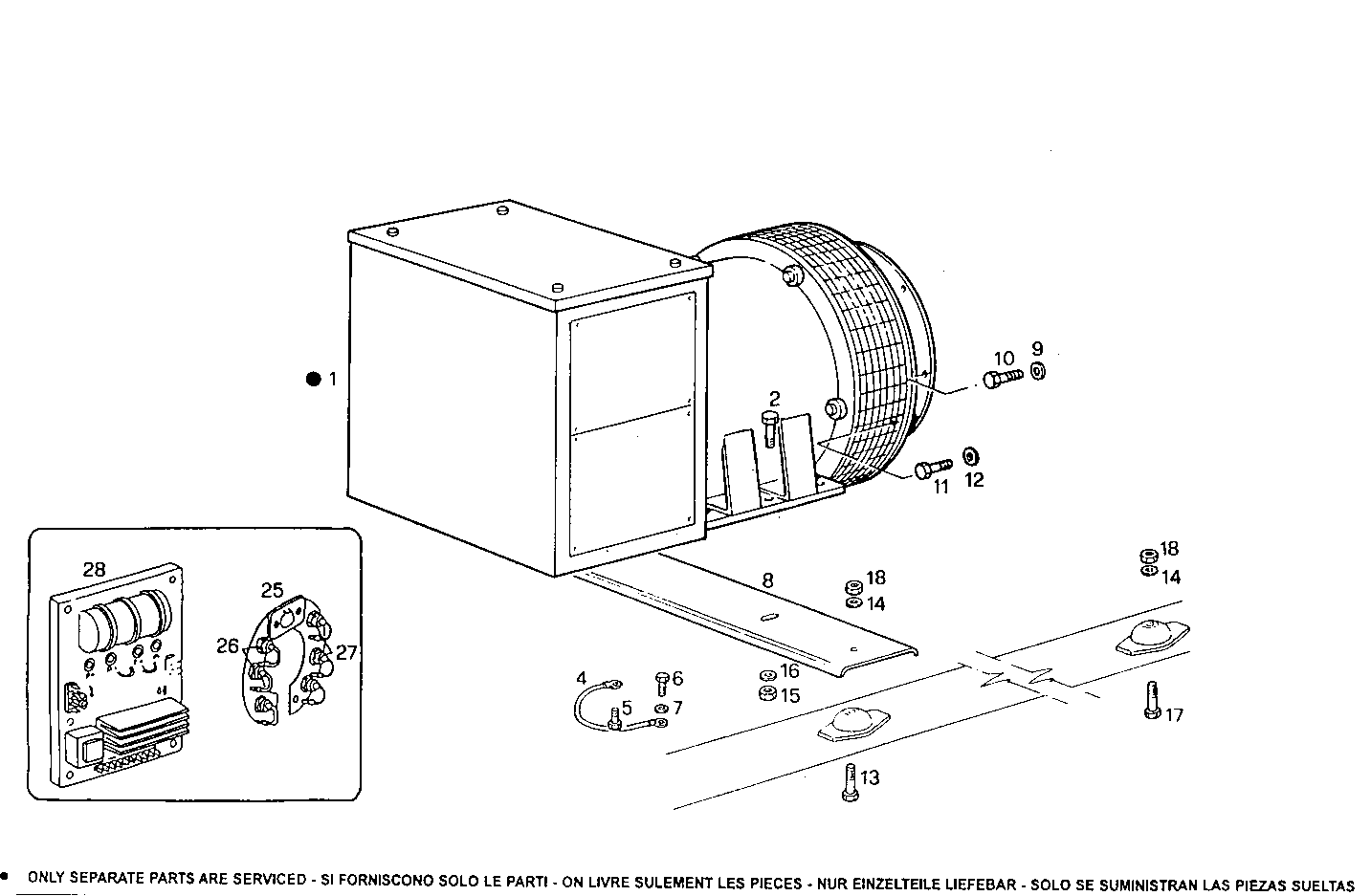

A37110012 SINGLE BEARING ELECTRIC MACHINE - LEROY

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8110069 ELECTRIC MACHINE LSA 410 L4 60HZ
2 15540621 HEXAGON BOLT M12X40 MM
4 8104358 EARTH WIRE
5 10902421 HEXAGON BOLT M6X20 MM
6 16043124 SCREW M8X14 MM
7 11193879 SPRING WASHER Ø8X16 MM
8 8109282 SUPPORT
9 10516879 WASHER Ø10X18X2 MM
10 15855421 HEXAGON BOLT M20X20 MM
11 11306921 SCREW M10X1,25X30
12 11198379 SPRING WASHER Ø10X20 MM SP=2,6
13 15541621 HEXAGON BOLT M12X1,25X100 MM
14 11198779 SPRING WASHER Ø13 MM
15 16101520 NUT
16 11190779 SPRING WASHER Ø12X24 SP=2,8 MM
17 15541721 HEXAGON BOLT M12X1,25X110 MM
18 16101511 HEXAGON NUT M12X1,25
25 8091777 SUPPRESSOR
26 8090758 DIODE -
27 8090757 DIODE +
28 8090756 EL.MACHINE VOLTAGE REGUL.
