GE8031i05.05A906

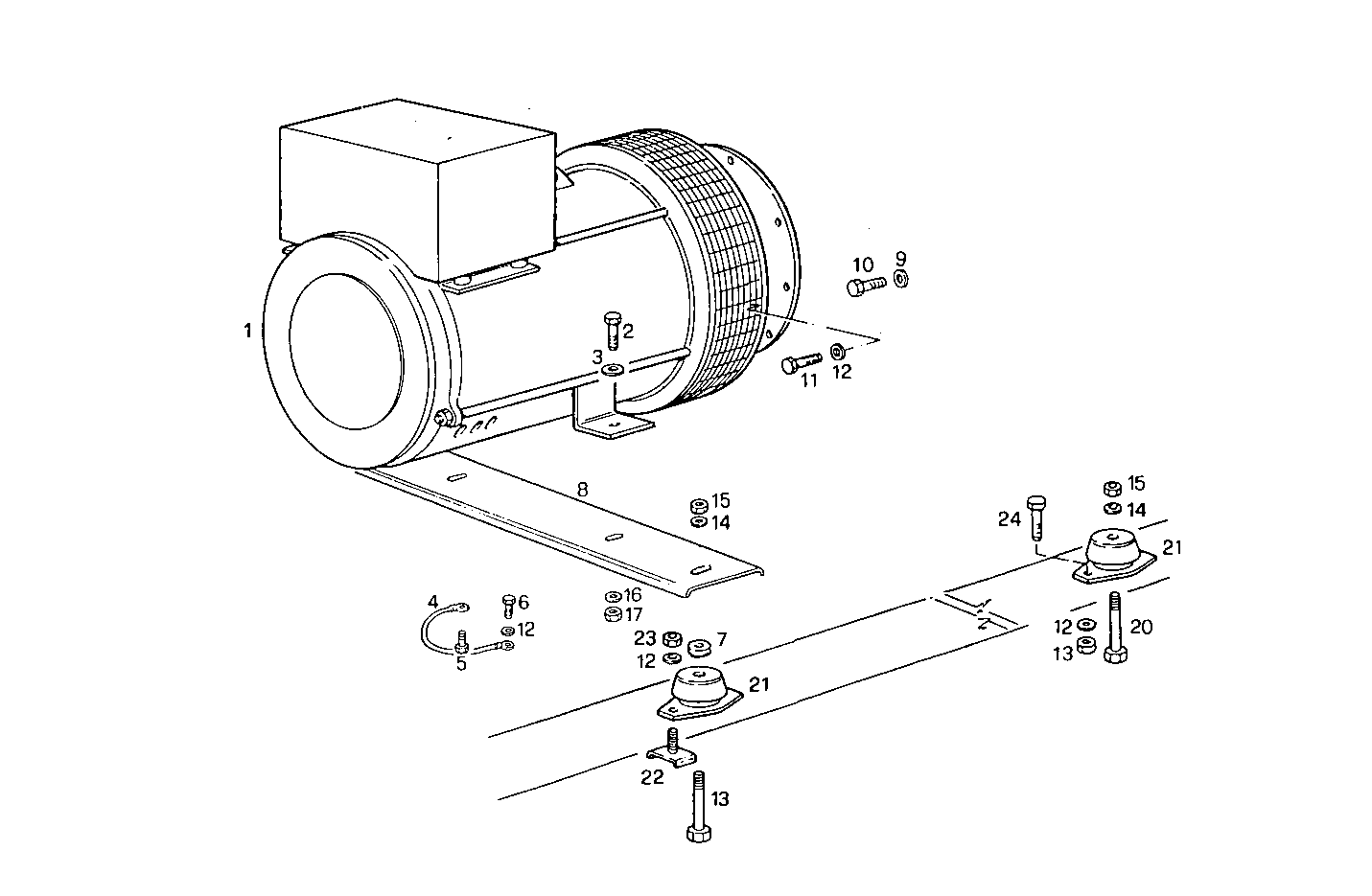

A37110057 SINGLE BEARING ELECTRIC MACHINE - LEROY [D 09-1993] [from09-1993]

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8016904 ELECTRIC MACHINE LSA 411 M2 50-60HZ
2 16610124 HEXAGON BOLT M12X40 MM
3 4929369 WASHER
4 8104707 WIRE/CABLE
5 16603724 HEXAGON BOLT M6X20 MM (8.8)
6 16043124 SCREW M8X14 MM
7 8015486 SPACING BAR
8 8016047 SUPPORT
9 17494934 WASHER Ø10X18,1X2,2 MM
10 15970521 HEXAGON BOLT M10X20 MM
11 11306921 SCREW M10X1,25X30
12 17090174 SPRING WASHER Ø10X20 MM
13 16614924 SCREW M16X55
14 17092374 SPRING WASHER Ø16X34X3,6 MM
15 17038921 NUT M16X2
16 17091374 SPRING WASHER Ø12X30X3,0 MM
17 17038421 HEXAGON NUT M12 (8)
20 16614624 HEXAGON BOLT M16X40 MM
21 4955094 RUBBER PAD
22 8015168 SCREW
23 17037821 HEXAGON NUT M6X1
24 16606524 HEXAGON BOLT M8X70 MM
