GE8031i06.05A905

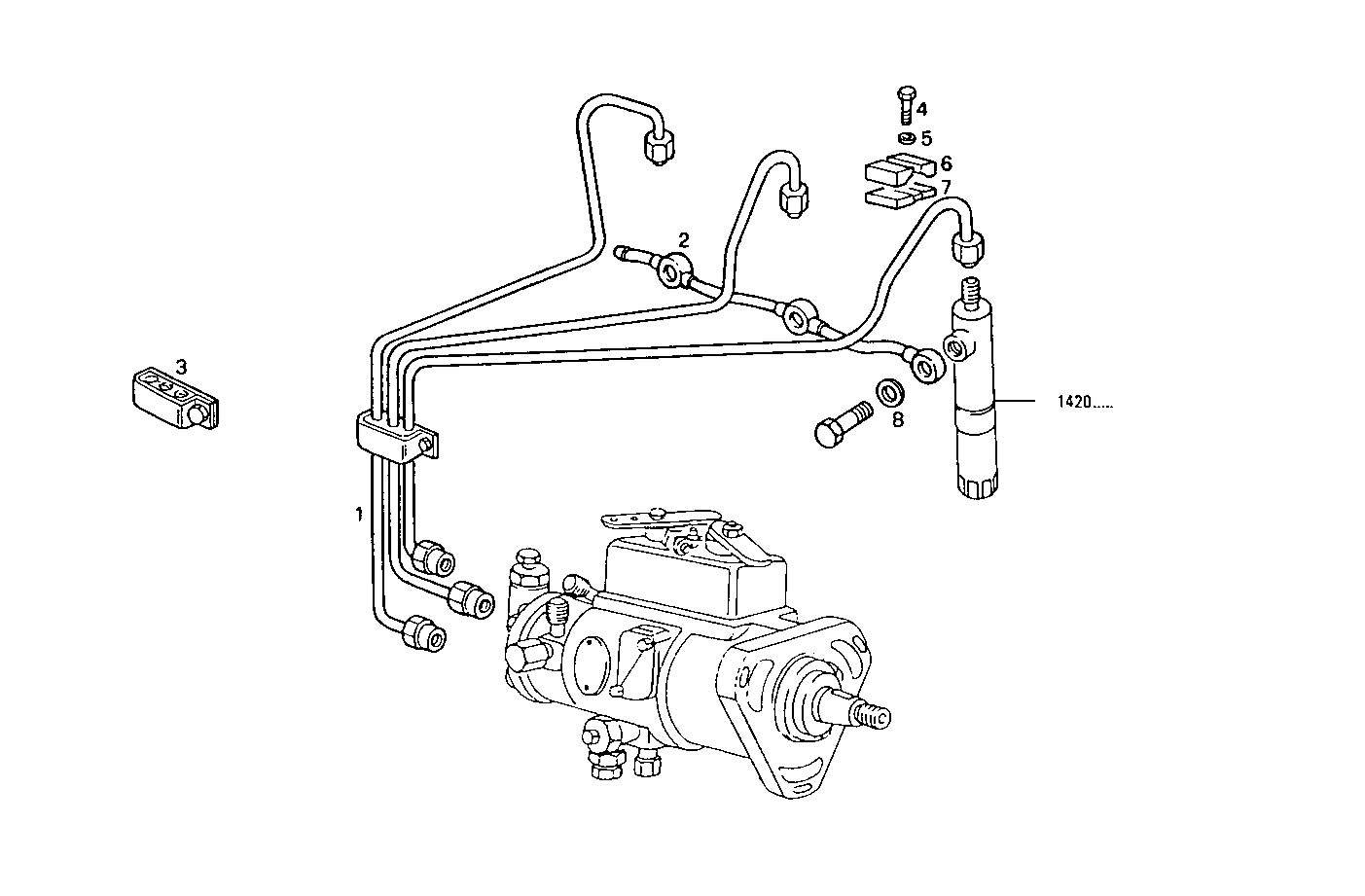

2020.080 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 4797511 | INJECTION LINE SET |
| 2 | 99460516 | FUEL LINE |
| 3 | 98404551 | FASTENING BRACKET |
| 4 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 607942 | CLIP |
| 7 | 4002890 | CLIP |
| 8 | 10297760 | SEAL GASKET Ø6,2 MM |
