GE8031i06.05A905

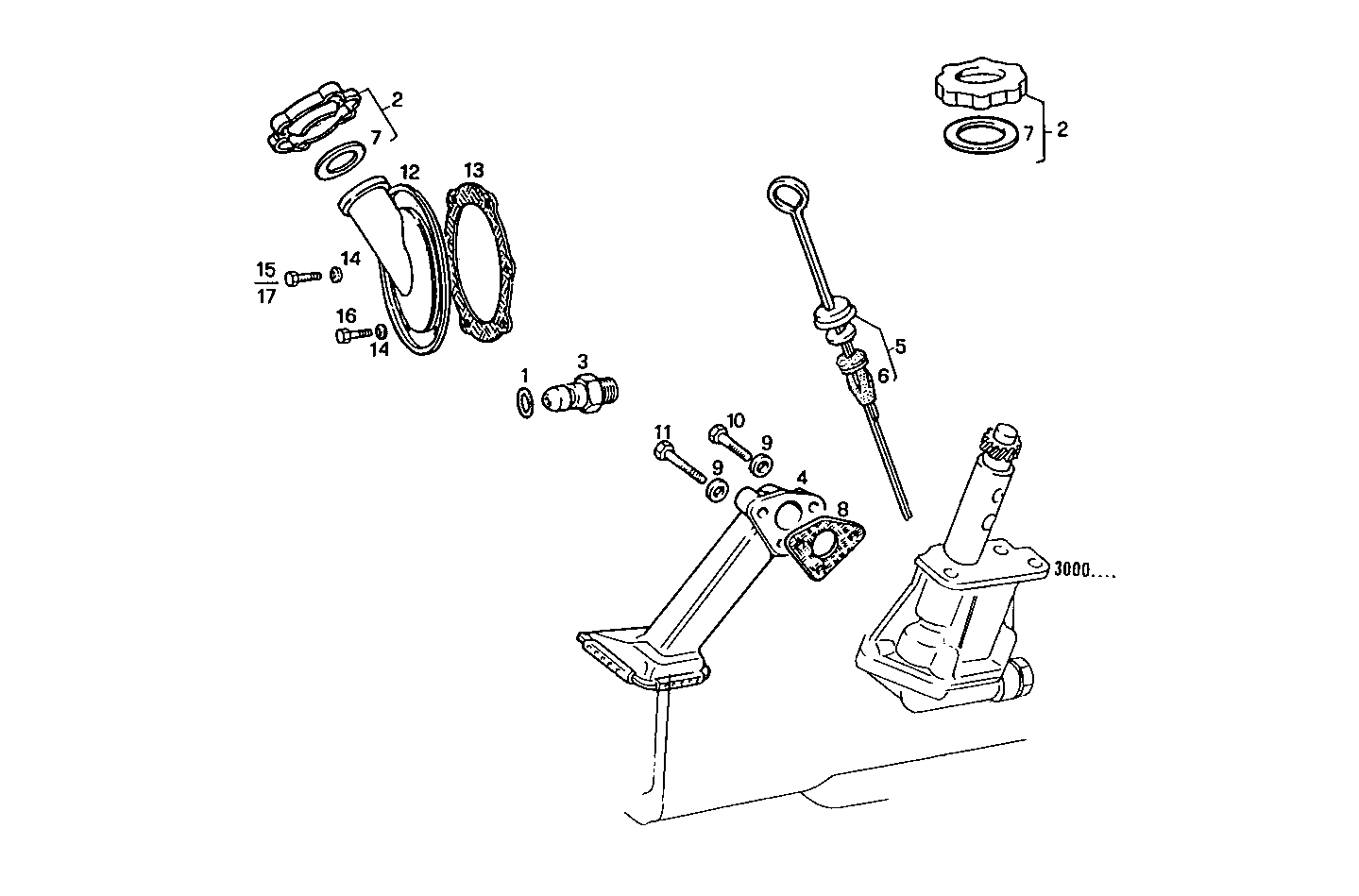

3010.160 LUBE OIL LINES [D 06-1999] [from06-1999]
| Item | Part number | Description |
|---|---|---|
| 1 | 561293 | O-RING |
| 2 | 4232606 | OIL FILLER PLUG ASSY |
| 3 | 4785501 | SCREW CONNECTOR M10X1,25 |
| 4 | 4705910 | SUCTION STRAINER |
| 5 | 4662319 | OIL DIPSTICK ASSY |
| 6 | 4624702 | GASKET |
| 7 | 98418978 | GASKET |
| 8 | 98400788 | FLAT ENGINE GASKET |
| 9 | 17089574 | WASHER Ø8X16 MM |
| 10 | 16044324 | HEXAGON BOLT M8X55 |
| 11 | 16044024 | HEXAGON BOLT M8X40 MM |
| 12 | 4782886 | COVER |
| 13 | 98400781 | FLAT ENGINE GASKET |
| 14 | 17094914 | WASHER 8x16 |
| 15 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 16 | 16606324 | HEXAGON BOLT M8X60 MM |
| 17 | 61315661 | HEXAGON BOLT M8X30 |
