GE8031i06.05A905

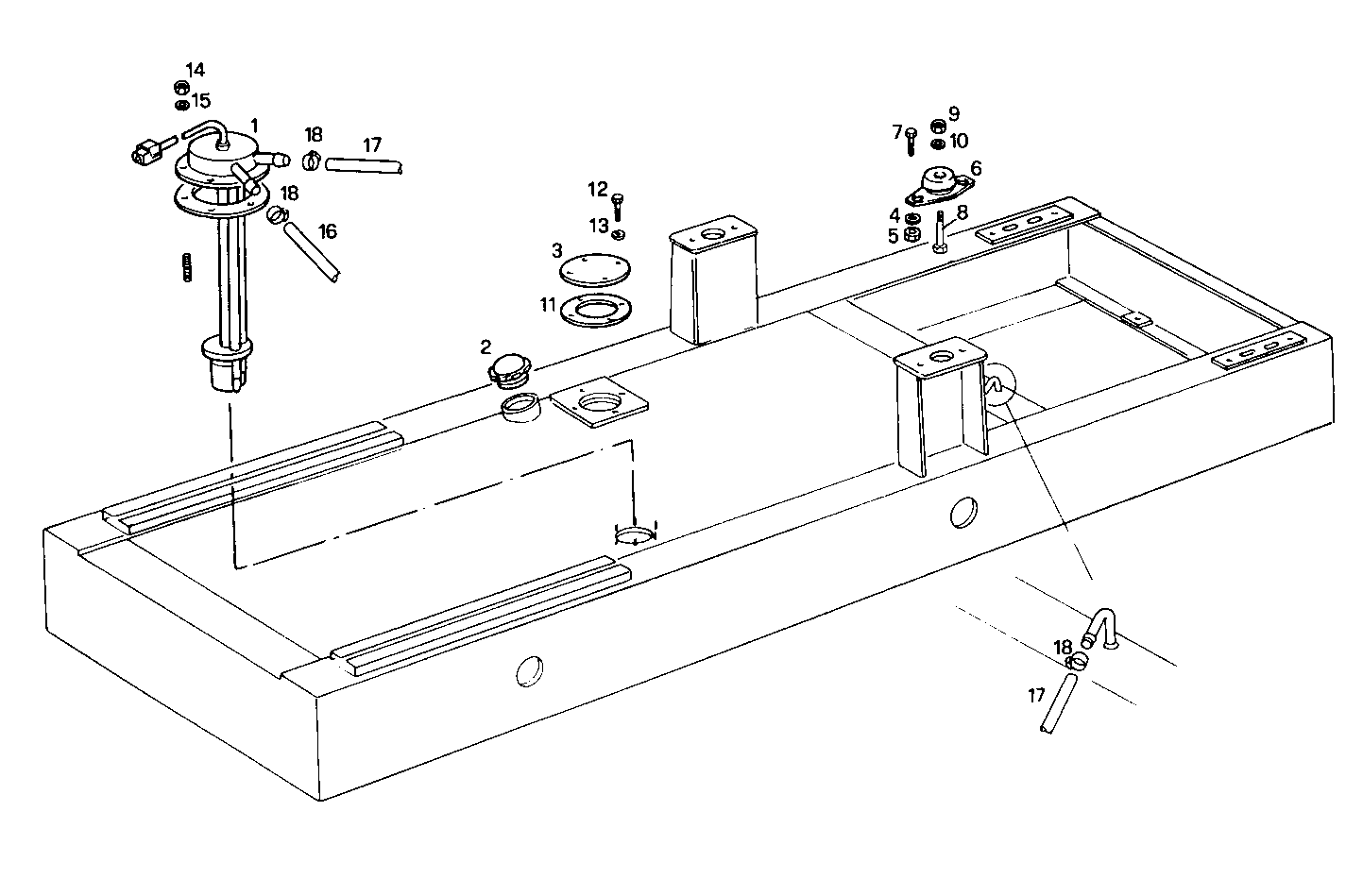

A36710015 SUBBASE FOR GENERATOR UNIT - with fuel tank
| Item | Part number | Description |
|---|---|---|
| 1 | 8025672 | FUEL LEVEL GAUGE |
| 2 | 8018418 | FUEL TANK PLUG |
| 3 | 4686134 | FLANGE |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 17038121 | HEXAGON NUT M10 |
| 6 | 8016784 | RUBBER PAD |
| 7 | 16607624 | SCREW M10X25 |
| 8 | 16614624 | HEXAGON BOLT M16X40 MM |
| 9 | 17038921 | NUT M16X2 |
| 10 | 17092374 | SPRING WASHER Ø16X34X3,6 MM |
| 11 | 8016004 | GASKET |
| 12 | 16605524 | HEXAGON BOLT M8X20 MM |
| 13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 14 | 17037621 | HEXAGON NUT M4 |
| 15 | 17094201 | WASHER |
| 16 | 19053382 | HOSE |
| 17 | 17723082 | BREATHER PIPE |
| 18 | 18087991 | CLIP Ø8/16 MM |
