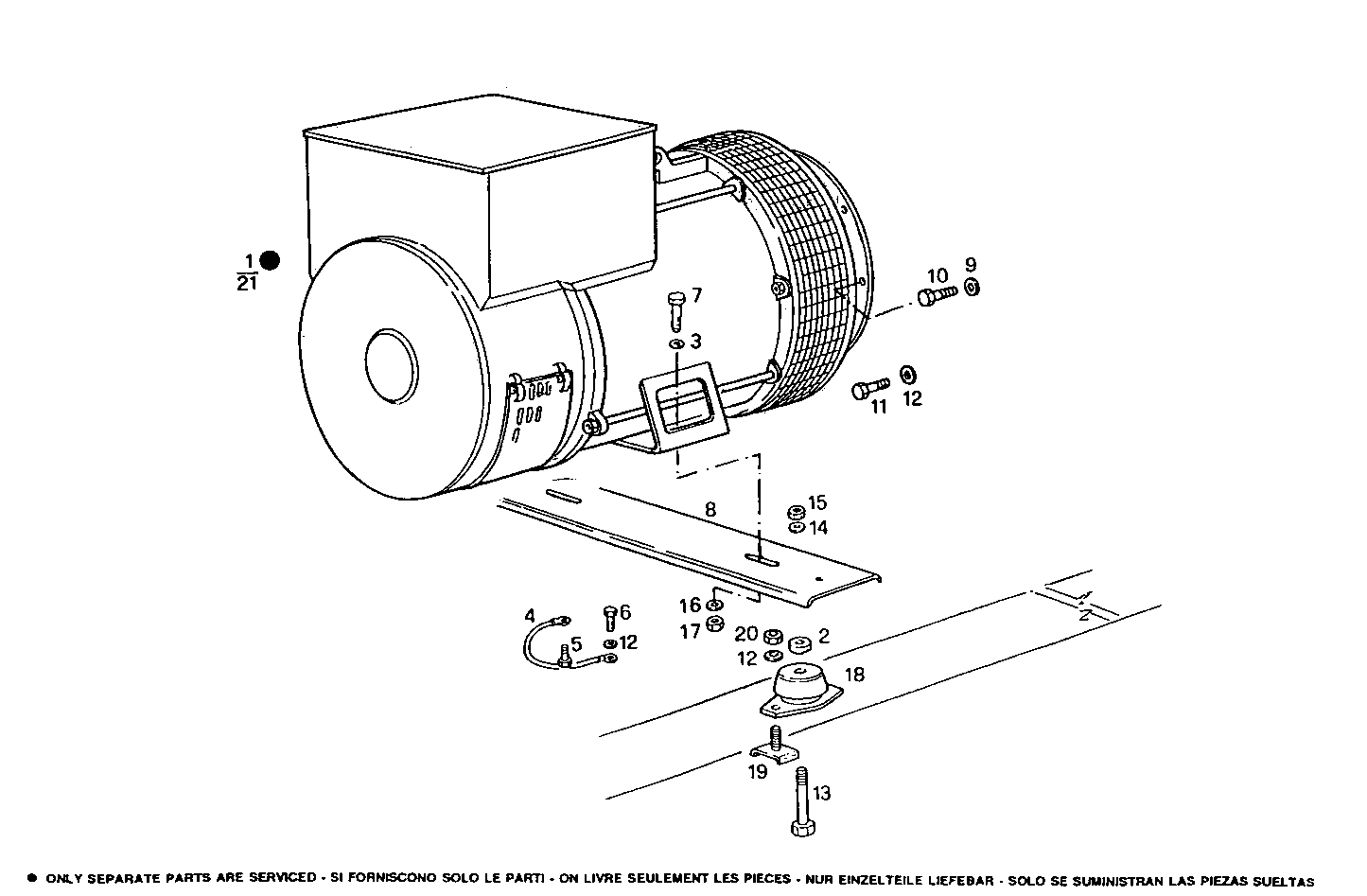

| Item |
Part number |
Description |
|
1 |
8027667 |
ELECTRIC MACHINE LSA 422 S5 50-60HZ [up to 09-200] |
|
2 |
8015486 |
SPACING BAR |
|
3 |
4929369 |
WASHER |
|
4 |
8104707 |
WIRE/CABLE |
|
5 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
6 |
16043124 |
SCREW M8X14 MM |
|
7 |
16610124 |
HEXAGON BOLT M12X40 MM |
|
8 |
8016047 |
SUPPORT |
|
9 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
10 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
11 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
|
12 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
13 |
16614924 |
SCREW M16X55 |
|
14 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
15 |
17038921 |
NUT M16X2 |
|
16 |
17091374 |
SPRING WASHER Ø12X30X3,0 MM |
|
17 |
17038421 |
HEXAGON NUT M12 (8) |
|
18 |
8016784 |
RUBBER PAD |
|
19 |
8016024 |
SCREW |
|
20 |
17038121 |
HEXAGON NUT M10 |
|
21 |
8031054 |
ELECTRIC MACHINE LSA 432 S2 50-60HZ [from 09-200] |
