GE8031i06.05N901

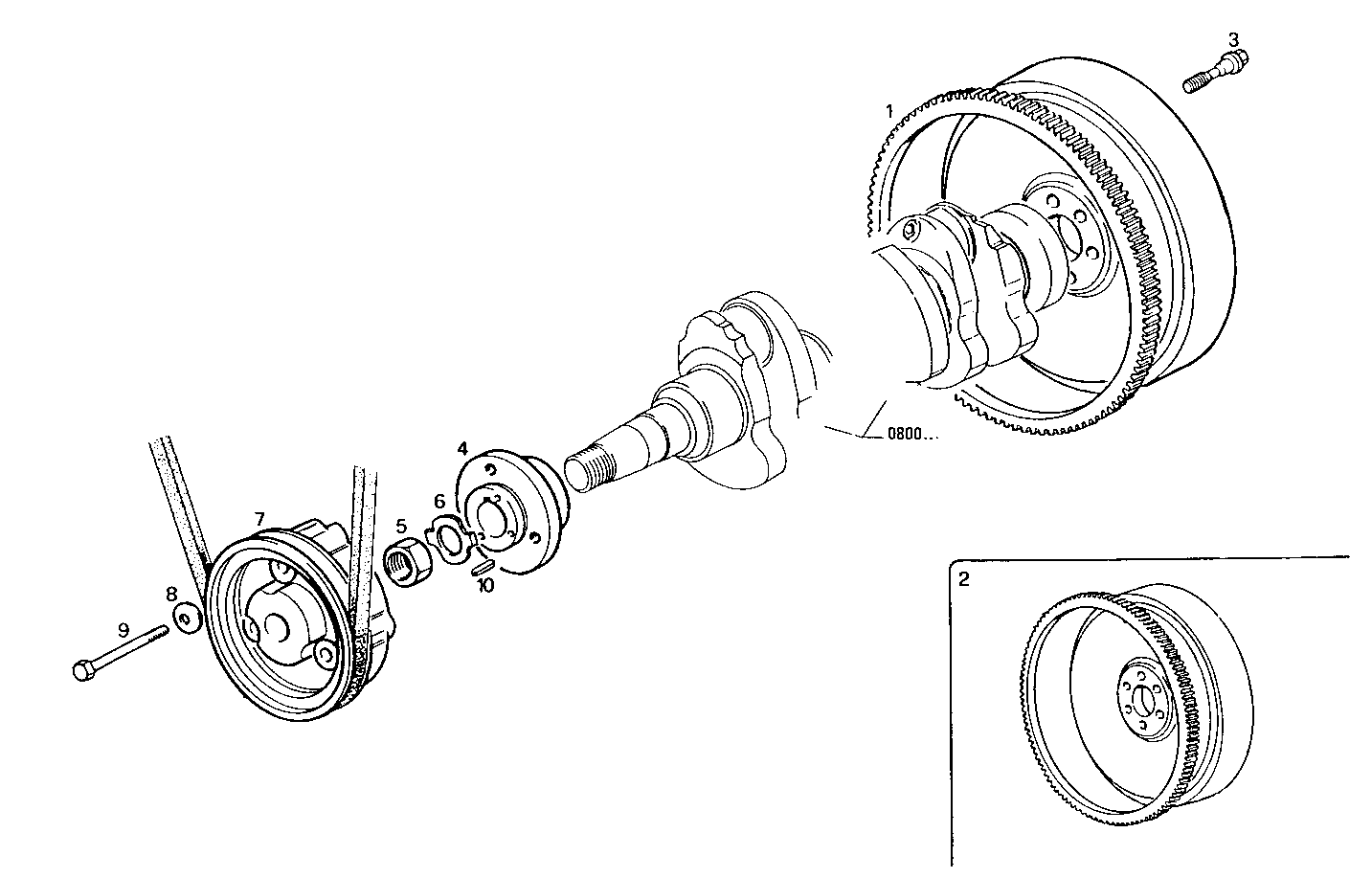

0830.113 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 4862411 | RING GEAR |
| 2 | 500323946 | FLYWHEEL ASSY |
| 3 | 4779122 | HEXAGON BOLT |
| 4 | 4655915 | HUB |
| 5 | 4600189 | NUT |
| 6 | 4600190 | LOCKING PLATE |
| 7 | 98490894 | PULLEY [up to ...] |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 15888734 | HEXAGON BOLT M10X1,25X55 MM |
| 10 | 17254970 | DOWEL PIN Ø5 MM |
