GE8035E15.00R901

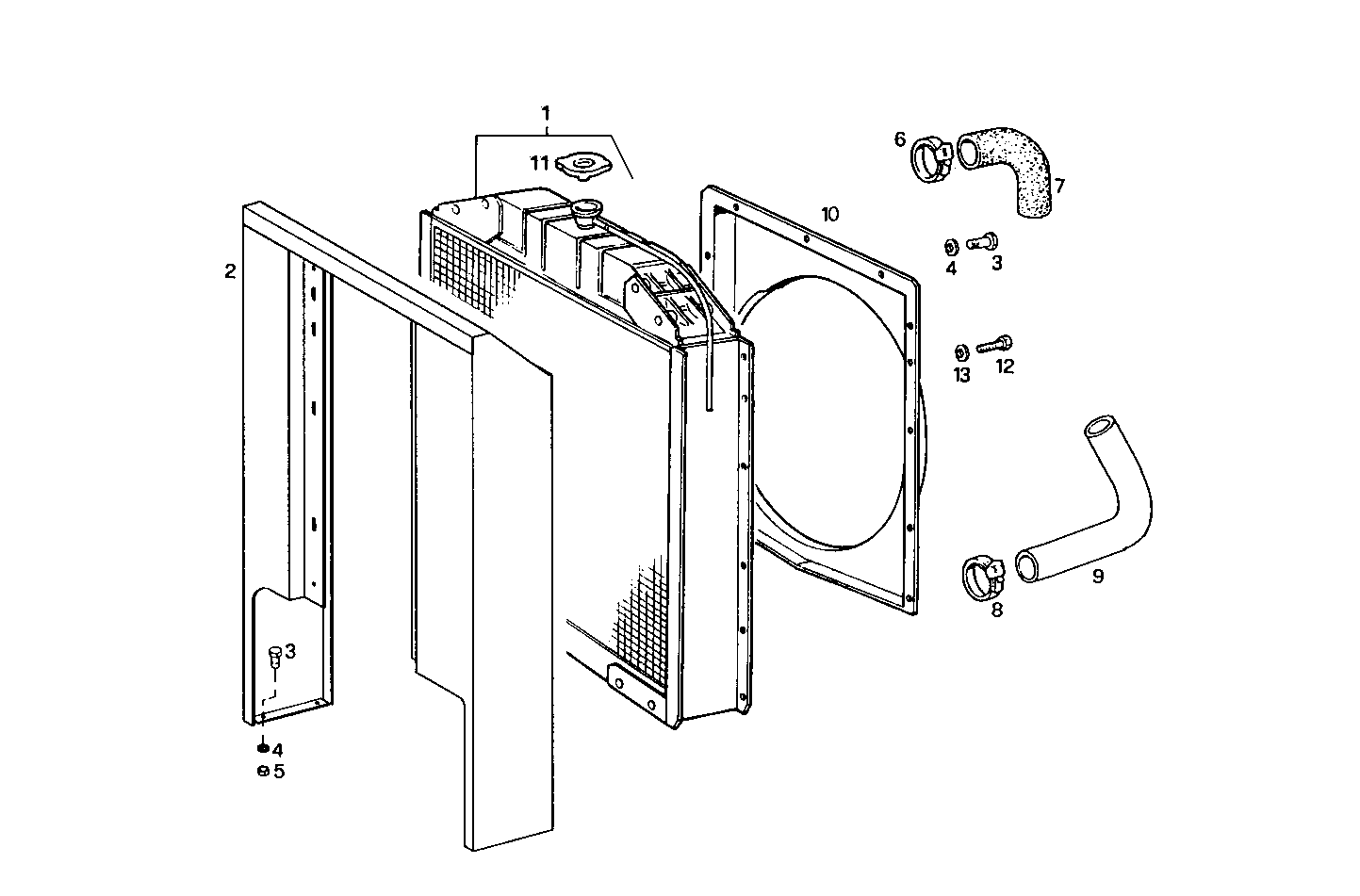

A22010069 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8032099 | WATER RADIATOR ASSY |
| 2 | 8028942 | SUPPORT |
| 3 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 17037821 | HEXAGON NUT M6X1 |
| 6 | 17764891 | CLIP Ø40/60 MM |
| 7 | 8026743 | RUBBER SLEEVE |
| 8 | 17764791 | CLIP Ø32/50 MM |
| 9 | 8031332 | RUBBER SLEEVE |
| 10 | 8104344 | AIR HOOD |
| 11 | 4935488 | RADIATOR PLUG |
| 12 | 10902124 | SCREW M6X14 MM |
| 13 | 17088471 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
