GE8035M06.01A61S

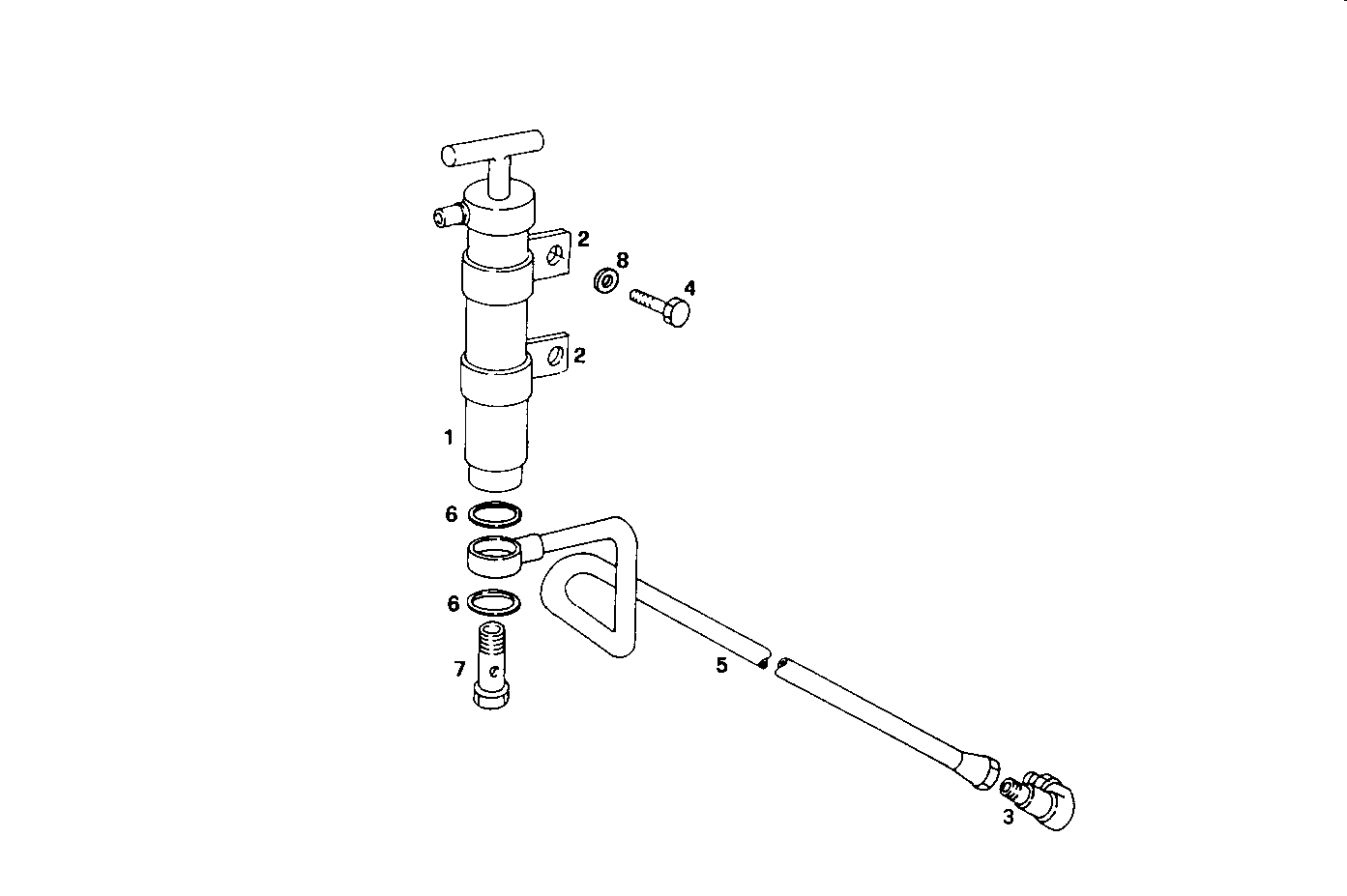

5510.044 OIL OUTLET PUMP

Iveco/FPT OIL OUTLET PUMP

Item Part number Description
1 8019921 HAND PUMP
2 4935081 CLIP
3 4928527 PIPE SOCKET
4 16607424 SCREW M10X16
5 8008871 OIL LINE
6 4858609 WASHER Ø16X22 MM SP=1,5 MM
7 4864084 BANJO BOLT M16X1,5
8 17090174 SPRING WASHER Ø10X20 MM
