GE8035M06.01A61S

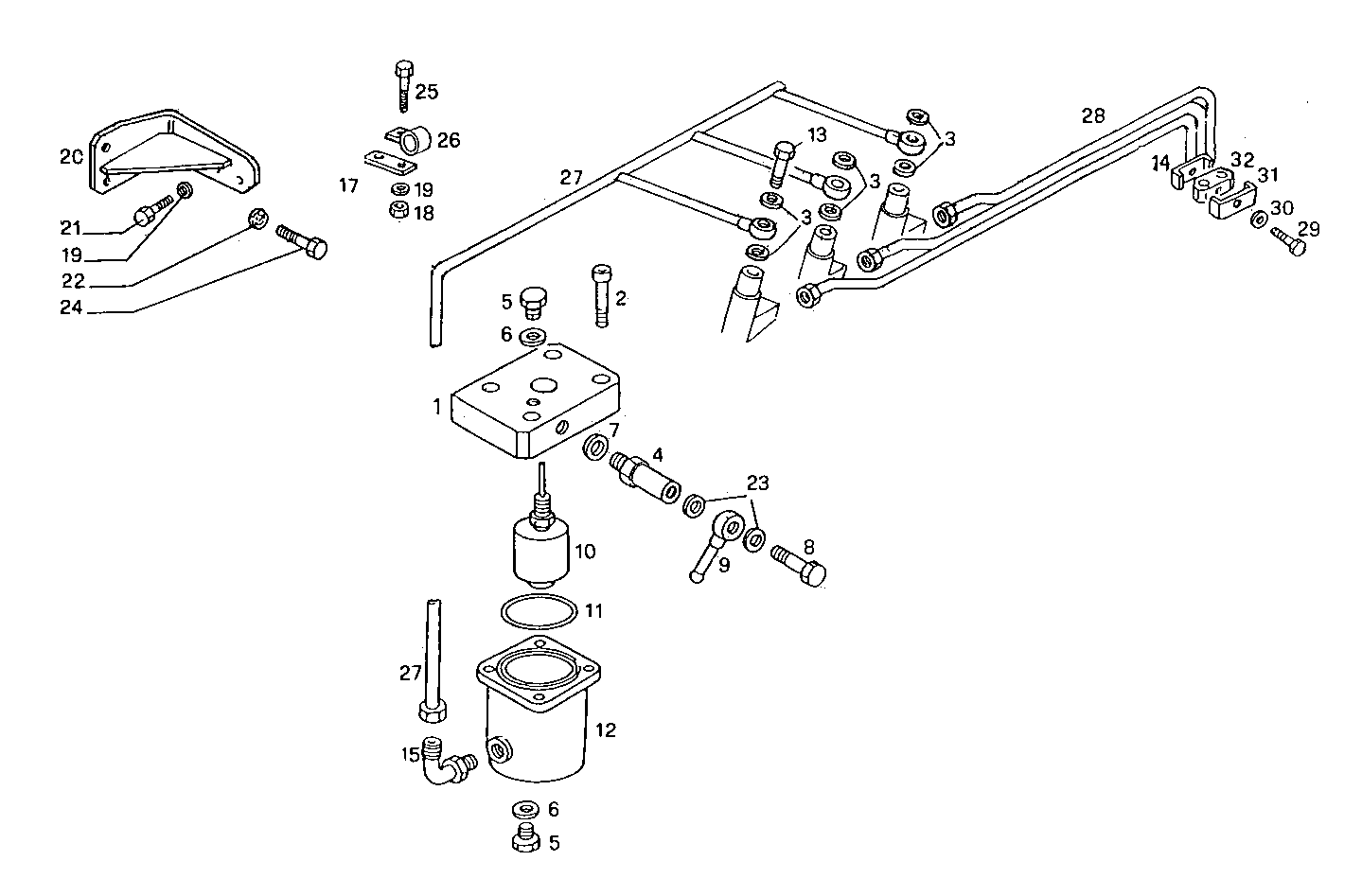

A16010034 DOUBLE WALL INJECTION PIPES

Iveco/FPT DOUBLE WALL INJECTION PIPES

Item Part number Description
1 8020291 DISTRIBUTOR
2 16689424 SOCKET-HEAD SCREW M6X30 MM
3 98474303 WASHER Ø8X14 MM SP=2,3 MM
4 8102465 VALVE
5 16992211 THREADED PLUG M12X1,5
6 4858607 WASHER Ø12X17 MM SP=1,5 MM
7 4858608 SEAL GASKET dia.14x19,5x1,5
8 8020609 SCREW CONNECTOR [from 04-94]
9 98413896 PIPE SOCKET Ø8 MM
10 8102285 INDICATOR
11 17290081 O-RING Ø56,74 MM SP=3,53 MM
12 8026365 TANK
13 4864078 BANJO BOLT M8X1,25
14 4659222 CLAMP
15 8025927 ELBOW COUPLING
17 8107204 RETAINER
18 17152821 NUT M8 [up to 555939]
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 8027312 RETAINER
21 16605524 HEXAGON BOLT M8X20 MM
22 17091174 SPRING WASHER Ø12X24 MM
23 98474308 SEAL GASKET Ø14X22 MM
24 16609824 HEXAGON BOLT M12X1,75X25 MM
25 16605424 SCREW M8X16 MM (8.8)
26 17316490 CLIP
27 8027527 FUEL LINE
28 8028021 INJECTION LINE SET
29 16602324 HEXAGON BOLT M5X25 MM
30 17496434 WASHER Ø5X18X0,8 MM
31 4659221 CLIP
32 4659220 DOWEL
