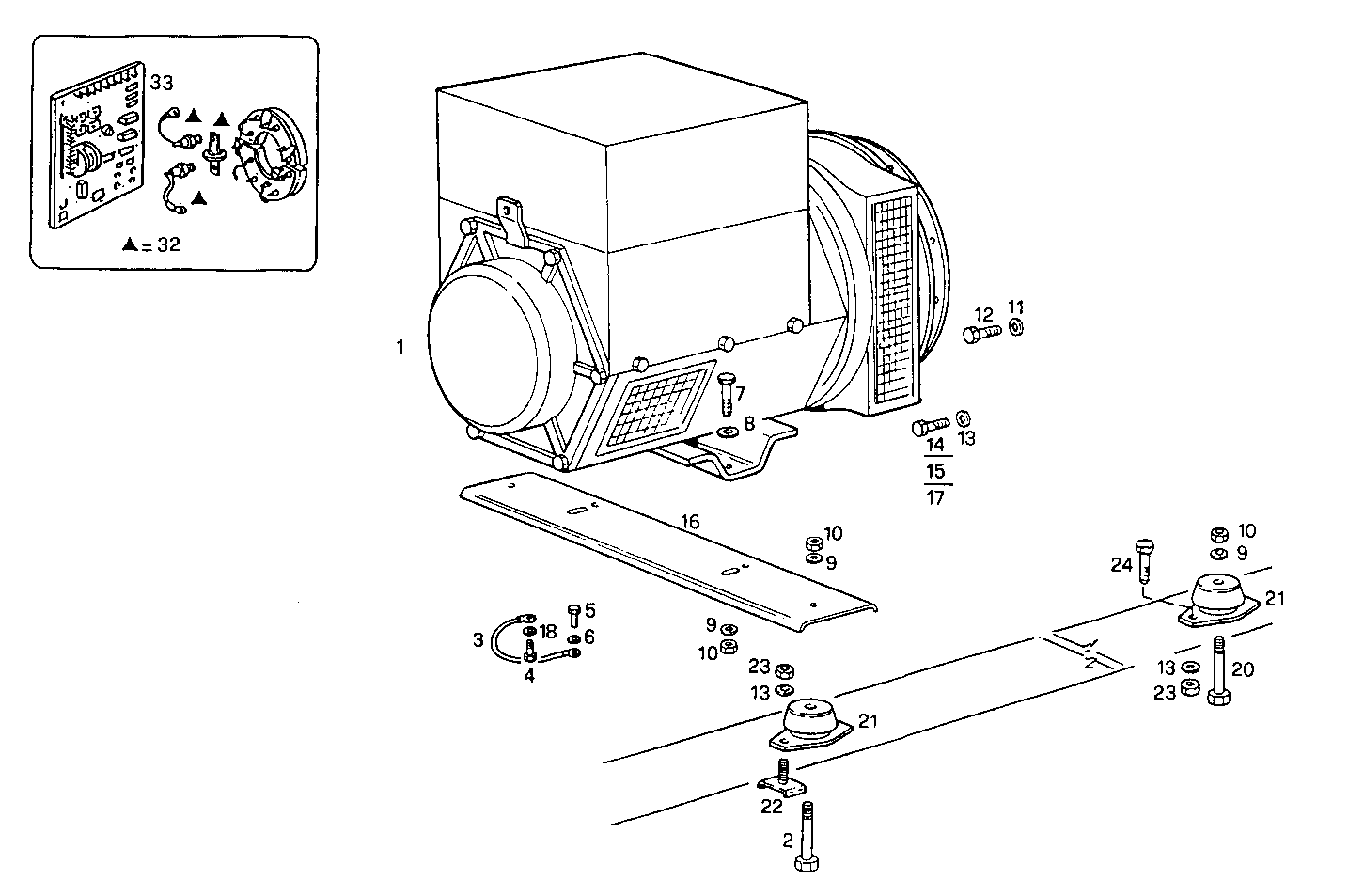

| Item |
Part number |
Description |
|
1 |
8020796 |
ELECTRIC MACHINE UCI 224 C 16 50-60HZ |
|
2 |
16614524 |
HEXAGON BOLT M16X35 MM |
|
3 |
8104707 |
WIRE/CABLE |
|
4 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
5 |
16043124 |
SCREW M8X14 MM |
|
6 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
7 |
16614824 |
SCREW M16X50 |
|
8 |
4929369 |
WASHER |
|
9 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
10 |
17038921 |
NUT M16X2 |
|
11 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
12 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
13 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
14 |
10923621 |
HEXAGON BOLT M10X1,25X35 MM |
|
15 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
|
16 |
8016047 |
SUPPORT |
|
17 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
18 |
17710174 |
WASHER Ø6X11 MM |
|
20 |
16614624 |
HEXAGON BOLT M16X40 MM |
|
21 |
4955094 |
RUBBER PAD |
|
22 |
8015168 |
SCREW |
|
23 |
17037821 |
HEXAGON NUT M6X1 |
|
24 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
32 |
8092769 |
KIT-GENERATOR Stamford |
|
33 |
8106738 |
EL.MACHINE VOLTAGE REGUL. Stamford |
