GE8041i06.55A905

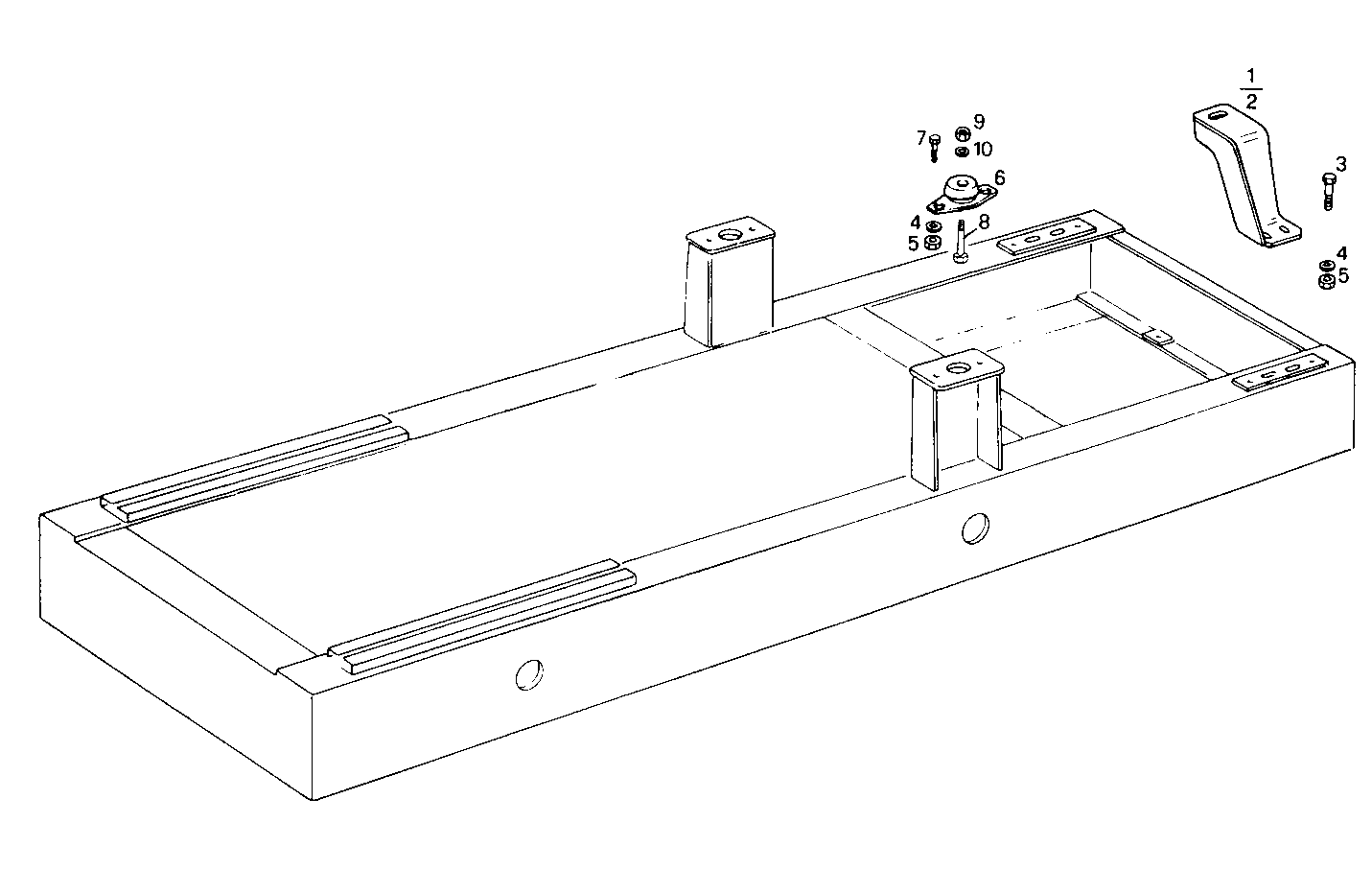

A36610016 SUBBASE FOR GENERATOR UNIT - without fuel tank
| Item | Part number | Description |
|---|---|---|
| 1 | 8023778 | RETAINER LEFT |
| 2 | 8023698 | RETAINER RIGHT |
| 3 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 17038121 | HEXAGON NUT M10 |
| 6 | 8016784 | RUBBER PAD |
| 7 | 16607624 | SCREW M10X25 |
| 8 | 16614624 | HEXAGON BOLT M16X40 MM |
| 9 | 17038921 | NUT M16X2 |
| 10 | 17092374 | SPRING WASHER Ø16X34X3,6 MM |
