GE8045E00.50A011

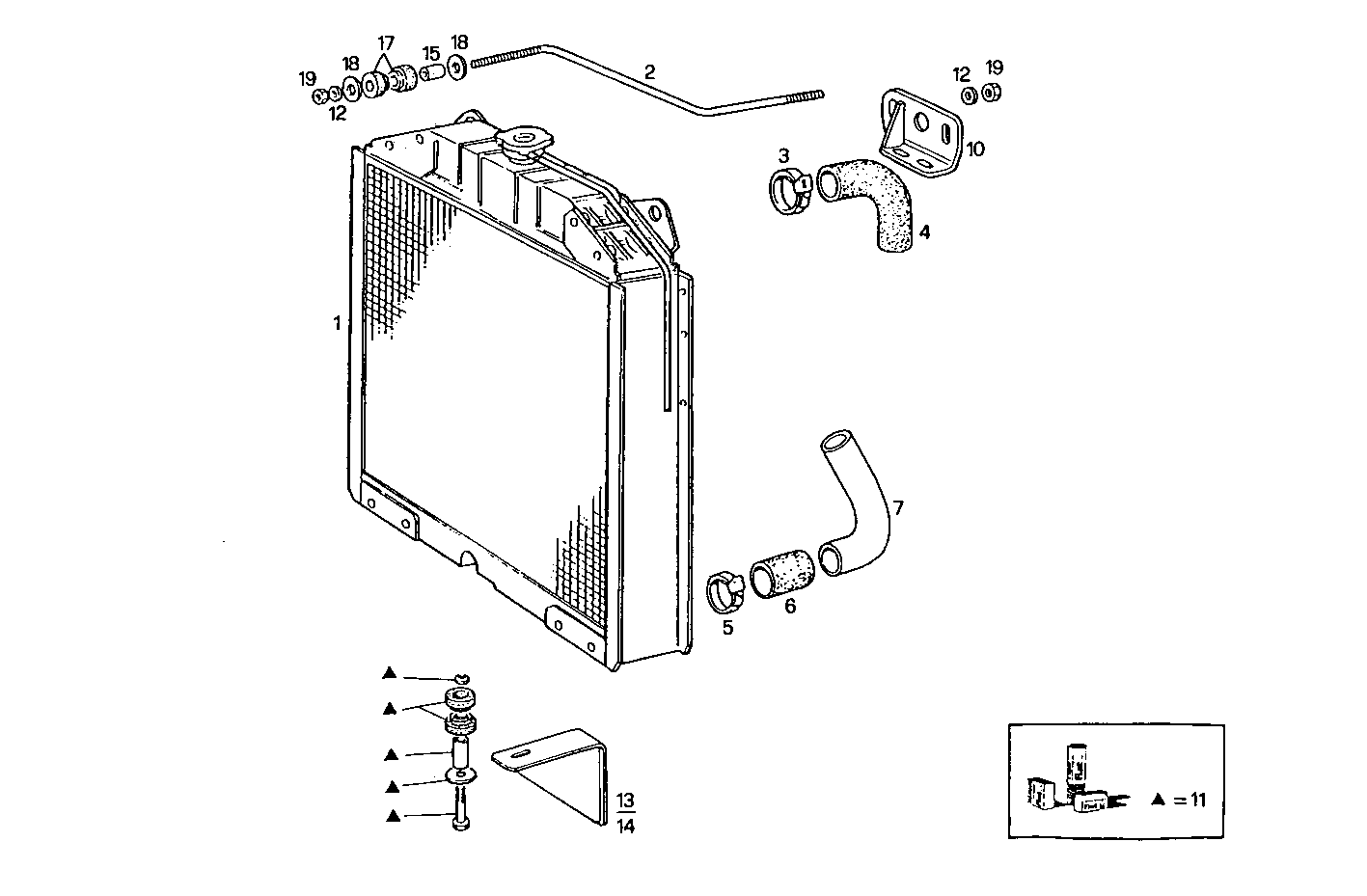

A22010050 RADIATOR FOR SETTING TILL MAX POWER - if compressor not fitted
| Item | Part number | Description |
|---|---|---|
| 1 | 8008817 | WATER RADIATOR ASSY |
| 2 | 8023988 | TIE ROD |
| 3 | 17764891 | CLIP Ø40/60 MM |
| 4 | 8020636 | WATER HOSE |
| 5 | 17764791 | CLIP Ø32/50 MM |
| 6 | 596152 | RUBBER SLEEVE |
| 7 | 8077105 | WATER PIPE |
| 10 | 8023950 | SUPPORT |
| 11 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
| 12 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 13 | 8104250 | SUPPORT RIGHT |
| 14 | 8104274 | SUPPORT LEFT |
| 15 | 8108634 | SPACING BAR |
| 17 | 741569 | RUBBER LUG |
| 18 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 19 | 17037931 | HEXAGON NUT M8X1,25 |
