GE8045M08.00A60S

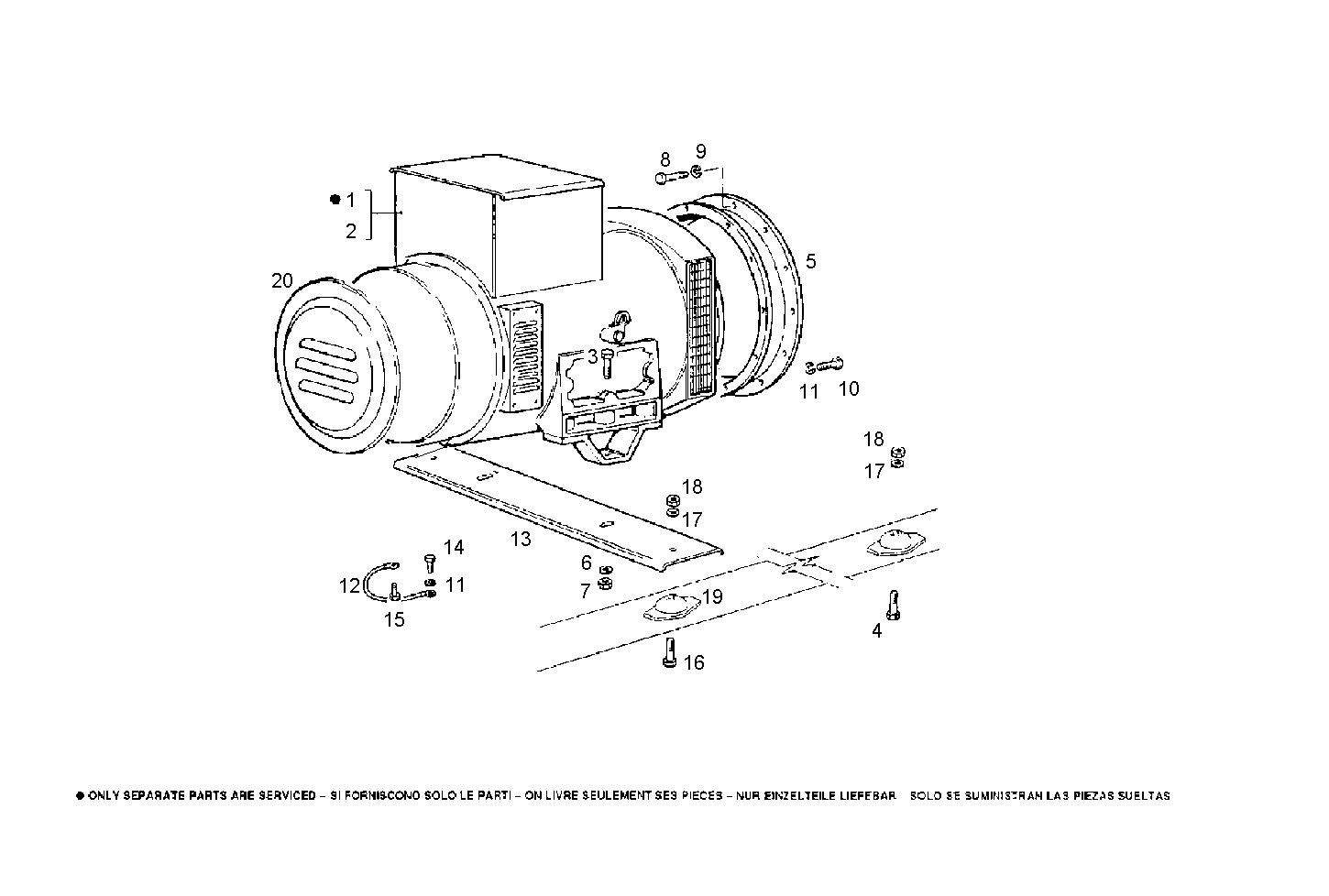

A37030013/01 DOUBLE BEARING ELECTRIC MACHINE - STAMFORD

Iveco/FPT DOUBLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8110924 ELECTRIC MACHINE MHC 234 2B 40KVA 50HZ [up to 04-90]
2 8007606 ELECTRIC MACHINE UCM 224 D23 40KVA 50HZ [from 04-90]
3 11391521 HEXAGON BOLT M16X45 MM
4 15541721 HEXAGON BOLT M12X1,25X110 MM
5 8103018 SUPPORT
6 11194271 WASHER Ø16X32X3,4 MM
7 12164111 HEXAGON NUT M16X1,5
8 11306921 SCREW M10X1,25X30
9 11198371 SPRING WASHER Ø10X20 MM
10 16043821 HEXAGON BOLT M8X30 MM
11 11193871 WASHER Ø8X16X1,4 MM
12 8104358 EARTH WIRE
13 8109131 SUPPORT
14 16043124 SCREW M8X14 MM
15 10902421 HEXAGON BOLT M6X20 MM
16 15541621 HEXAGON BOLT M12X1,25X100 MM
17 11198779 SPRING WASHER Ø13 MM
18 16101511 HEXAGON NUT M12X1,25
19 4955094 RUBBER PAD
20 8093965 EL.MACHINE COVER
