GE8045M08.00A61S

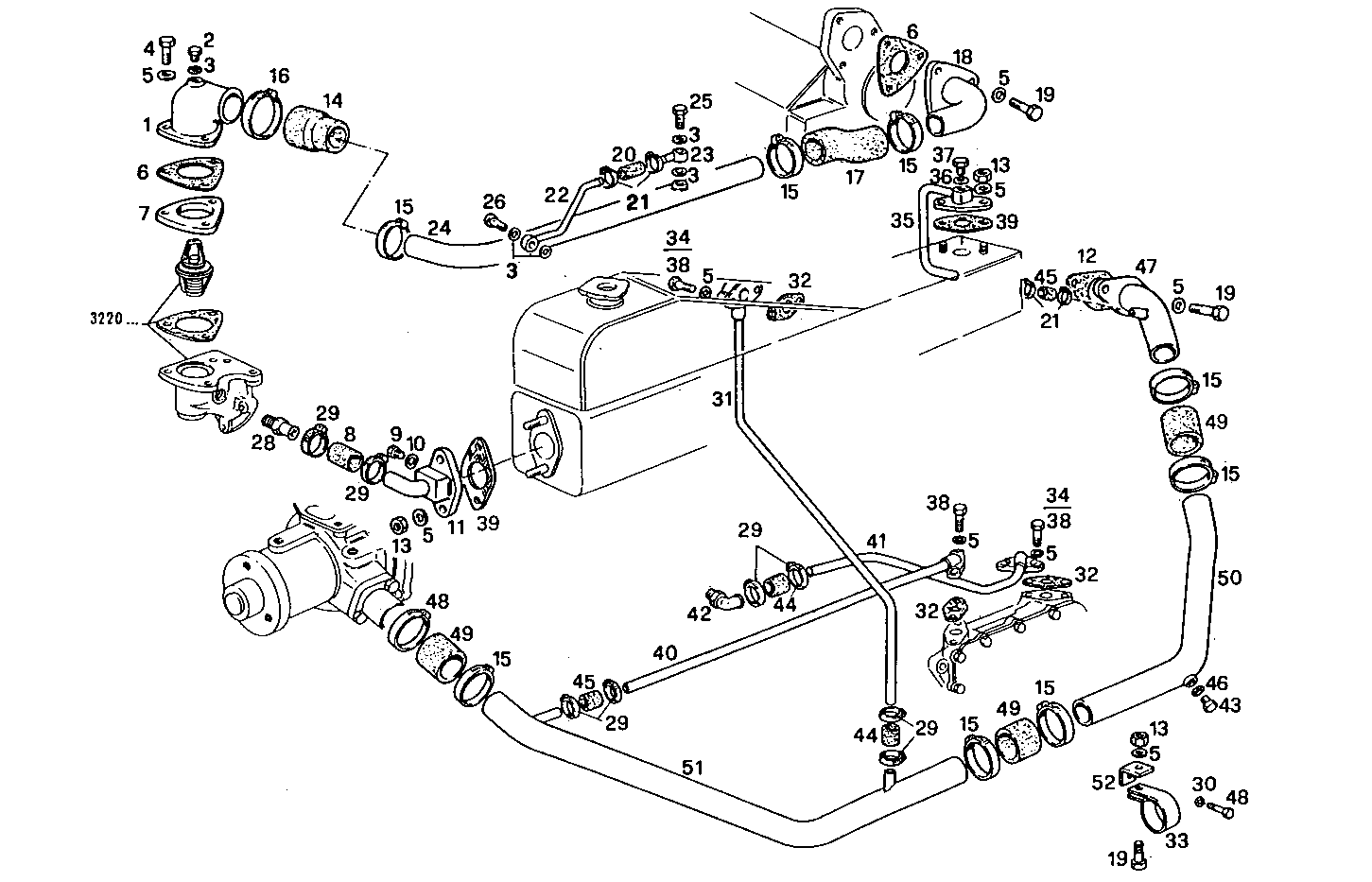

3210.171/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8107202 WATER PIPE
2 16992240 THREADED PLUG M12X1,5
3 4858607 WASHER Ø12X17 MM SP=1,5 MM
4 16605734 HEXAGON BOLT M8X30 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 98420754 FLAT ENGINE GASKET SP=0,5 MM
7 8107226 SPACING BAR
8 98418717 WATER HOSE Ø18 MM
9 16992340 THREADED PLUG M14X1,5
10 4858608 SEAL GASKET dia.14x19,5x1,5
11 8107731 WATER PIPE
12 8009640 GASKET
13 17037931 HEXAGON NUT M8X1,25
14 98447313 WATER HOSE Ø45 MM/Ø38 MM
15 17764793 CLIP Ø32/50 MM
16 17764893 CLIP Ø40/60 MM
17 4927830 RUBBER SLEEVE
18 8107720 PIPE SOCKET
19 16605624 HEXAGON BOLT M8X25 MM (8.8)
20 4927825 WATER HOSE
21 18088392 CLIP Ø16/25 MM
22 8011350 WATER PIPE
23 4722869 SWIVEL COUPLING
24 8111183 WATER PIPE
25 8009696 SCREW CONNECTOR M12X1,5X25
26 4864082 BANJO BOLT M12X1,5X25 MM
28 4760312 THREADED UNION
29 17764593 CLIP Ø20/32 MM
30 17091074 WASHER Ø12X24X2,8 MM
31 8006085 WATER PIPE [from 05-95]
32 4853970 FLAT ENGINE GASKET
33 4936741 CLIP
34 16605524 HEXAGON BOLT M8X20 MM
35 8107733 WATER PIPE
36 4858609 WASHER Ø16X22 MM SP=1,5 MM
37 16992440 THREADED PLUG M16X1,5
38 16605824 HEXAGON BOLT M8X35 MM
39 4918835 GASKET
40 4788181 WATER PIPE
41 4760316 WATER PIPE
42 98418647 PIPE SOCKET
43 16992140 PLUG M10X1
44 17737687 WATER HOSE
45 98425606 WATER HOSE
46 4858606 GASKET Ø10X14X1 MM
47 8107434 WATER PIPE
48 16609824 HEXAGON BOLT M12X1,75X25 MM
49 17742887 RUBBER SLEEVE
50 8006109 WATER PIPE
51 8006084 WATER PIPE [from 05-95]
52 8108979 RETAINER
