GE8045M08.00A61S

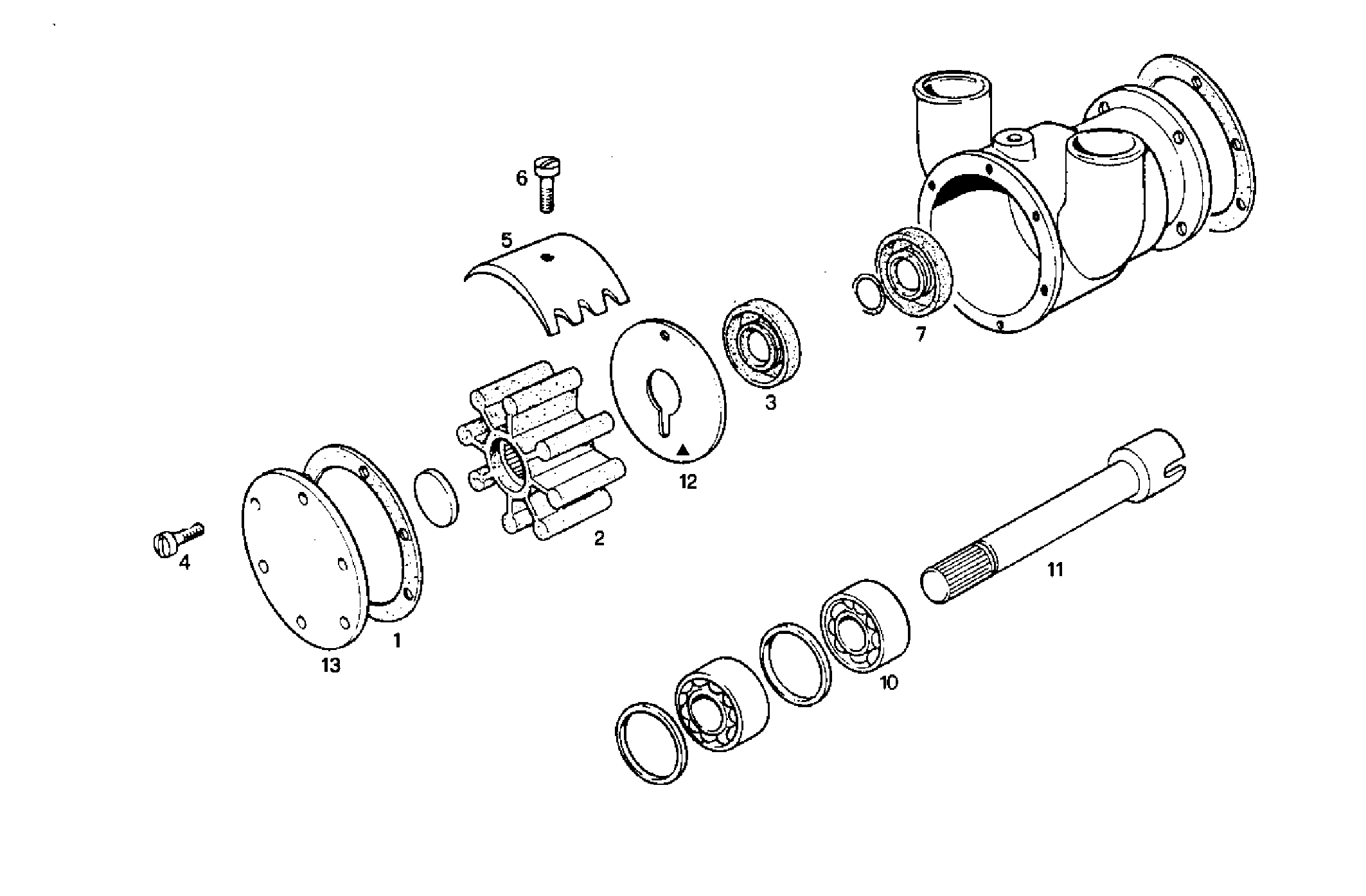

3380.024/02 SEA WATER PUMP - JABSCO
| Item | Part number | Description |
|---|---|---|
| 1 | 8108230 | GASKET |
| 2 | 4913429 | SEA WATER PUMP IMPELL. |
| 3 | 8093752 | WASHER |
| 4 | 4914930 | SCREW |
| 5 | 8108233 | RETAINING CAM |
| 6 | 4914931 | SCREW |
| 10 | 8108240 | DRIVE BEARING |
| 11 | 8093753 | SHAFT |
| 12 | 8108235 | WASHER |
| 13 | 4914923 | COVER |
