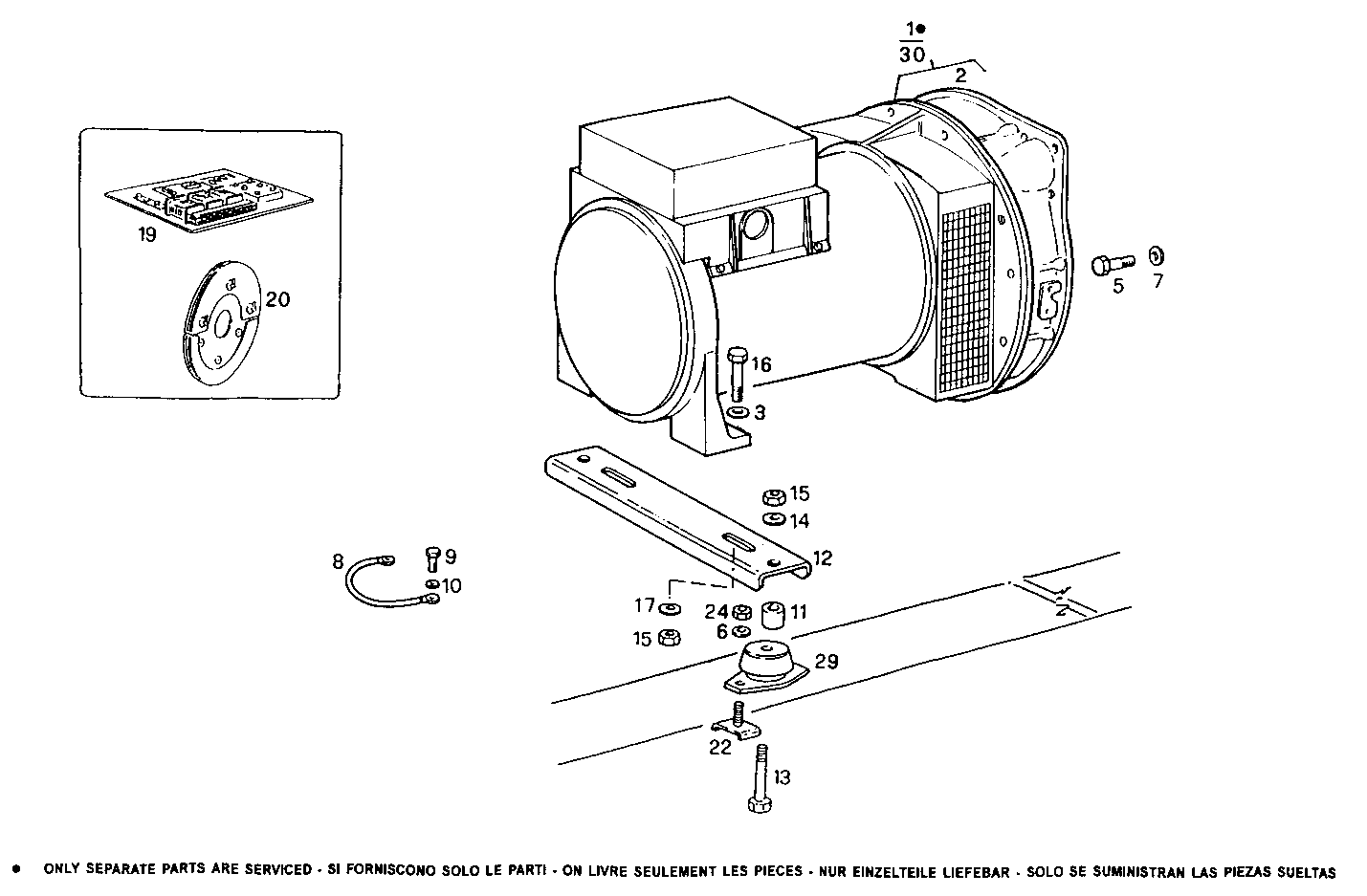

| Item |
Part number |
Description |
|
1 |
8026033 |
ELECTRIC MACHINE ENC 31 2L/4 50-60HZ [up to 03-99] |
|
2 |
8025397 |
COUPLING BELL |
|
3 |
4929369 |
WASHER |
|
5 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
6 |
17090974 |
SPRING WASHER Ø12X24 MM |
|
7 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
8 |
8110852 |
EARTH WIRE |
|
9 |
16605424 |
SCREW M8X16 MM (8.8) |
|
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
11 |
8026585 |
SPACING BAR |
|
12 |
8015167 |
SUPPORT |
|
13 |
16615924 |
SCREW |
|
14 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
15 |
17038921 |
NUT M16X2 |
|
16 |
16614924 |
SCREW M16X55 |
|
17 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
|
19 |
8091776 |
EL.MACHINE VOLTAGE REGUL. MECC-ALTE |
|
20 |
8091775 |
EL.MACHINE DIODE ASSY |
|
22 |
8016024 |
SCREW |
|
24 |
17038121 |
HEXAGON NUT M10 |
|
29 |
4911960 |
RUBBER PAD |
|
30 |
8027358 |
ELECTRIC MACHINE ECO 32 2L/4 50-60HZ [from 03-99] |
