GE8061Si06.05N970

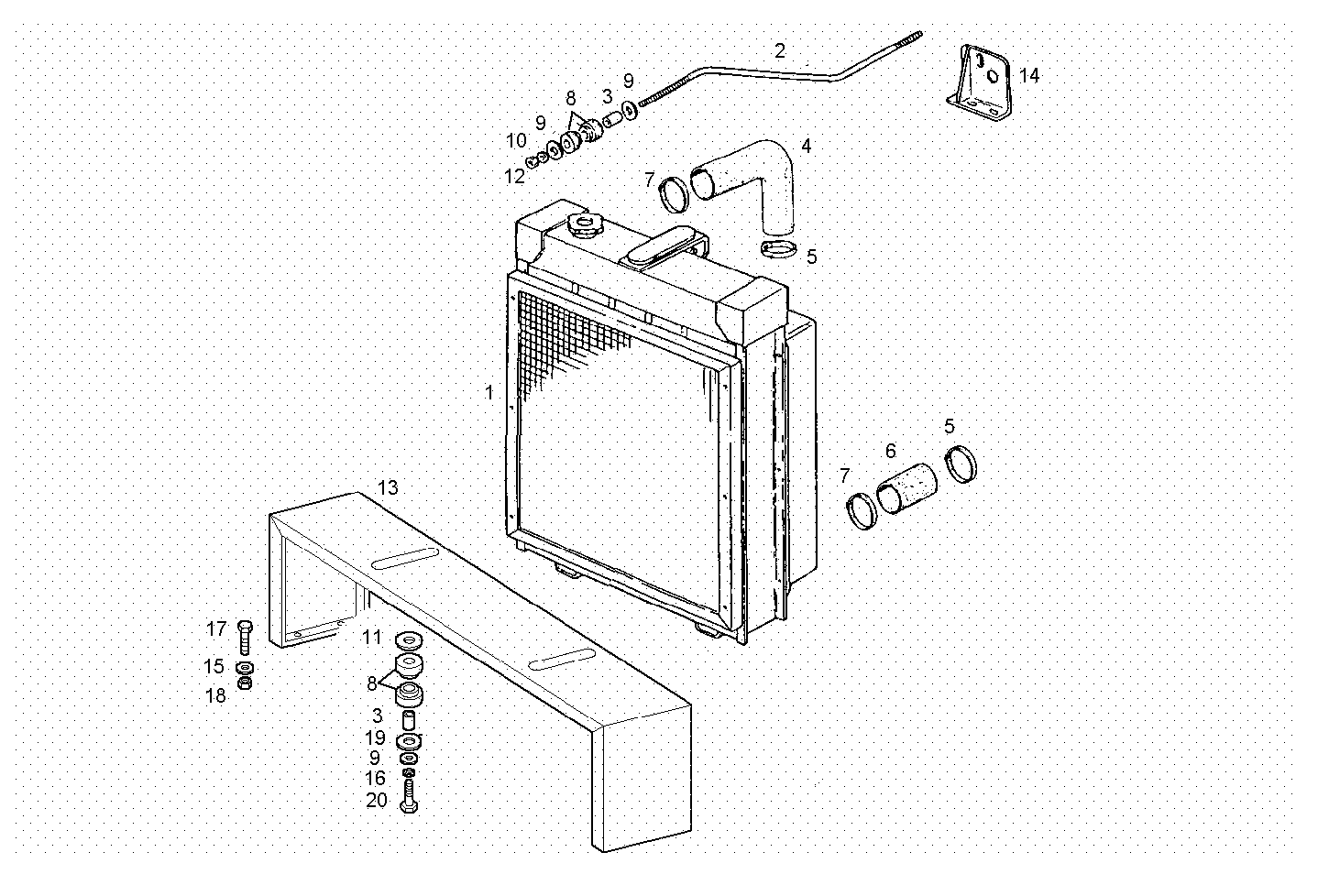

A22010075 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8038540 WATER RADIATOR OPT.
1 8020420 WATER RADIATOR OPT.
2 8024388 TIE ROD
3 8108634 SPACING BAR
4 8024770 RUBBER SLEEVE
5 17764892 PIPE CLIP Ø40-60 MM
6 4951318 RUBBER SLEEVE Ø45/50 MM
7 17764991 CLIP Ø50/70 MM
8 741569 RUBBER LUG
9 741570 WASHER Ø10X17 MM SP=2,3
10 17091374 SPRING WASHER Ø12X30X3,0 MM
11 17038131 HEXAGON NUT M10
12 17038425 HEXAGON NUT M12 (8)
13 503110171 SUPPORT
14 8020521 RETAINER
15 17088474 WASHER Ø6X12 MM
16 17096050 WASHER Ø20X37 MM
17 16603624 HEXAGON BOLT M6X16 MM (8.8)
18 17037821 HEXAGON NUT M6X1
19 17090174 SPRING WASHER Ø10X20 MM
20 16608525 HEXAGON BOLT M10X1,5X70 MM (8.8)
