GE8061Si16.05A955

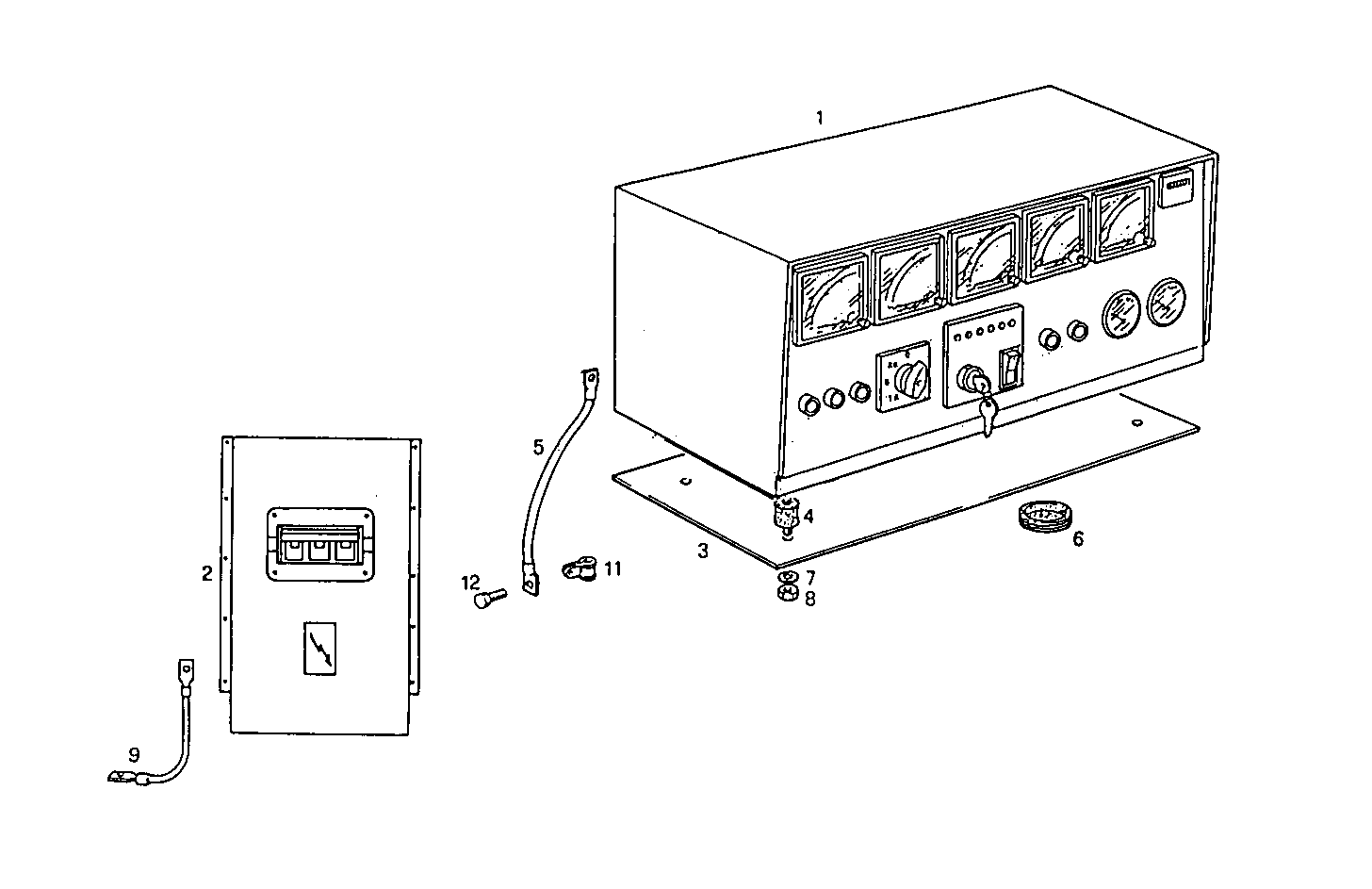

A60310003 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD
| Item | Part number | Description |
|---|---|---|
| 1 | 8019302 | CONTROL BOARD ASSY 380V 50-60HZ |
| 2 | 8007017 | SWITCH 125A |
| 3 | 8019139 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8110852 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 8104707 | WIRE/CABLE |
| 11 | 17314890 | CLIP |
| 12 | 16605524 | HEXAGON BOLT M8X20 MM |
