GE8061Si16.05A956

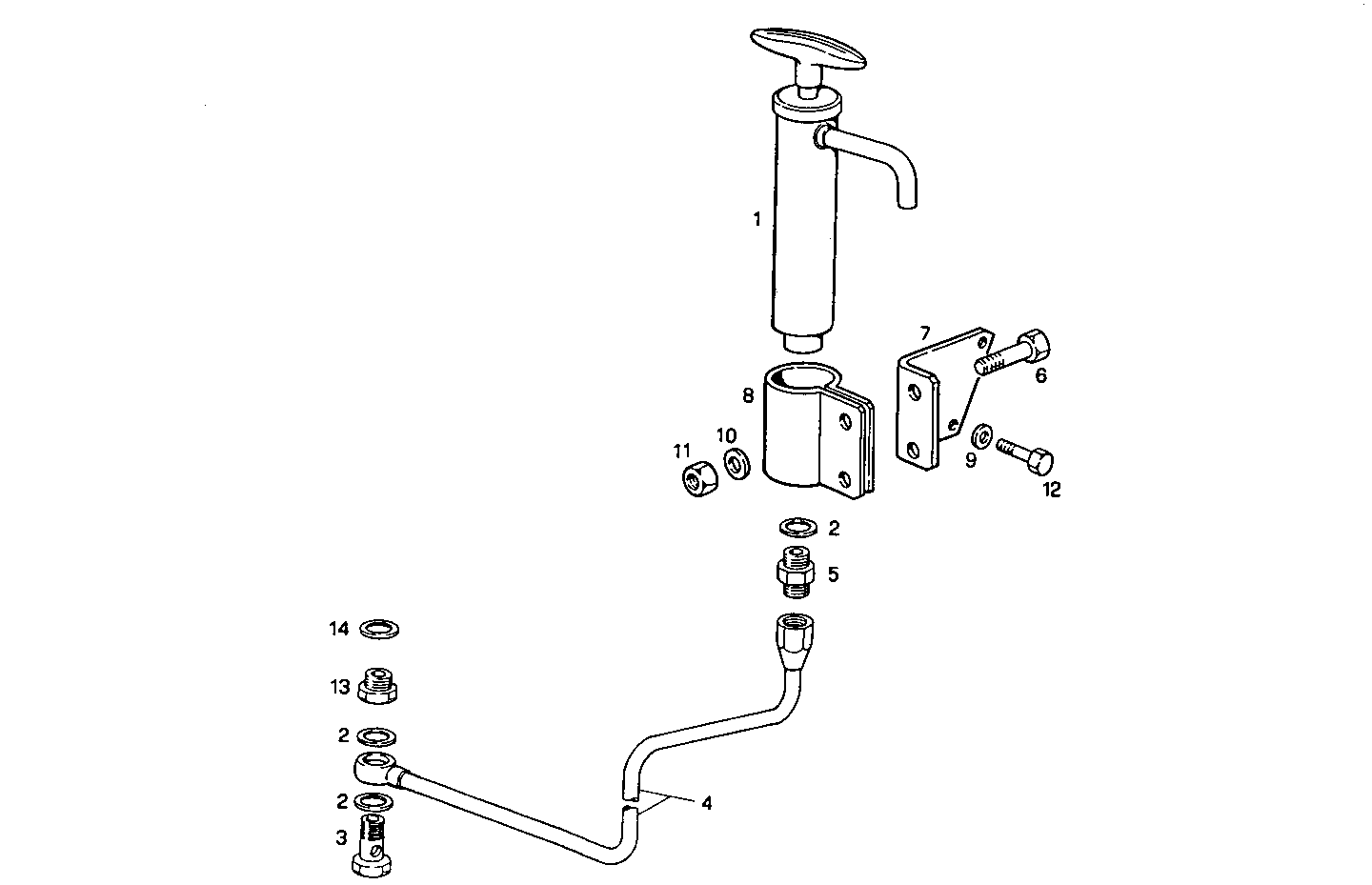

A49010030 OIL DRAIN PUMP - left side

Iveco/FPT OIL DRAIN PUMP

Item Part number Description
1 8019921 HAND PUMP
2 4858609 WASHER Ø16X22 MM SP=1,5 MM
3 4864084 BANJO BOLT M16X1,5
4 8015287 OIL LINE
5 16500311 PIPE SOCKET M16X1,5/M18X1,5
6 16605524 HEXAGON BOLT M8X20 MM
7 4936469 RETAINER
8 4928851 CLIP
9 17091074 WASHER Ø12X24X2,8 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 17037931 HEXAGON NUT M8X1,25
12 16609824 HEXAGON BOLT M12X1,75X25 MM
13 4919578 PIPE SOCKET M22X1,5/M16X1,5
14 10263460 WASHER Ø22X28X1,5 MM
